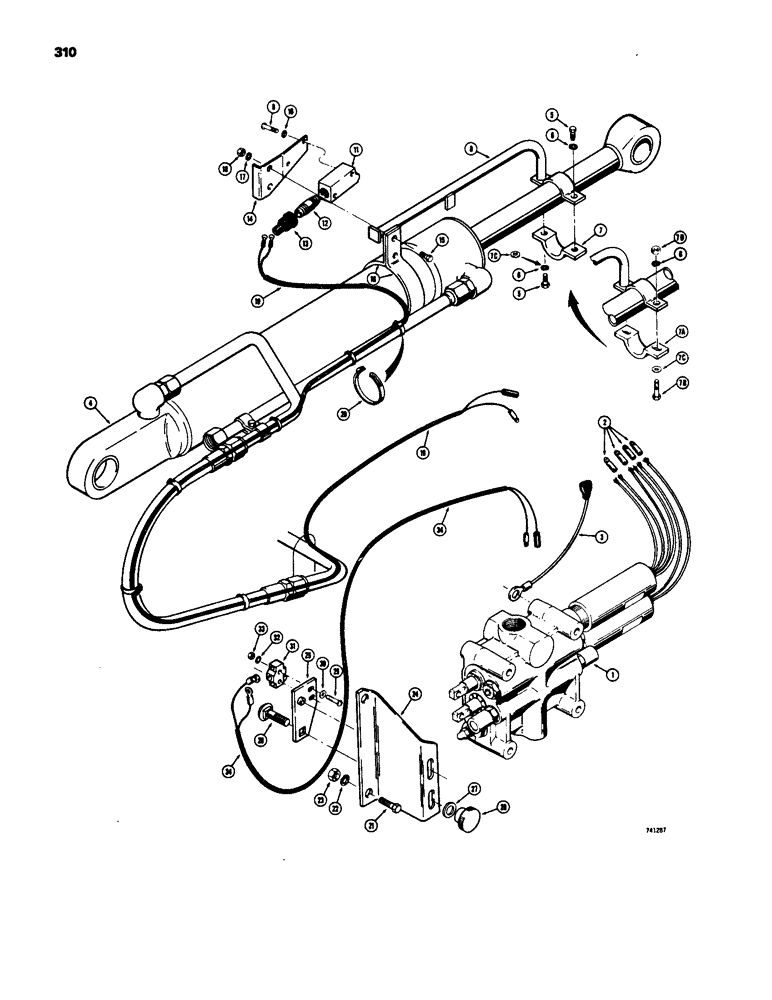

Запчасти Case W18 (310) - LOADER POSITIONING CONTROLS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - loader control (See Figures 306 and 308 for proper valve

1шт.

2

R18653

TERMINAL STRIP

CONNECTOR - wire, male bullet (1/2" long) If used

4шт.

2

L10051

TERMINAL CONNECTOR,Male

CONNECTOR - wire, bullet (1" long) If used Male

4шт.

3

L50380

ELECTRICAL WIRE

WIRE - ground, solenoid

1шт.

4

REF

INSTRUCTION

CYLINDER - hydraulic, R.H. tilt (4" I.D. x 28.35" stroke) Parts list page 299 and 299B, loader bucket, Serial Range: return-dig

1шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Loader bucket return-to-dig Hex, 3/8"-16 x 3/4", G5, Full Thd

1-2шт.

6

92-6

LOCK WASHER,3/8"

loader bucket return to dig 3/8"

1-2шт.

7

L48588

CLAMP

- indicator retaining (When stock is exhausted, order L55773 clamp for service), loader bucket, Serial Range: return-dig

1шт.

7a

L55773

CLAMP

- indicator retaining, loader bucket, Serial Range: return-dig

1шт.

7b

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Loader bucket return-to-dig Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

7c

195-25

WASHER,3/8"

- plain (), loader bucket return to dig 3/8"

1шт.

7d

25-106

NUT,3/8"-16, G5

- 3/8" - 16 NC, loader bucket return to dig

1шт.

8

L48591

INDICATOR

- return-to-dig, loader bucket

1шт.

9

182-145

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- machine, pan head (#10 - 32 NF x 1/2"), loader bucket return to dig

2шт.

10

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, , Loader bucket return-to-dig Ext Tooth, #10

2шт.

11

L43856

SWITCH

ASSEMBLY - control, return to dig, loader bucket

1шт.

NSS

NOT SOLD SEPARAT

HOUSING - switch (Not illustrated), loader bucket, Serial Range: return-dig

1шт.

L33933

KIT

- repair, total switch (Not illustrated), loader bucket return to dig, includes lever assy., cover, gasket and switch

1шт.

L30628

LEVER

ASSEMBLY - switch (Not illustrated), loader bucket, Serial Range: return-dig

1шт.

L33935

COVER - access, switch module (Not illustrated), loader bucket, Serial Range: return-dig

1шт.

L33934

GASKET - cover (Not illustrated), loader bucket, Serial Range: return-dig

1шт.

L30627

SWITCH - module, return to dig (Not illustrated), loader bucket

1шт.

12

221-1185

FITTING

NIPPLE - pipe (1/2" NPT), loader bucket, Serial Range: return-dig

1шт.

13

G46803

BOOT

- switch production, loader bucket, Serial Range: return-dig

1шт.

14

L48624

BRACKET

- switch mounting (Standard bucket), loader, Serial Range: return-dig

1шт.

14

L51559

BRACKET

- switch mounting (Drott bucket), loader, Serial Range: return-dig

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2", loader bucket return to dig

3шт.

16

L48625

CLAMP

- switch bracket mounting, loader bucket, Serial Range: return-dig

2шт.

17

92-6

LOCK WASHER,3/8"

loader bucket return to dig 3/8"

3шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), loader bucket return to dig

3шт.

19

L50381

HARNESS

- return-to-dig wiring, loader bucket

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - harness retaining, nylon, loader bucket, Serial Range: return-dig

6шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

24

L47276

SUPPORT

- switch mounting bracket

1шт.

25

L47799

BRACKET

- switch mounting (Used before tractor Sn. 9115403

1шт.

25

L57566

SUPPORT

BRACKET - switch mounting (Used tractor Sn. 9115403 and after)

1шт.

26

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

27

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

28

A42918

KNOB

- height control

1шт.

29

182-52

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

- machine, pan head (#6 - 32 NC x 1-1/4")

2шт.

30

195-10

WASHER,#8

2шт.

31

L54683

SWITCH

- control, bucket height control

1шт.

32

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, Ext Tooth, #6

2шт.

33

129-15

NUT,#6-32

2шт.

34

L50382

HARNESS

- bucket height control (Used before tractor Sn. 9115403)

1шт.

34

L57525

HARNESS

- bucket height control (Used tractor Sn. 9115403 and after)

1шт.
