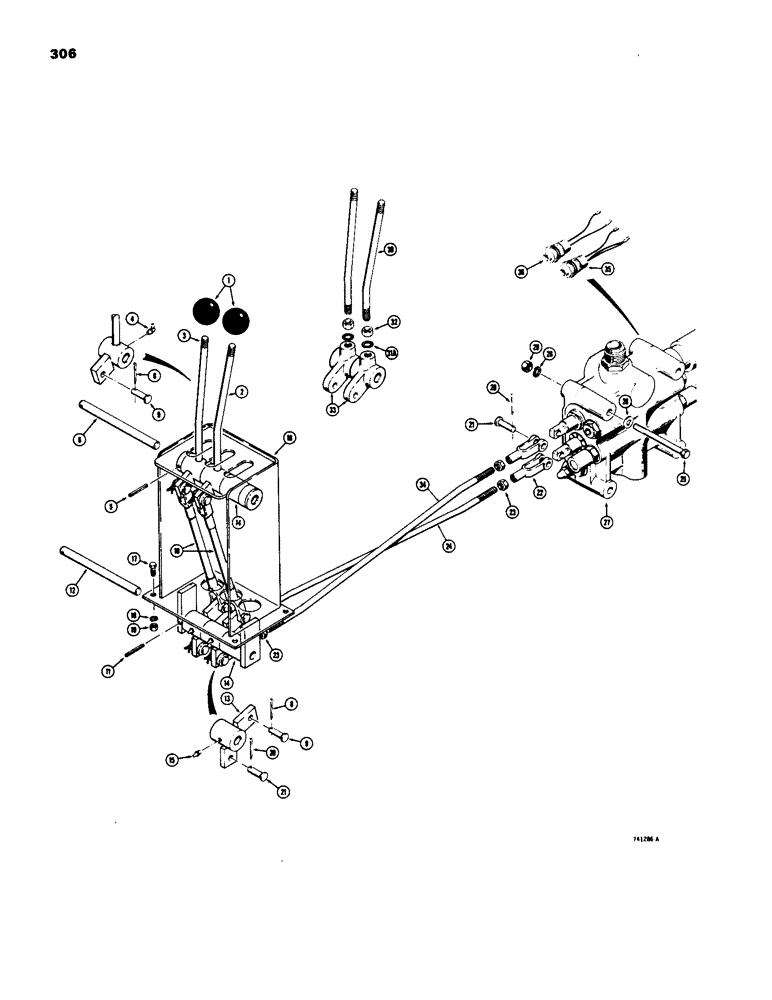

Запчасти Case W18 (306) - LOADER CONTROL VALVE & LEVERS (2 SPOOL), CASE PART NUMBER IS STAMPED ON VALVE IDENTIFICATION PLATE (08) - HYDRAULICS

1

A23885

KNOB

- control lever

2шт.

2

L47977

LEVER

AND BELLCRANK ASSEMBLY - use L51830 bellcrank, L51853 lever 193-48 lock washer and 25-148 nut

1шт.

3

L47979

LEVER

AND BELLCRANK ASSEMBLY - before Sn 9115403 use L51830 bellcrank, L51854 lever, 193-48 lock washer and 25-148 nut; after tractor Sn 9115403 use L57941 lever, L51830 bellcrank and 25-148 nut

1шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

5

138-67

LOCK PIN,1/8" x 1 3/4", Slotted

Pin, 1/8" x 1 3/4", Slotted

1шт.

6

L47816

SHAFT

- lever pivot

1шт.

8

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

9

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2"

4шт.

10

L47998

ROD

- connecting

2шт.

11

138-67

LOCK PIN,1/8" x 1 3/4", Slotted

Pin, 1/8" x 1 3/4", Slotted

1шт.

12

L47816

SHAFT

- bellcrank pivot

1шт.

13

L51047

DIPPER

BELLCRANK - spool actuating

2шт.

14

L55379

BUSHING,19.05mm ID x 26.9mm OD x 54mm L

SPACER - pivot shaft

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

25-106

NUT,3/8"-16, G5

- hex. 3/8" - 16 NC

4шт.

20

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

21

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2"

4шт.

22

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - connecting link

4шт.

23

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex jam, 1/2" - 20 NF

4шт.

24

L47818

ROD

LINK - connecting, loader tilt spool

1шт.

25

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

26

95-8

WASHER,1/2"

- standard wrot 1/2"

3шт.

27

L48130

LOCK VALVE

VALVE - hydraulic, before tractor sn 9109734, parts list Figure 312

1шт.

27

L53152

VALVE

- hydraulic, tractor sn 9109734 and after, parts list Figure 312, use L70410 valve, L70848 connector and L70849 connector

1шт.

27

L57678

VALVE

- hydraulic, tractor sn 9109734 and after, parts list page 315

1шт.

27

L70410

SPOOL

VALVE - hydraulic, tractor sn 9109734 and after, parts list Figure 316

1шт.

28

92-8

LOCK WASHER,1/2"

3шт.

29

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

30

L51853

LEVER

- loader lift control, if used

1шт.

31

L51854

LEVER

- loader tilt control, if used

1шт.

31a

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , If used Ext-Int Tooth, 1/2"

2шт.

32

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC), If used

2шт.

33

L51830

LEVER

BELLCRANK - control lever, if used

2шт.

34

L47817

ROD

LINK - connecting, loader lift spool

1шт.

35

L70848

CONNECTOR, ELEC

CONNECTOR - amphenol, if used

1шт.

36

L70849

CONNECTOR, ELEC

CONNECTOR - amphenol, if used

1шт.
