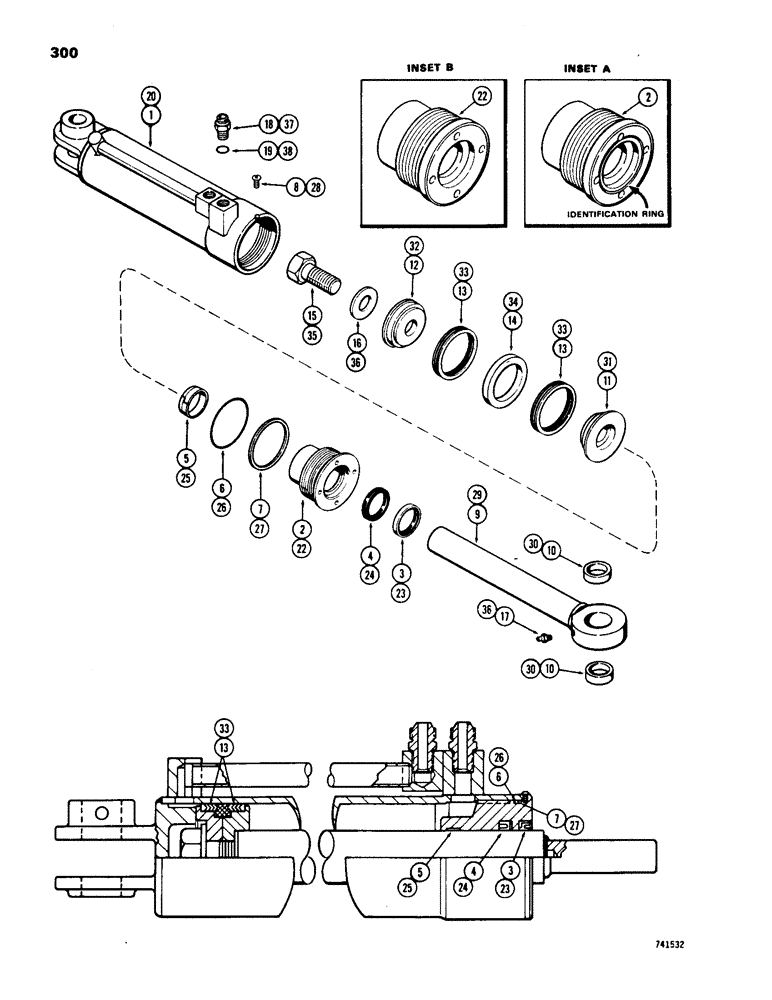

Запчасти Case W18 (300) - G33624 AND G33625 CLAM CYLINDERS (08) - HYDRAULICS

G33624

CYLINDER

ASSEMBLY - L.H. (4" dia. x 10" stroke), with gland identification ring, Includes: Ref. 1 - 19

1шт.

G33625

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - R.H. (4" dia. x 10" stroke), with gland identification ring, Includes: Ref. 1 - 19

1шт.

1

G31964

HYD TUBE,18.69" L

TUBE - cylinder body, R.H., with gland identification ring

1шт.

1

G31965

HYD TUBE

TUBE - cylinder body, L.H., with gland identification ring

1шт.

G33640

GLAND

ASSEMBLY - with identification ring, with gland, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - See inset A, with gland identification ring

1шт.

3

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2" x 2-1/2" x 5/16"), with gland identification ring

1шт.

Part of seal kit P/N G32299 with gland identification ring

1шт.

4

D36971

RING

SEAL - piston rod (2 x 2-1/2" x 7/16"), with gland identification ring

1шт.

Part of seal kit P/N G32299 with gland identification ring

1шт.

5

D27380

SCRAPER RING

WIPER - piston rod, inner (Split type), with gland identificaiton ring

1шт.

Part of seal kit P/N G32299 with gland identification ring

1шт.

6

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4" x 4-1/4" x 1/8"), with gland identification ring

1шт.

Part of seal kit P/N G32299 with gland identification ring

1шт.

7

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland "O" Ring, with gland identification ring

1шт.

Part of seal kit P/N G32299 with gland identification ring

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8 - 32 NC x 1/4" self-tapping), with gland identification ring

1шт.

9

G33626

ROD

ASSEMBLY - piston (2" dia.), with gland identification ring, Includes: Ref. 10

1шт.

10

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- piston rod, with gland identification ring

2шт.

11

G33623

PISTON

- split (Rod end), with gland identification ring

1шт.

12

D28370

PISTON

- split (Bolt end), with gland identification ring

1шт.

13

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston ("V" type), with gland identification ring

2шт.

Part of seal kit P/N G32299 with gland identification ring

1шт.

14

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing, with gland identification ring

1шт.

15

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston, with gland identification ring

1шт.

16

G32351

WASHER

- piston bolt (1-3/8" x 2-1/2" x 1/8"), with gland identification ring

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" NPT, straight), with gland identification ring

1шт.

18

218-5056

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

CONNECTOR ASSEMBLY - tube, with gland identification ring, Includes: Ref. 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - connector (3/4" x 15/16" x 3/32"), with gland identification ring

1шт.

G32299

KIT

- seal, Includes Refs. 3, 4, 5, 6, 7 and 13 with gland identification ring

1шт.

G32671

CYLINDER

- L.H., 4" dia. x 10" stroke (Use G33624), without gland identification ring

1шт.

G32672

CYLINDER

- R.H., 4" dia. x 10" stroke (Use G33625), without gland identification ring, Includes: Ref. 20 - 27

1шт.

20

G31964

HYD TUBE,18.69" L

TUBE - cylinder body, R.H., without gland identification ring

1шт.

20

G31965

HYD TUBE

TUBE - cylinder body, L.H., without gland identification ring

1шт.

21

G32737

GLAND

ASSEMBLY - not shown, without gland identification ring, Includes: Ref. 22

1шт.

22

NSS

NOT SOLD SEPARAT

GLAND - See inset B, without gland identification ring

1шт.

23

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2" x 2-1/2" x 5/16"), without gland identification ring

1шт.

Part of seal kit P/N G32299 without gland identification ring

1шт.

24

D36971

RING

SEAL - piston rod (2" x 2-1/2" x 7/16"), without gland identificaiton ring

1шт.

Part of seal kit P/N G32299 without gland identification ring

1шт.

25

D27380

SCRAPER RING

WIPER - piston rod, inner (Split type), without gland identification ring

1шт.

Part of seal kit P/N G32299 without gland identification ring

1шт.

26

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4" x 4-1/4" x 1/8"), without identification ring

1шт.

Part of seal kit P/N G32299 without gland identification ring

1шт.

27

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland "O" Ring, without identification

1шт.

Part of seal kit P/N G32299 without gland identification ring

1шт.

28

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8 - 32 NC x 1/4" self tapping), without identification ring

1шт.

29

G31974

ROD

ASSEMBLY - piston (2" dia.) Order (1) G33626 rod, (1) G33640 gland & (1) G33623 piston, without gland identification ring, Includes: Ref. 30

1шт.

30

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- piston rod, without gland identification ring

2шт.

31

D28371

PISTON

- split (Rod end), without gland identification ring

1шт.

32

D28370

PISTON

- split (Bolt end), without gland identification ring

1шт.

33

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston ("V" type), without gland identification ring

2шт.

Part of seal kit P/N G32299 without gland identification ring

1шт.

34

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing, without gland identification ring

1шт.

35

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston, without gland identification ring

1шт.

36

G32351

WASHER

- piston bolt (1-3/8" x 2-1/2" x 1/8"), without gland identification ring

1шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" NPT, straight), without gland identification ring

1шт.

37

218-5056

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

CONNECTOR ASSEMBLY - tube, without gland identification ring, Includes: Ref. 38

2шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - connector (3/4" x 15/16" x 3/32"), without gland identification ring

1шт.

G32299

KIT

- seal, Includes Refs. 23, 24, 25, 26, 27 and 33 without gland identification ring

1шт.
