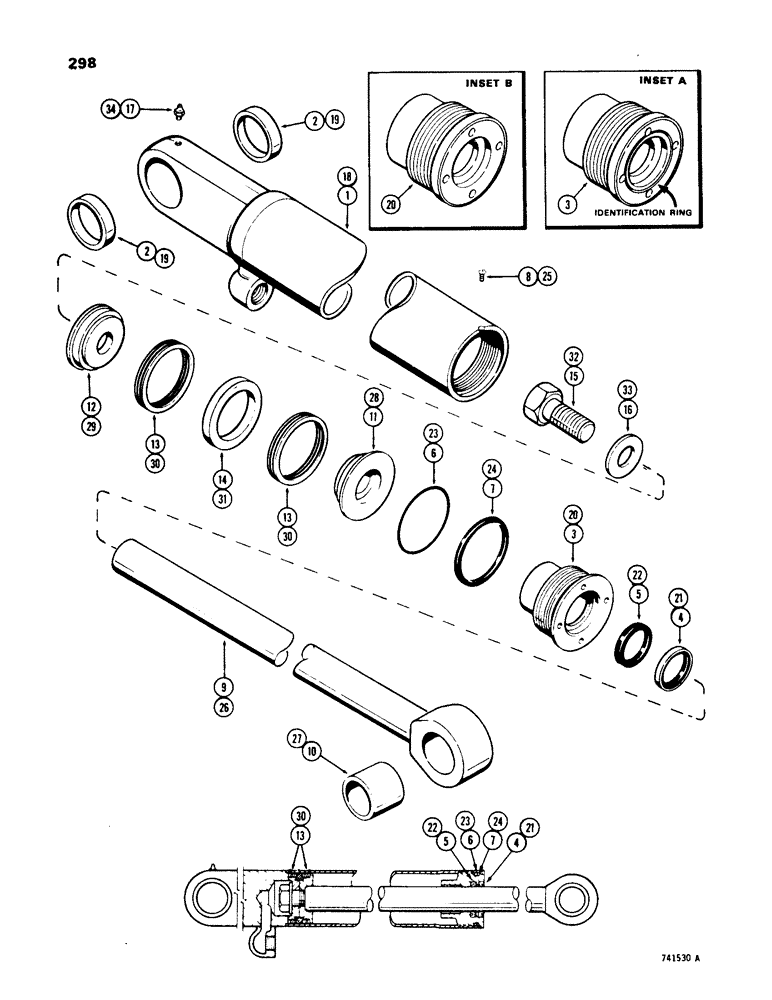

Запчасти Case W18 (298[B]) - G32771 & G32772 TILT CYLS. GLAND W/O IDENTIF. RING USED BEFORE S/N 9109476 & 9109481 - 9109533 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
G32771
CYLINDER
ASSEMBLY - tilt, L.H. (4" dia. x 28-3/8" stroke), Includes: Ref. 18 and 19
1шт.
G32772
CYLINDER
ASSEMBLY - tilt, R.H. (4" dia. x 28-3/8" stroke), Includes: Ref. 18 and 19
1шт.
18
G32840
TUBE,41.44" L
ASSEMBLY - cylinder, R.H., Includes: Ref. 19
1шт.
18
G32841
TUBE
ASSEMBLY - cylinder, L.H., Includes: Ref. 19
1шт.
19
D44543
BUSHING,63.75mm ID x 76.2mm OD x 19.3mm L
- tube
2шт.
G32800
GLAND
ASSEMBLY - with bushing, Includes: Ref. 20 - 24
1шт.
20
NSS
NOT SOLD SEPARAT
GLAND - See inset B (Without identification ring)
1шт.
21
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper - piston rod, outer (2" x 2-1/2" x 5/16")
1шт.
Part of seal kit P/N G32615
1шт.
22
D36971
RING
SEAL - piston rod, (2" x 2-1/2" x 7/16")
1шт.
Part of seal kit P/N G32615
1шт.
23
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
"O" RING - gland (4" x 4-1/4" x 1/8")
1шт.
Part of seal kit P/N G32615
1шт.
24
G32176
BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
Gland "O" Ring
1шт.
Part of seal kit P/N G32615
1шт.
25
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - gland lock (#8 - 32 NC x 1/4" self-tapping)
1шт.
26
G32847
PISTON ROD
ROD ASSEMBLY - piston (2" dia.), Includes: Ref. 27
1шт.
27
D43223
BUSHING
- piston rod
1шт.
28
D46424
PISTON
- split (Rod end)
1шт.
29
D46930
PISTON
- split (Bolt end)
1шт.
30
D47204
PACKING,89.15mm ID x 100.86mm OD
ASSEMBLY - piston ("V" type)
2шт.
Part of seal kit P/N G32615
1шт.
31
D47209
BEARING,3.006" ID x 3.987" OD x 0.631"
RING - center bearing
1шт.
32
28-2048
BOLT,Hex, 1-1/4" - 12 x 3", Gr 8
Piston Hex, 1 1/4"-12 x 3", G8
1шт.
33
G32351
WASHER
- piston bolt (1-3/8" x 2-1/2" x 1/8")
1шт.
34
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease (1/8" NPT, straight)
1шт.
G32615
KIT
SEAL KIT - cylinder repair, Includes Refs. 21, 22, 23, 24 and 30
1шт.
