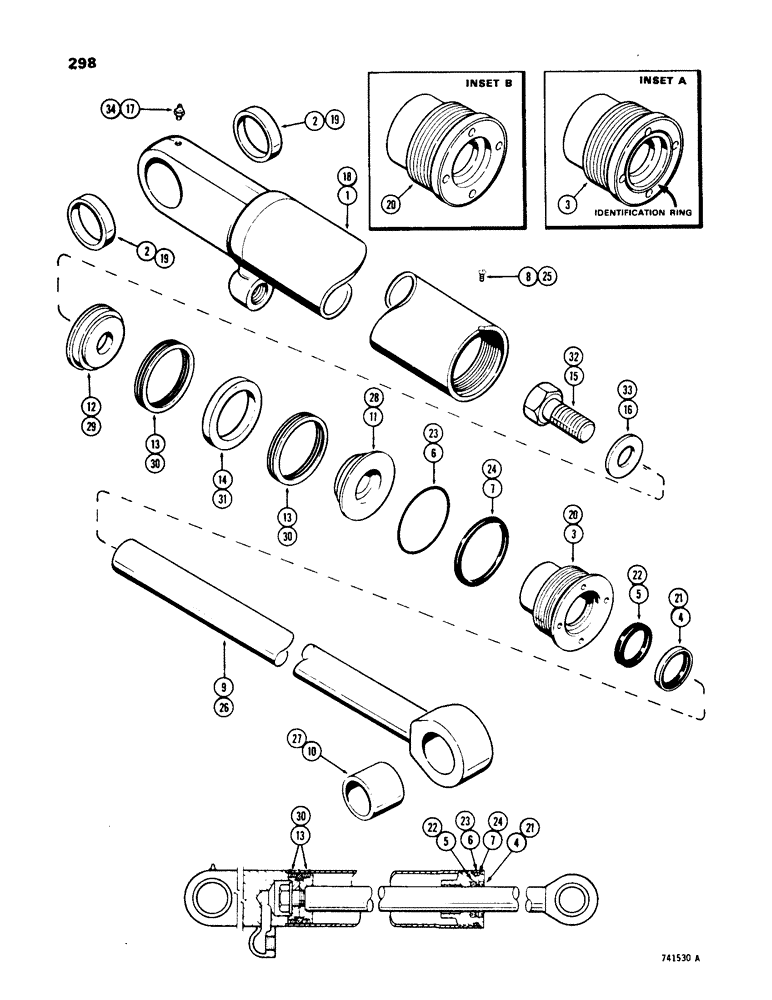

Запчасти Case W18 (298[A]) - G33592 & G33593 TILT CYLS. GLAND W/IDENTIF. RING USED ON S/N 9109476 - 9109480 & S/N 9109534 & AFTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
G33592
HYDRAULIC CYLINDER
CYLINDER ASSEMBLY - tilt, R.H. (4" dia. x 28-3/8" stroke), Includes: Ref. 1 - 17
1шт.
G33593
CYLINDER
ASSEMBLY - tilt, L.H. (4" dia. x 28-3/8" stroke), Includes: Ref. 1 - 17
1шт.
1
G32840
TUBE,41.44" L
ASSEMBLY - cylinder body, R.H., Includes: Ref. 2
1шт.
1
G32841
TUBE
ASSEMBLY - cylinder body, L.H., Includes: Ref. 2
1шт.
2
D44543
BUSHING,63.75mm ID x 76.2mm OD x 19.3mm L
- tube
2шт.
G33190
GLAND
ASSEMBLY - with bushing, Includes: Ref. 3 - 7
1шт.
3
NSS
NOT SOLD SEPARAT
GLAND - See inset A (With identification ring)
1шт.
4
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper - piston rod, outer (2" x 2-1/2" x 5/16"
1шт.
Part of seal kit P/N G32615
1шт.
5
D36971
RING
SEAL - piston rod, (2" x 2-1/2" x 7/16")
1шт.
Part of seal kit P/N G32615
1шт.
6
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
"O" RING - gland (4" x 4-1/4" x 1/8")
1шт.
Part of seal kit P/N G32615
1шт.
7
G32176
BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
Gland "O" Ring
1шт.
Part of seal kit P/N G32615
1шт.
8
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - gland lock (#8 - 32 NC x 1/4" self tapping)
1шт.
9
G33594
PISTON
ROD ASSEMBLY - piston (2" dia.), Includes: Ref. 10
1шт.
10
D43223
BUSHING
- piston rod
1шт.
11
G33159
PISTON
- split (Rod end)
1шт.
12
D46930
PISTON
- split (Bolt end)
1шт.
13
D47204
PACKING,89.15mm ID x 100.86mm OD
ASSEMBLY - piston ("V" type)
2шт.
Part of seal kit P/N G32615
1шт.
14
D47209
BEARING,3.006" ID x 3.987" OD x 0.631"
RING - center bearing
1шт.
15
28-2048
BOLT,Hex, 1-1/4" - 12 x 3", Gr 8
Piston Hex, 1 1/4"-12 x 3", G8
1шт.
16
G32351
WASHER
- piston bolt (1-3/8" x 2-1/2" x 1/8")
1шт.
17
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease (1/8" NPT, straight)
1шт.
G32615
KIT
SEAL KIT - cylinder repair, Includes Refs. 4, 5, 6, 7 and 13
1шт.
