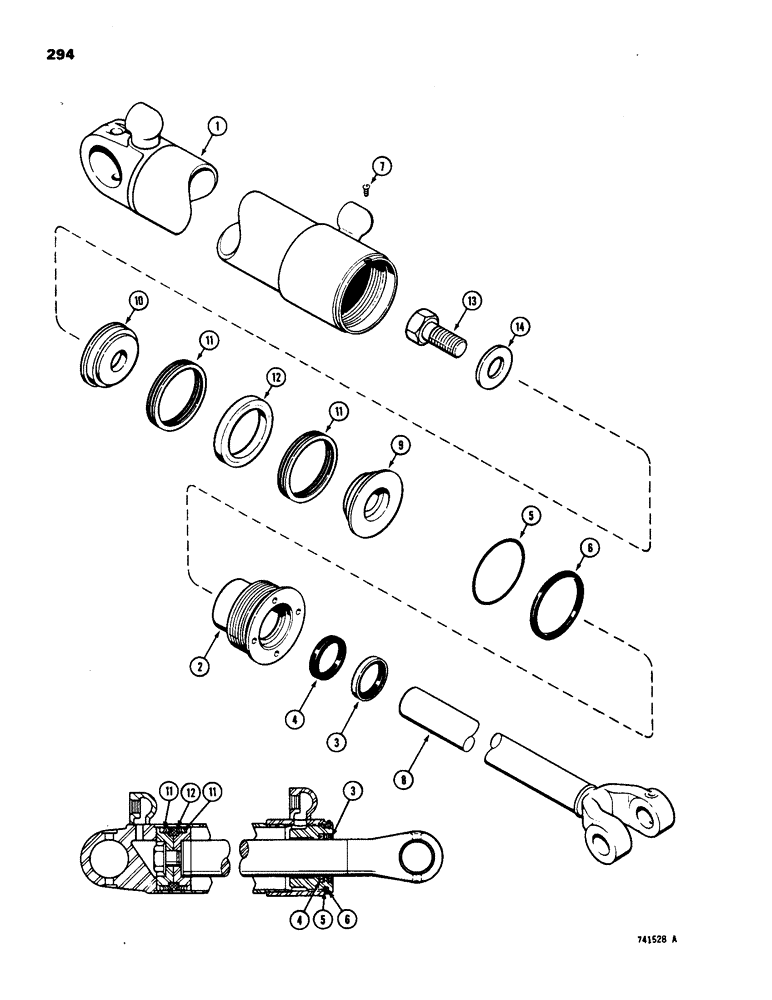

Запчасти Case W18 (294) - G32769 AND G32770 LIFT CYL., GLAND W/O CENTER BEARING USED BEFORE TRACTOR SN. 9115603 (08) - HYDRAULICS

G32769

CYLINDER

ASSEMBLY - lift, L.H. (5" dia. x 30" stroke), Includes: Ref. 1 - 14

1шт.

G32770

CYLINDER

ASSEMBLY - lift, R.H. (5" dia. x 30" stroke), Includes: Ref. 1 - 14

1шт.

1

G32855

TUBE

- cylinder, L.H.

1шт.

1

G32854

TUBE,39.7" L

- cylinder, R.H.

1шт.

G32803

GLAND

ASSEMBLY

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - with bushing, Includes: Ref. 3 - 6

1шт.

3

D95148

WIPER SEAL

WIPER - piston rod (3" x 3-1/2" x 5/16")

1шт.

Part of seal kit P/N G32668

1шт.

4

D45572

ROD

SEAL - piston rod (3" x 3-1/2" x 7/16")

1шт.

Part of seal kit P/N G32668

1шт.

5

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - gland (5" x 5-1/4 x 1/8")

1шт.

Part of seal kit P/N G32668

1шт.

6

G32105

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

- gland "O" ring backup

1шт.

Part of seal kit P/N G32668

1шт.

7

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland retaining (#8 - 32 NC x 1/4" self-tapping)

1шт.

8

G34140

PISTON

ROD - piston (3" dia.)

1шт.

9

D48562

PISTON,123.95mm Bore, 63.5mm Rod, 34.92mm W

- split (Rod end)

1шт.

10

D46932

PISTON

- split (Bolt end)

1шт.

11

D47206

PACKING

ASSEMBLY - piston ("V" type)

2шт.

Part of seal kit P/N G32668

1шт.

12

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center bearing

1шт.

13

28-2056

BOLT,Hex, 1-1/4" - 12 x 3-1/2", Gr 8

- piston (1-1/4" x 3-1/2" NF hex)

1шт.

14

G32351

WASHER

- piston bolt (1-3/8" x 2-1/2" x 5/32")

1шт.

G32668

KIT

SEAL KIT - cylinder packing, Includes Refs. 3, 4, 5, 6 and 11

1шт.
