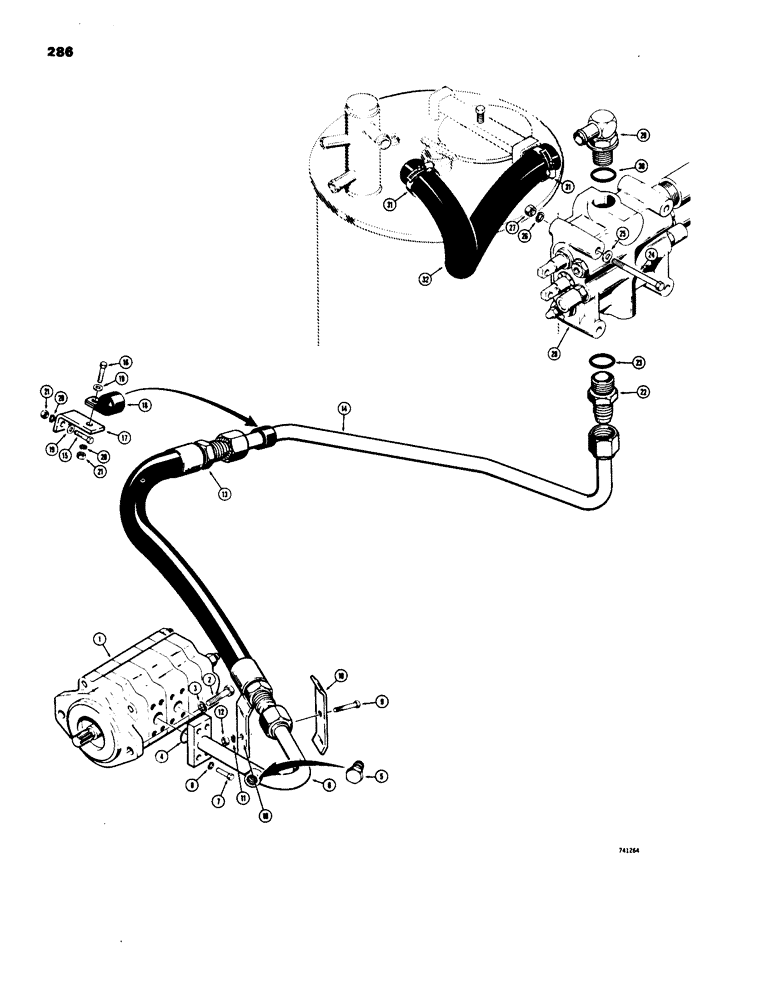

Запчасти Case W18 (286) - PRESSURE LINE WITHOUT REGENERATION HYDRAULICS, TRACTOR SN. 9109734 AND AFTER (08) - HYDRAULICS

1

L26895

PUMP

ASSEMBLY - hydraulic, loader and steering (Loader- 48 G.P.M., steering - 23 G.P.M. at 2000 P.S.I. at 2200 R.P.M.) Parts list Figure 304

1шт.

L26895R

REMAN-HYD PUMP

W18 CASE ARTICULATED WHEEL LOADER (NORTH AMERICA) PRESSURE LINE WITHOUT REGENERATION HYDRAULICS, TRACTOR SN. 9109734 AND AFTER

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

5

221-655

PLUG,Hex Hd, 3/4"-14

- hydraulic tube, pipe (3/4" NPT) L53120 tube only

1шт.

6

L53120

HYD TUBE

TUBE - pump to valve, at pump

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

10

L47503

BRACKET

CLAMP - tube

2шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

13

L47762

HOSE

- pump to valve (36" long)

1шт.

14

L53391

TUBE

- pump to valve, at valve (2 spool valve)

1шт.

14

L53401

TUBE,1.25" OD

- pump to valve, at valve (3 spool valve)

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (Bracket to chassis)

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to clamp Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

17

L48388

BRACKET

- clamp mounting

1шт.

18

D40471

CLAMP

- tube

1шт.

19

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

22

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - male, straight, Includes: Ref. 23

1шт.

23

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

24

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

25

95-8

WASHER,1/2"

- standard wrot 1/2"

3шт.

26

92-8

LOCK WASHER,1/2"

3шт.

27

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

28

REF

INSTRUCTION

VALVE - loader control (See Figures 306 and 308 for proper valve)

1шт.

29

217-354

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB

STEM - hose, 90 deg., Includes: Ref. 30

1шт.

30

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

31

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

32

L48894

HOSE

- low pressure, control valve to tank (17" long)

1шт.
