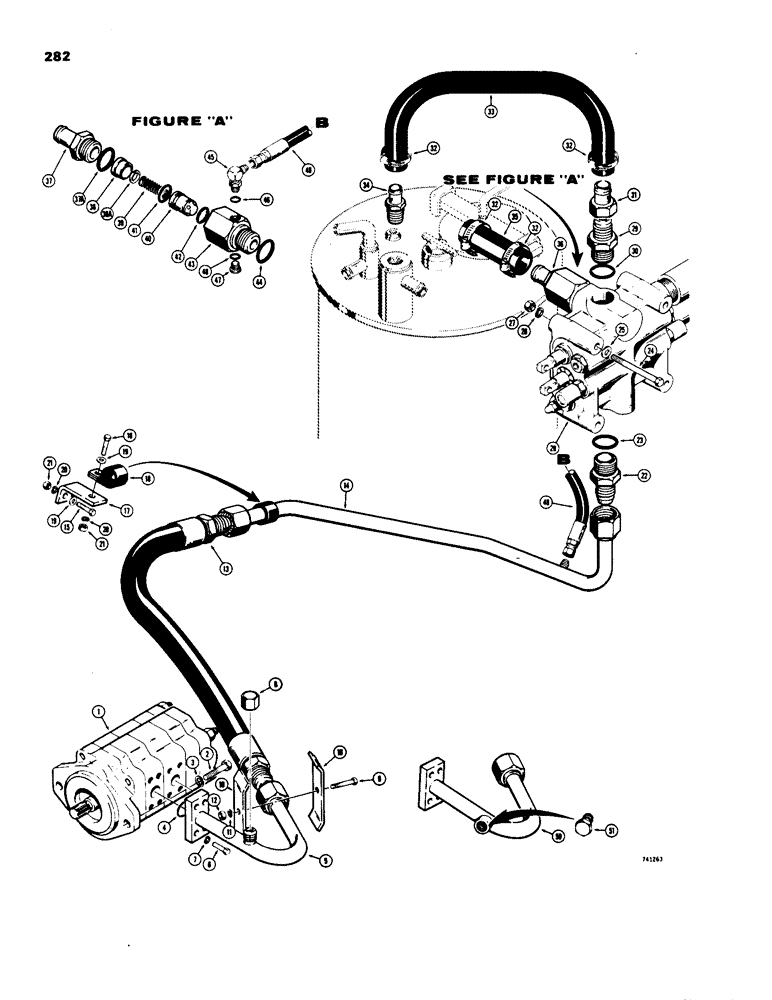

Запчасти Case W18 (282) - PRESSURE LINE AND REGENERATION HYDRAULICS, TRACTOR SN. 9107854 THRU 9109734 (08) - HYDRAULICS

1

L26895

PUMP

ASSEMBLY - hydraulic, loader and steering (Parts list Figure 304

1шт.

L26895R

REMAN-HYD PUMP

W18 CASE ARTICULATED WHEEL LOADER (NORTH AMERICA) PRESSURE LINE AND REGENERATION HYDRAULICS, TRACTOR SN. 9107854 THRU 9109734

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

5

L51300

TUBE

- pump to valve, at pump (When stock is exhausted, order L53120 tube and 221-655 plug for service)

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

218-758

CAP,37 Degree, 1 5/16"-12

- hydraulic tube (Used on L51300 tube)

1шт.

9

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

10

L47503

BRACKET

CLAMP - tube

2шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

13

L47762

HOSE

- pump to valve (36" long)

1шт.

14

L50023

TUBE

- pump to valve, at valve (2 spool valve)

1шт.

14

L50022

TUBE

- pump to valve, at valve (3 spool valve)

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (Bracket to chassis)

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to clamp Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

17

L48388

BRACKET

- clamp mounting

1шт.

18

D40471

CLAMP

- tube

1шт.

19

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

22

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - male, straight, Includes: Ref. 23

1шт.

23

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

24

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

25

95-8

WASHER,1/2"

- standard wrot 1/2"

3шт.

26

92-8

LOCK WASHER,1/2"

3шт.

27

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

28

REF

INSTRUCTION

VALVE - loader control (See Figures 306 and 308 for proper valve), Includes: Ref. 29 and 30

1шт.

29

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - male, straight, Includes: Ref. 30

1шт.

30

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

31

L51073

FITTING

STEM - hose, straight (At valve)

1шт.

32

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

33

L70287

HOSE,1.00" ID x 22.00"

Low Pressure, Control Valve to Tank 1.00" ID x 22.00"

1шт.

34

217-173

FITTING,1" Hose Barb x 1-5/8" - 12 Male ORB

(At tank) 1" Hose x 1 5/8"-12 ORB, Beaded

1шт.

35

D25759

HOSE

- low pressure, check valve to tank (6" long)

1шт.

36

L47380

LOCK VALVE

VALVE - check, regeneration, Includes: Ref. 36A - 44

1шт.

36a

L50226

SPACER

- spring

1шт.

37

L45852

FITTING

- connector, check valve to manifold hose, Includes: Ref. 37A

1шт.

37a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

38

L47371

SPACER

WASHER - spring retainer

1шт.

39

L47372

VALVE SPRING

SPRING - poppet

1шт.

40

L47370

VALVE POPPET

POPPET - valve

1шт.

41

L50227

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

SEAL - "O" ring, poppet (Large)

1шт.

42

L33128

O-RING,0.984" ID x 0.139" Width

SEAL - "O" ring, poppet (Small)

1шт.

43

L47369

BODY

- valve

1шт.

44

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, check valve to valve body

1шт.

45

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- adjustable, 90 deg., Includes: Ref. 46

1шт.

46

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

47

9672438

PLUG,7/16" - 20 ORB

Hydraulic, Incl. Ref. 48 Hex Hd, 7/16"-20 ORB

1шт.

48

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

49

L50021

HOSE ASSY.

HOSE - check valve to pressure tube (24" long)

1шт.

50

L53120

HYD TUBE

TUBE - pump to valve, at pump

1шт.

51

221-655

PLUG,Hex Hd, 3/4"-14

- hydraulic tube, pipe (3/4" NPT) L53120 tube only

1шт.
