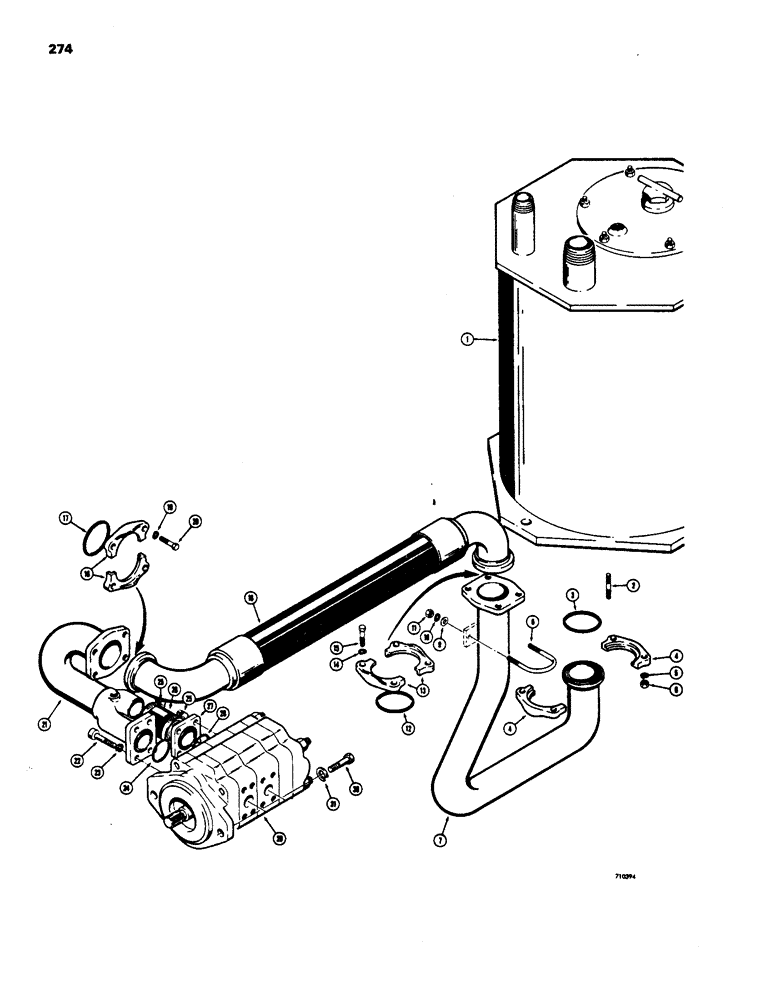

Запчасти Case W18 (274) - LOADER AND STEERING PRIMARY HYDRAULICS, BEFORE TRACTOR SN. 9107854 (08) - HYDRAULICS

1

REF

INSTRUCTION

TANK - hydraulic reservoir (Parts list Figure 230), Includes: Ref. 2

1шт.

2

L14422

STUD - clamp mounting

4шт.

3

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

4

L14386

CLAMP

FLANGE - split, tube

2шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

7

L47349

TUBE - suction, at tank

1шт.

8

F8052

CLAMP

- "U" bolt, tube

1шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" x 18 NC)

2шт.

12

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

13

L14386

CLAMP

FLANGE - split, tube

2шт.

14

92-8

LOCK WASHER,1/2"

4шт.

15

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

16

L47330

HOSE

- hydraulic tank to pump (35.4" long)

1шт.

17

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

18

L14386

CLAMP

FLANGE - split, tube

2шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

21

L47345

TUBE

- suction, tank to pump (At pump)

1шт.

22

61-816

HEX SOC SCREW,1/2"-13 x 1"

SCREW - hex. socket head (1/2" - 13 NC x 1")

8шт.

23

92-8

LOCK WASHER,1/2"

8шт.

24

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

25

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

26

A15675

INTAKE AIR HOSE,50.80 mm ID x 63.50 mm, SAE 20R1

HOSE 2.00" ID x 2.50", SAE 20R1 - Low pressure

1шт.

27

L17812

FLANGE

- tube

1шт.

28

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

29

L26895

PUMP

ASSEMBLY - hydraulic, loader and steering (Loader - 48 G.P.M., steering - 23 G.P.M. at 2000 P.S.I. at 2200 R.P.M.) Parts list Figure 304

1шт.

L26895R

REMAN-HYD PUMP

W18 CASE ARTICULATED WHEEL LOADER (NORTH AMERICA) LOADER AND STEERING PRIMARY HYDRAULICS, BEFORE TRACTOR SN. 9107854

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

30

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

31

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
