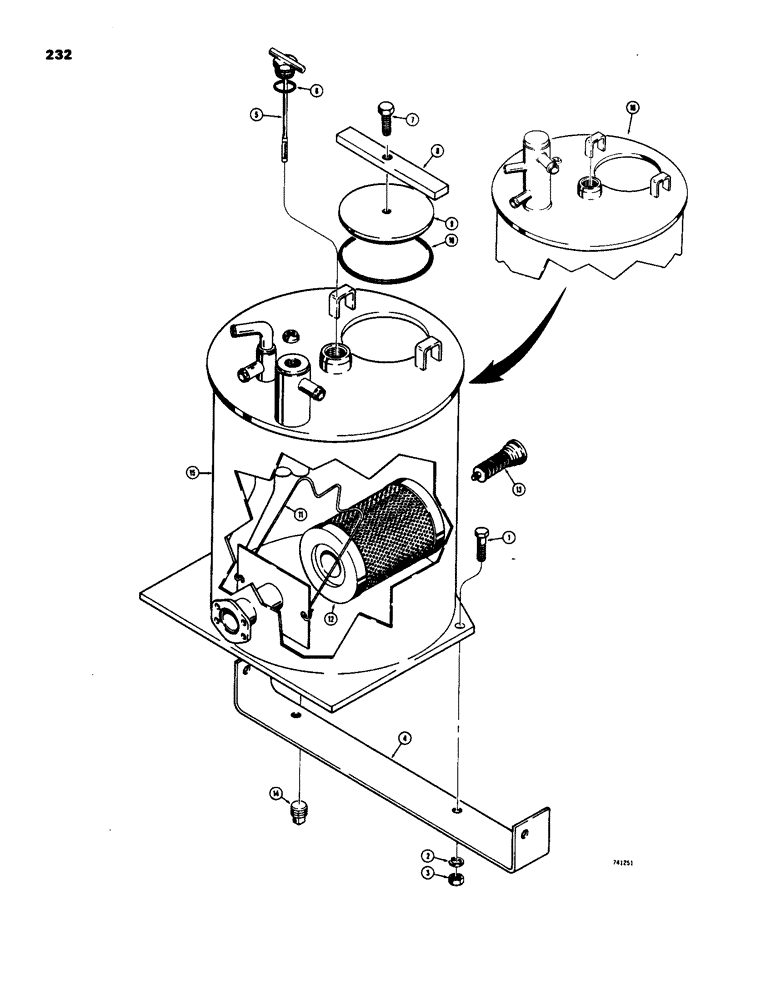

Запчасти Case W18 (232) - HYDRAULIC TANK AND RELATED PARTS, TRACTOR SN. 9107854 AND AFTER (08) - HYDRAULICS

1

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

5шт.

2

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

3

25-1010

NUT,5/8"-11, G5

5шт.

4

L51640

BRACKET

SUPPORT - hydraulic tank

1шт.

5

L16680

GAUGE

- oil level

1шт.

6

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd, Cover holddown

1шт.

8

L50741

BAR

- cover holddown

1шт.

9

L50743

COVER

- hydraulic tank (When stock is exhausted, order L55406 cover and L55410 seal for service)

1шт.

9

L55406

COVER

- hydraulic tank

1шт.

10

L52161

SEALING RING

QUAD RING - seal, cover (.134" thick) L50743 cover only

1шт.

10

L55410

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

SEAL - "O" ring, cover (.275" thick) L55406 cover only

1шт.

11

L51089

SPRING

- filter holddown

1шт.

12

L50384

FILTER, ELEMENT

FILTER - hydraulic tank

1шт.

13

L50383

VALVE

- relief, bypass

1шт.

14

221-677

DRAIN PLUG,Sq Hd, 3/4" NPT

PLUG - magnetic drain

1шт.

15

L51080

TANK - hydraulic (Sn. 9107854 thru 9109734)

1шт.

16

L53392

TANK

- hydraulic (Sn. 9019734 and after) When stock is exhausted, order L55422 tank for service

1шт.

16

L55422

TANK

- hydraulic (Sn. 9109734 and after)

1шт.
