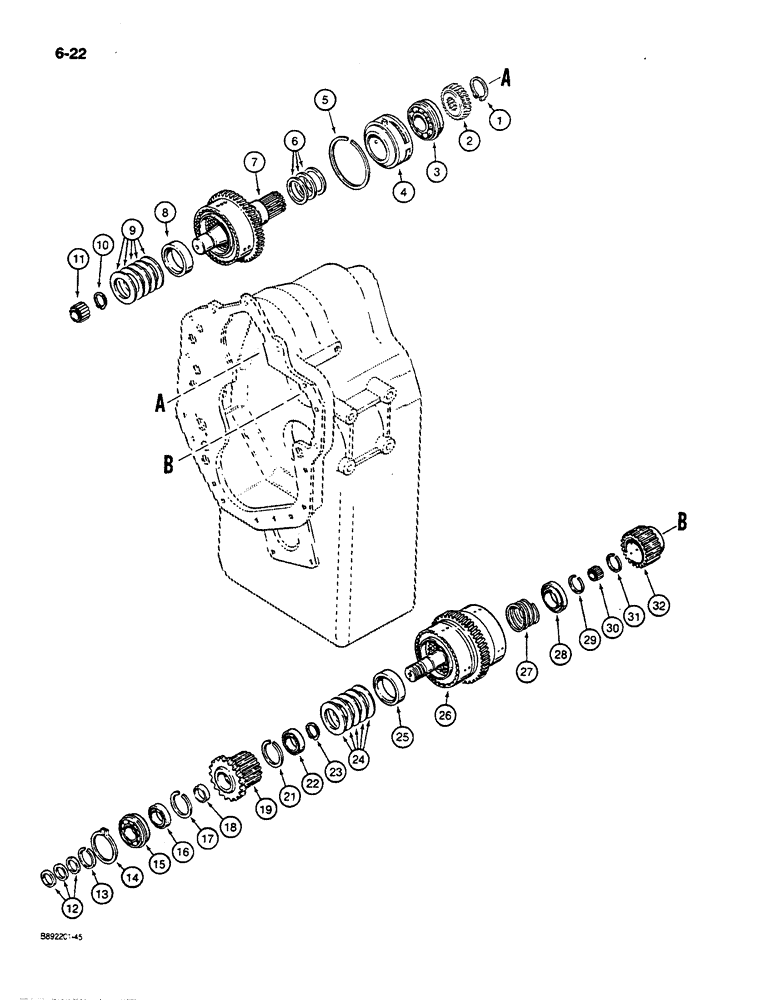

Запчасти Case W14C (6-22) - TRANSMISSION, REVERSE, FORWARD, AND SECOND GEARS (06) - POWER TRAIN

L127681

TRANSMISSION

ASSEMBLY - includes parts on Figutres 6-14 through 6-40

1шт.

1

S117877

RING

- snap, reverse gear

1шт.

2

S117878

GEAR WHEEL

- reverse shaft

1шт.

3

N9442

BALL BEARING

BEARING - ball, reverse shaft, front

1шт.

4

E114356

BUSHING

SLEEVE - piston ring

1шт.

5

E114355

RING

- retaining, piston ring sleeve

1шт.

6

A55824

SEAL

RING - piston, reverse shaft

3шт.

7

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - reverse, parts list Figure 6-20

1шт.

8

N7215

SPACER

- piston return spring

1шт.

9

D87249

SPRING

- Belleville, piston return

5шт.

10

D87257

RING

- snap, spring retainer

1шт.

11

E114339

NEEDLE BEARING,44.44mm ID x 54.02mm OD x 19.05mm W

BEARING - needle, reverse pilot shaft

1шт.

12

A17925

SPRING

RING - piston, forward and second shaft

3шт.

13

L33518

RING

- retaining, rear bearing

1шт.

14

S89652

RING

- snap, rear bearing

1шт.

15

S89654

BALL BEARING,40mm ID x 90mm OD x 23mm W

BEARING - ball, shaft, forward and second, rear

1шт.

16

A28236

BALL BEARING,1.5743" ID x 2.6772" OD x 0.5906"

BEARING - ball, gear, clutch driven

1шт.

17

E114325

RING, SNAP

RING - retaining, bearing

1шт.

18

E114326

SPACER

- bearing, clutch driven gear

1шт.

19

N7270

GEAR

- forward clutch

1шт.

20

N13129

RING

- oil retaining, forward clutch gear, not shown

1шт.

The oil retaining ring is an internal part of the gear and it is recommended that the ring should not be removed.

1шт.

21

E114325

RING, SNAP

RING - retaining, bearing

1шт.

22

L33513

BALL BEARING,1.6748" ID x 2.6772" OD x 0.5906"

BEARING - ball, gear, clutch driven

1шт.

23

D87257

RING

- snap, spring retainer

1шт.

24

D87249

SPRING

- Belleville, piston return

5шт.

25

N7215

SPACER

- spring, piston return

1шт.

26

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - forward and second, parts list Figure 6-24

1шт.

27

E114331

SPRING

- piston return

1шт.

28

E114332

RETAINER

- spring

1шт.

29

E114328

RING, SNAP

RING - snap, spring retainer

1шт.

30

N7216

NEEDLE BEARING,1.125" ID x 1.5012" OD x 1"

BEARING - needle, shaft, forward and second, front

1шт.

31

E114334

CLIP

RING - retaining, second clutch disc hub

1шт.

32

N8749

GEAR

- second clutch disc hub

1шт.

33

N13129

RING

- oil retaining, second clutch disc hub gear, not shown

1шт.

The oil retaining ring is an internal part of the gear and it is recommended that the ring should not be removed.

1шт.
