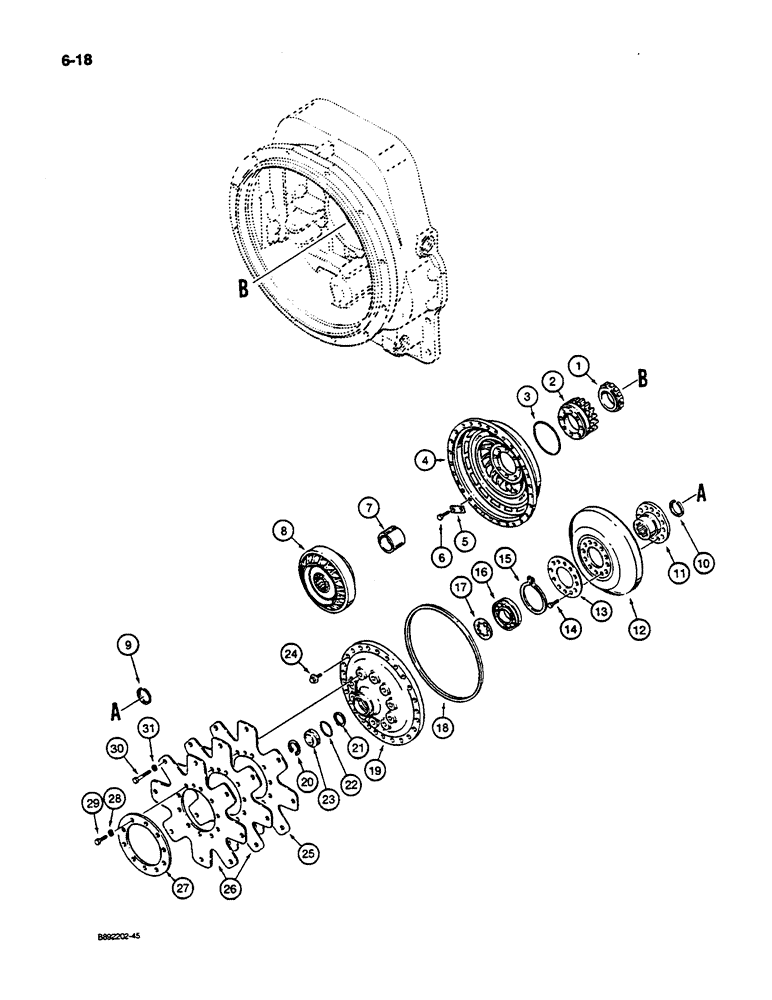

Запчасти Case W14C (6-18) - TRANSMISSION, IMPELLER, TURBINE, AND FLEX PLATE (06) - POWER TRAIN

L127681

TRANSMISSION

ASSEMBLY - includes parts on Figures 6-14 through 6-40

1шт.

1

D77034

BEARING, ROLLER, CYL,49.99mm ID x 72.1mm OD x 16mm W

BEARING - tapered roller, impeller hub gear

1шт.

2

E114280

GEAR WHEEL

GEAR - impeller hub

1шт.

3

E114281

O-RING,3.63mm Thk x 92.89mm ID, 75 Duro

- impeller hub

1шт.

4

N7192

IMPELLER

- torque converter

1шт.

5

E114283

LOCK

TAB - lock, Serial Range: impeller-hub

4шт.

6

28-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 8

- hex, 3/8 NF x 3/4 inch, grade 8

8шт.

7

E114284

SPACER

- vane, impeller to hub bearing

1шт.

8

N7688

STATOR

- impeller

1шт.

9

E114286

CIRCLIP

RING - retaining, bearing, small

1шт.

10

E114288

RING

- retaining, hub

1шт.

11

N7378

BRACKET

HUB - turbine

1шт.

12

N7379

TURBINE

- shift

1шт.

13

D142273

WASHER

RING - backing, turbine

1шт.

14

D142272

LOCK BOLT,Locking, Hex, 3/8" - 24 x 3/4", Gr 8

BOLT - special, epoxy coated

12шт.

15

E114290

RING

- locating, hub bearing

1шт.

16

E114291

BALL BEARING

BEARING - ball, turbine hub

1шт.

17

E114292

WASHER

- bearing retaining

1шт.

18

T42352

SEALING RING,Square, 2.69mm Thk x 64.52mm ID

- impeller to cover

1шт.

N14131

COVER

ASSEMBLY - impeller

1шт.

19

NSS

NOT SOLD SEPARAT

COVER - impeller

1шт.

20

K621779

SNAP RING,1.688, Int, #168

Ring, Snap, 1.688", Int, #168, bore plug

1шт.

21

E114288

RING

- snap, turbine retaining

1шт.

22

A62193

O-RING,1.424" ID x 1.63" OD

- impeller cover, bore plug

1шт.

23

E114296

PLUG

- bore

1шт.

24

D58177

CAPTIVE WASHER SCREW,3/8" - 16 x 1"

BOLT - special, 3/8 NC x 1 inch

24шт.

D142271

KIT

- flex plate, drive

1шт.

25

NSS

NOT SOLD SEPARAT

PLATE - flex, drive, threaded bolt holes

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE - flex, drive

2шт.

27

E114300

PLATE

RING - flex plate

1шт.

28

492-11038

LOCK WASHER,3/8"

10шт.

29

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

10шт.

30

114-204

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

Hex, 3/8-24 x 1 3/4", G5, Not included with transmission

8шт.

31

492-11038

LOCK WASHER,3/8"

not included with transmission 3/8"

8шт.
