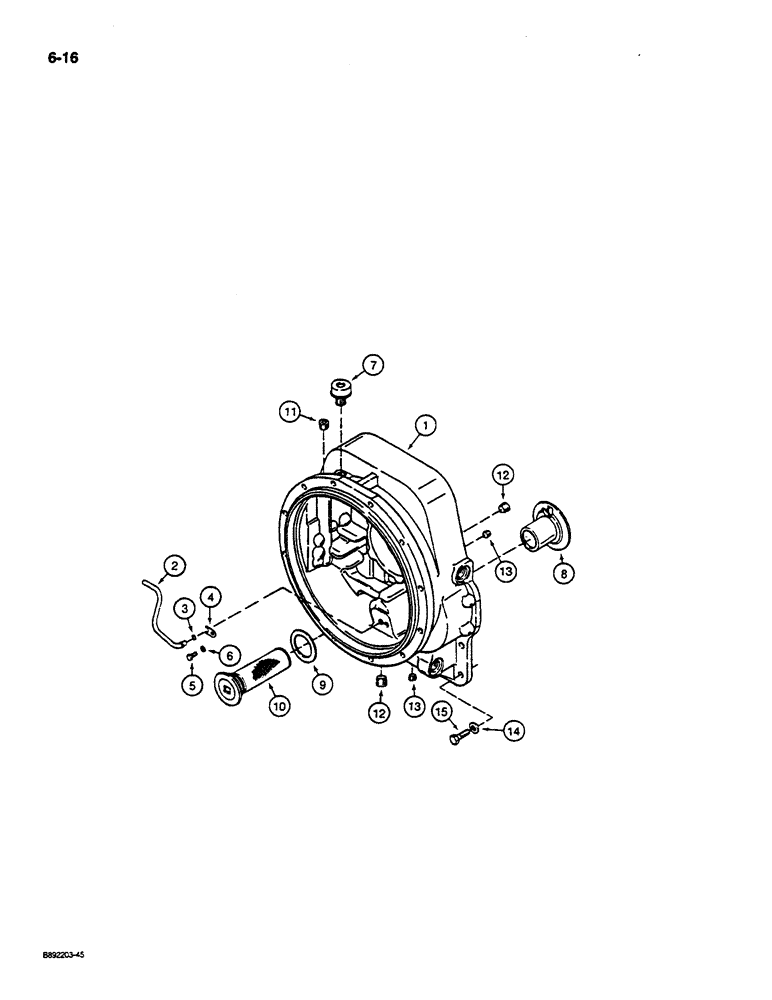

Запчасти Case W14C (6-16) - TRANSMISSION, TORQUE CONVERTER HOUSING (06) - POWER TRAIN

L127681

TRANSMISSION

ASSEMBLY - includes parts on Figures 6-14 through

1шт.

6-40

1шт.

S300125

HOUSING ASSY.

HOUSING ASSEMBLY - torque converter

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - torque converter

1шт.

2

N8128

TUBE

- lube by-pass

1шт.

3

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- tube

1шт.

4

NLS

NO LONGER SERVICED

CLAMP - tube

1шт.

5

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

7

N7134

BREATHER

- air, torque converter

1шт.

8

E114312

SLEEVE

- torque converter housing

1шт.

9

L30039

GASKET,46.83mm ID x 58.74mm OD x 3.17mm Thk

- screen

1шт.

10

L33482

FILTER SCREEN

SCREEN - filter

1шт.

11

S117872

PLUG

- special, 1/4 inch PT

1шт.

12

E114311

PLUG

- special, 1/2 inch PT

2шт.

13

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

2шт.

14

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

16шт.

15

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

16шт.
