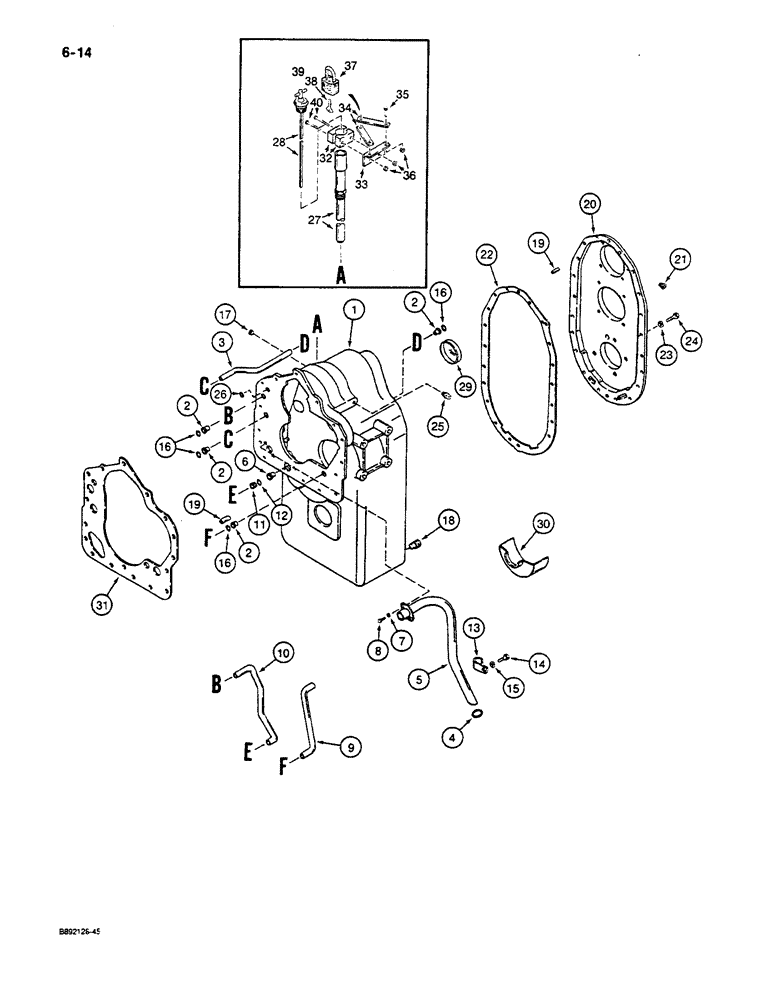

Запчасти Case W14C (6-14) - TRANSMISSION, HOUSING, REAR COVER, AND TUBES (06) - POWER TRAIN

L127681

TRANSMISSION

ASSEMBLY - includes parts on Figures 6-14 through 6-40

1шт.

1

D87259

TRANSMISSION

HOUSING - transmission

1шт.

2

A55734

SLEEVE

- tube

4шт.

3

N7146

TUBE,12.81" L

- clutch pressure, low speed

1шт.

4

N6595

O-RING

- suction tube

1шт.

5

E114319

HYD TUBE,1.125" DIA. x 2" L

TUBE - suction

1шт.

6

D87207

SLEEVE

- tube

1шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

9

E114320

TUBE

- clutch lubrication

1шт.

10

E114321

TUBE

- third speed

1шт.

11

E114322

PLUG

- pressure, third speed

1шт.

12

N6595

O-RING

- pressure plug

1шт.

13

A55741

CLAMP,1", 1/2" Bolt

- suction tube

1шт.

14

113-335

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

1шт.

15

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

16

L33542

O-RING,0.139" Thk x 0.796" ID, -211, Cl 7, 75 Duro

- sleeve tube

4шт.

17

S117872

PLUG

- special, transmission housing

1шт.

18

221-659

DRAIN PLUG,Hex Soc, 3/4" NPT

PLUG - hex socket head, 3/4 inch taper PT, magnetic, drain

2шт.

19

A17924

PIN

- dowel, Serial Range: case-cover

3шт.

20

E114317

COVER

- rear, transmission housing

1шт.

21

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT, rear cover

1шт.

22

E114316

GASKET

- rear, Serial Range: cover-housing

1шт.

23

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

20шт.

24

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

20шт.

25

221-843

PLUG,Hex Soc, 3/8"-18

- square head, 3/8 inch PT

1шт.

26

E114251

O-RING

- clutch pressure

1шт.

27

E114323

TUBE

- dipstick

1шт.

28

E114324

DIPSTICK

- transmission oil level

1шт.

29

E114336

PLUG

- expansion, transmission housing

1шт.

30

E114318

BAFFLE

- transmission oil

1шт.

31

D87221

GASKET

- transmission housing

1шт.

32

L128239

CLAMP

- two piece, Serial Range: bracket-pipe

1шт.

33

L127436

BRACKET

- mounting, locking links

1шт.

34

L127437

LINK

- locking, dipstick

2шт.

35

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

36

86625061

NUT,1/4"-20, GB

NUT - hcx lock, 1/4 inch NC

4шт.

37

D93753

PADLOCK

- includes keys

1шт.

38

D93751

SET OF 2 KEYS

KEY - for Yale padlock

2шт.

39

R29555

KEY

- for Master padlock

2шт.

40

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.
