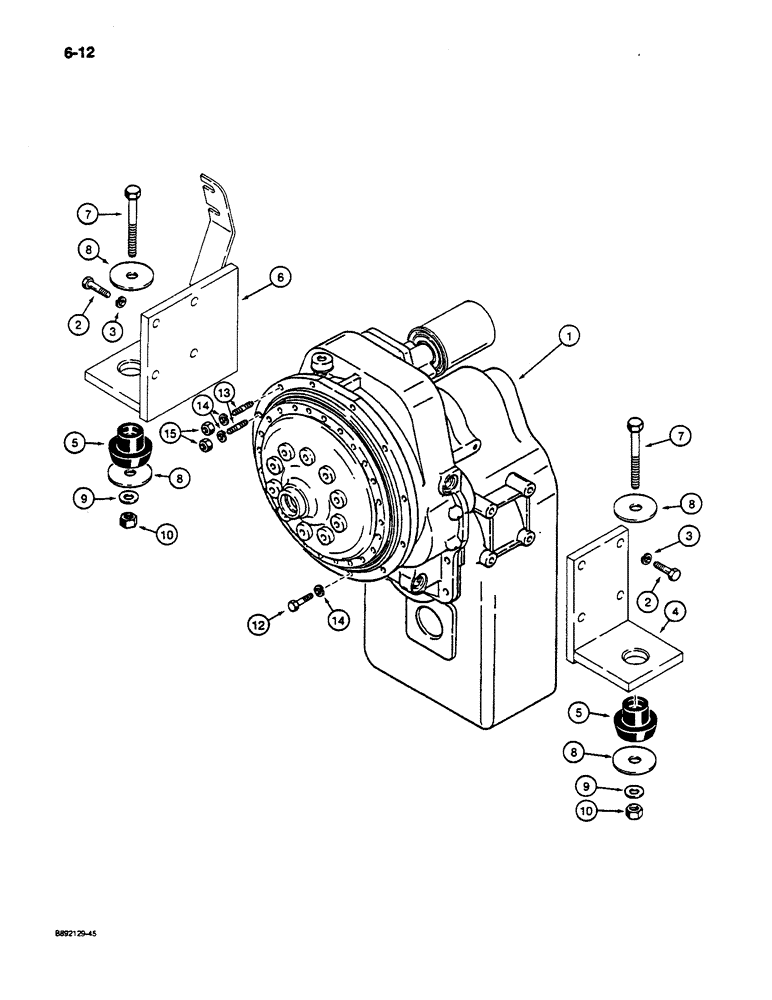

Запчасти Case W14C (6-12) - TRANSMISSION AND TRANSMISSION MOUNTS (06) - POWER TRAIN

1

L127681

TRANSMISSION

ASSEMBLY - includes parts on Figures 6-14 through 6-40

1шт.

2

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

8шт.

3

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

4

L126170

SUPPORT

BRACKET - transmission mounting, right-hand

1шт.

5

A19066

MOUNTING PARTS

MOUNT - transmission, rubber

2шт.

6

L126174

SUPPORT

BRACKET - transmission and control cable mounting, left-hand

1шт.

7

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

8

A19068

WASHER

- special, large, rubber transmission mount

4шт.

9

L79179

WASHER

- special, small, hardened

2шт.

10

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

2шт.

11

B17428

LOCTITE

SEALANT - Gasket Eliminator No. 504, 50 ml tube, seals converter housing to engine, not shown

1шт.

12

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

Transmission to engine Hex, M10 x 40, 8.8, Full Thd

10шт.

13

L112126

STUD

-, Serial Range: transmission-engine

2шт.

14

892-11010

LOCK WASHER,M10

12шт.

15

825-1110

NUT,M10, Cl 8

hex M10, Cl 8

2шт.
