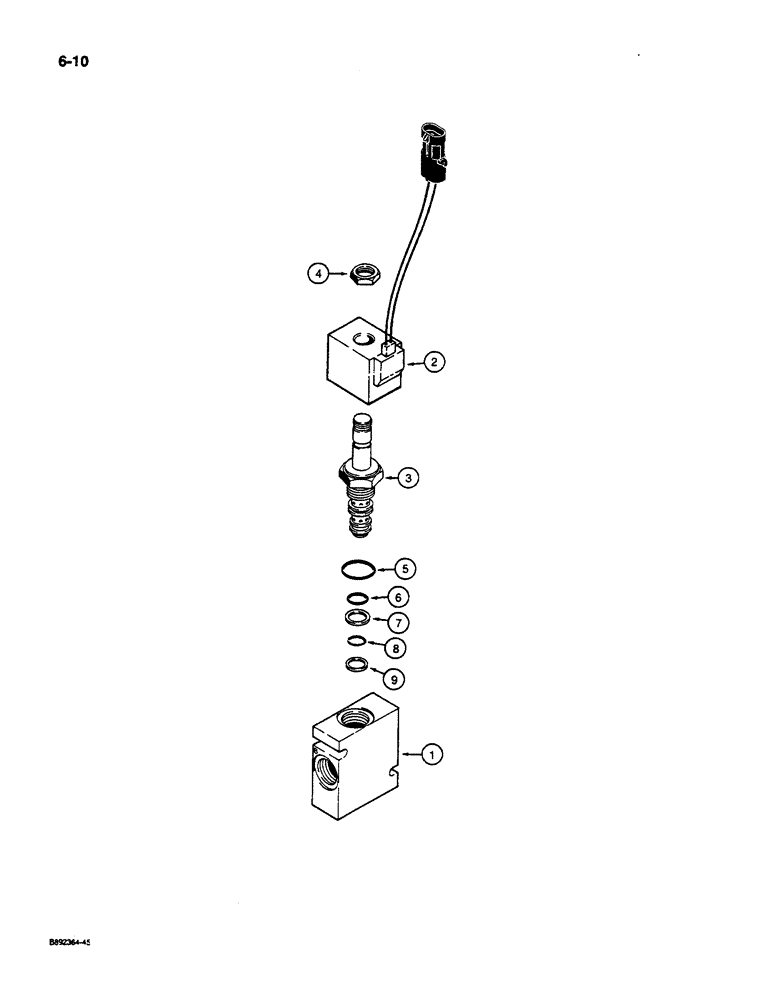

Запчасти Case W14C (6-10) - CLUTCH CUTOUT SOLENOID VALVE (06) - POWER TRAIN

L127535

VALVE

ASSEMBLY - solenoid, clutch cutout, transmission

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - solenoid

1шт.

2

S301032

COIL

- solenoid

1шт.

3

S301031

CARTRIDGE

VALVE ASSEMBLY - solenoid, internal component parts not

1шт.

serviced separately

1шт.

4

D144213

NUT

- hex, jam, 1/2 inch NF

1шт.

D144214

SEAL

KIT - external seals, solenoid valve

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- valve body, center

1шт.

7

T40181

RING

- backup, center O-ring

1шт.

8

A8613

O-RING,0.426" ID x 0.566" OD

- valve body, small, lower

1шт.

9

D75841

OIL SEAL

RING - backup, small lower O-ring

1шт.
