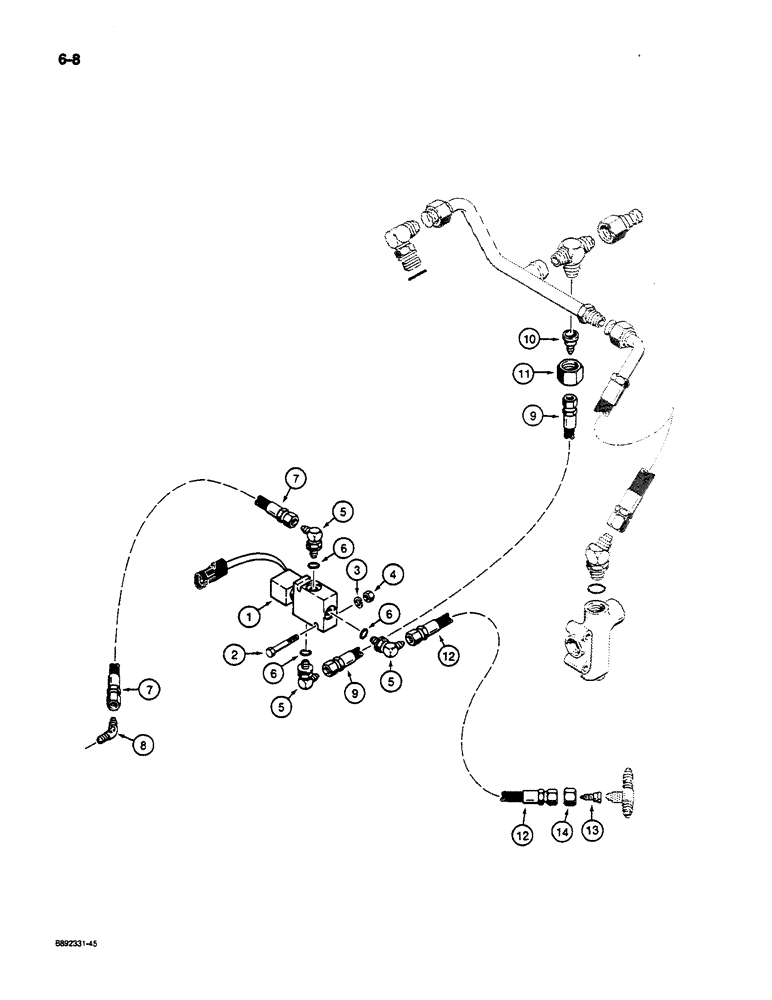

Запчасти Case W14C (6-08) - TRANSMISSION CLUTCH CUTOUT CIRCUIT (06) - POWER TRAIN

1

L127535

VALVE

ASSEMBLY - solenoid, transmission clutch cutout

1шт.

connects to rear harness, parts list Figure 6-10

1шт.

2

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

2шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

5

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, adj, 7/16-20 inch flare x O-ring boss

3шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

7

L127628

HOSE

- 381 mm long, solenoid valve upper, Serial Range: port-transmission

1шт.

control valve

1шт.

8

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree, 7/16-20 flare x 1/8 inch PT

1шт.

9

L127629

HOSE

- 457 mm long, solenoid valve lower, Serial Range: port-steering

1шт.

pressure check tee, item 4 on Figure 5-06

1шт.

10

218-794

REDUCER,37 Degree, 3/4" x 1/4" Tube

- 3/4 tube OD x 7/16-20 inch flare, at steering

1шт.

pressure check tee

1шт.

11

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - 3/4 inch tube OD

1шт.

12

L127629

HOSE

- 457 mm long, solenoid valve side port to tee on rear

1шт.

brake return line, see Figure 7-08 for tee, item 28

1шт.

13

218-791

REDUCER,37 Degree, 1/2" x 1/4" Tube

- 1/2 tube OD x 7/16-20 inch flare

1шт.

14

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - 1/2 inch tube OD

1шт.
