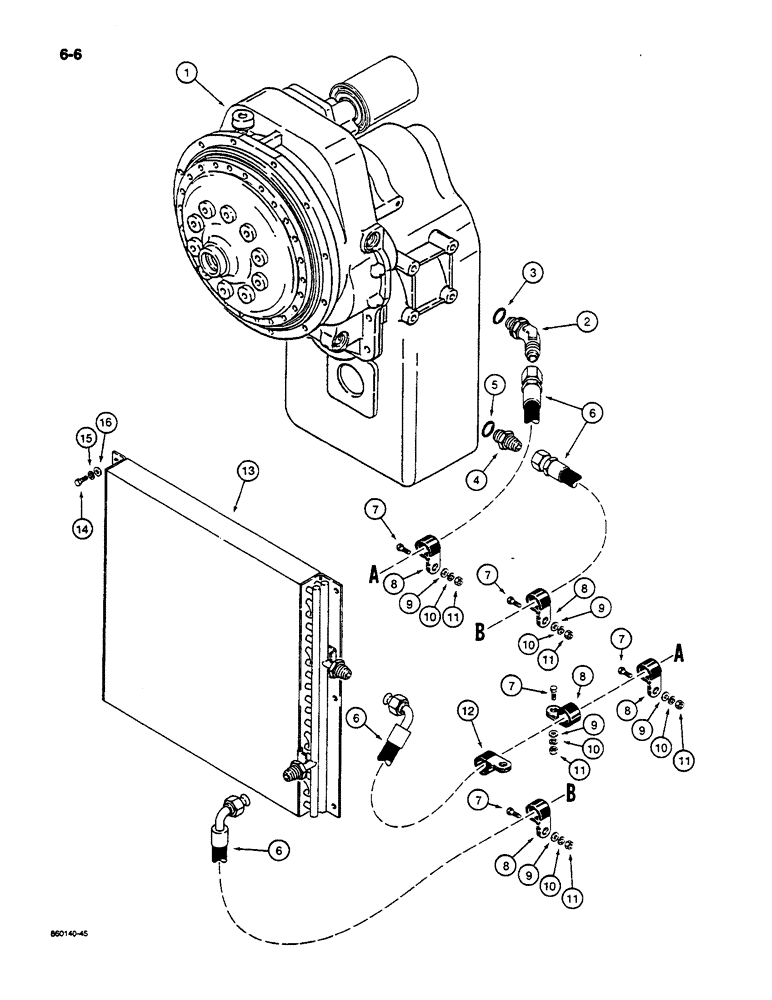

Запчасти Case W14C (6-06) - TRANSMISSION HYDRAULIC CIRCUIT (06) - POWER TRAIN

1

L127681

TRANSMISSION

ASSEMBLY - includes parts on Figures 6-14 through 6-40

1шт.

2

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, adjustable, 1-1/16-12 inch thread

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

L113477

HOSE ASSY.

HOSE - 87 inch long, Serial Range: transmission-cooler

2шт.

7

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

5шт.

8

D39138

CLAMP

- hoses

5шт.

9

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

5шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

5шт.

12

D43364

CLAMP

- hose, at frame, uses existing radiator guard mounting hardware, see page 9-29, items 2 through 6

1шт.

13

A172527

COOLER, OIL

COOLER - oil, transmission

1шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

15

492-11038

LOCK WASHER,3/8"

6шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.
