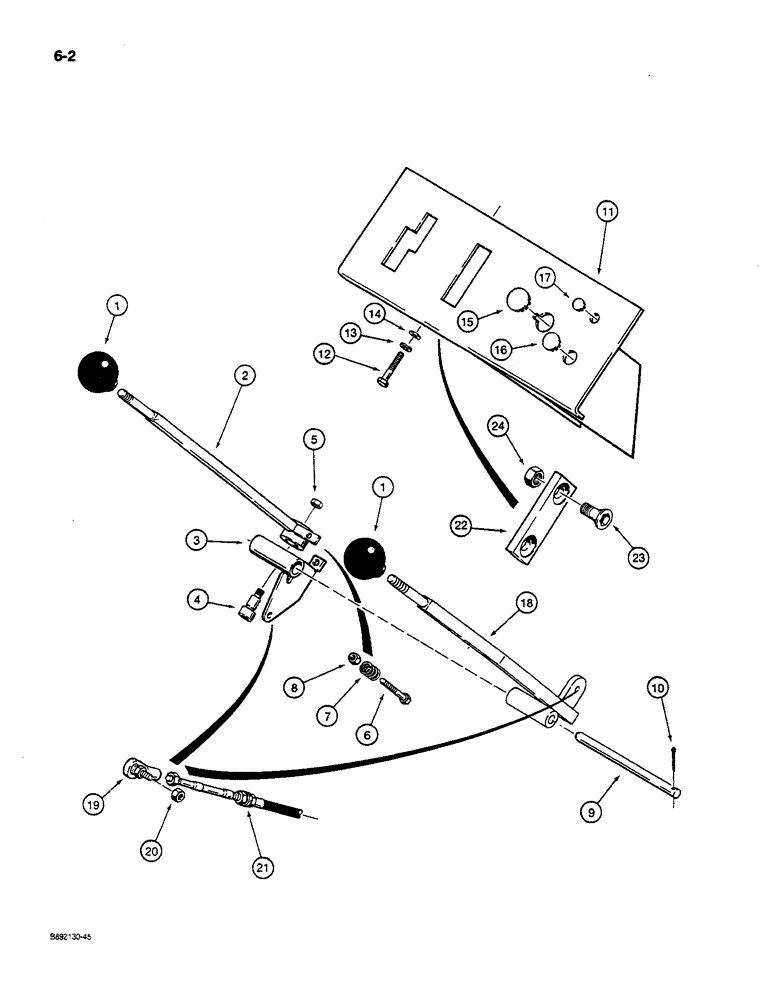

Запчасти Case W14C (6-02) - TRANSMISSION CONTROL PARTS, SHIFT LEVER (06) - POWER TRAIN

1

A23885

KNOB

- transmission control lever

2шт.

2

L117155

LEVER ASSY.

LEVER - transmission control, range

1шт.

3

L115765

PIVOT

- control lever

1шт.

4

L115768

BOLT

- special

1шт.

5

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

6

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

7

F62245

SPRING

- control lever

1шт.

8

131-664

LOCK NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4 inch NC

1шт.

9

L116774

PIN

- pivot, control lever

1шт.

10

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

11

L116790

BRACKET

- transmission control

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

13

492-11038

LOCK WASHER,3/8"

3шт.

14

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3шт.

15

353-408

PLUG,Dome, .750" hole, Nylon

- button, 3/4 inch

1шт.

16

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16 inch

1шт.

17

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

18

L117217

LEVER ASSY.

LEVER - transmission control, forward and reverse

1шт.

19

H358374

PIVOT,1/4" - 28 x 1-1/3"

JOINT - ball, control cable

2шт.

20

131-670

LOCK NUT,1/4"-28, GB

NUT - hex, self-locking, 1/4 inch NF

2шт.

21

L116740

CABLE

- transmission control, parts list Figure 6-04

2шт.

22

L115771

BAR

- shift lever

1шт.

23

164-31

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 3/4"

BOLT - hex socket flat head, 1/4 NC x 3/4 inch, grade 8

2шт.

24

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4 inch NC

2шт.
