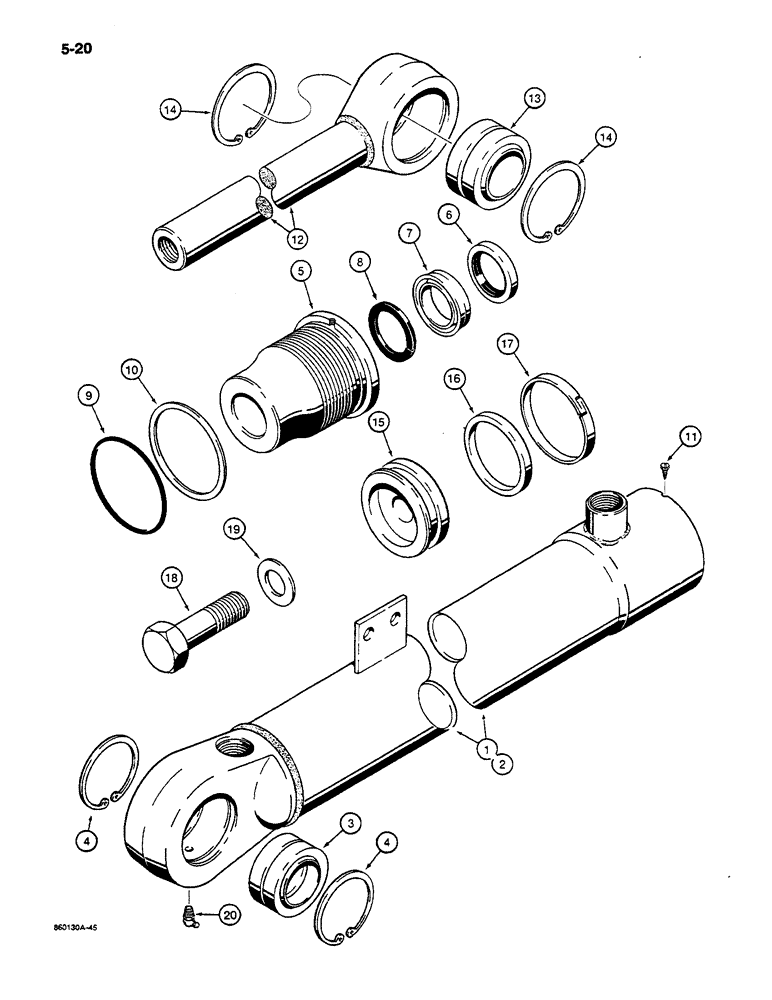

Запчасти Case W14C (5-20) - STEERING CYLINDERS (05) - STEERING

G110186

CYLINDER

- steering, 2-1/2 inch (64 mm) ID x 18-5/16 inch (465 mm) stroke, right-hand

1шт.

G110187

CYLINDER

- steering, 2-1/2 inch (64 mm) ID x 18-5/16 inch (465 mm) stroke, left-hand

1шт.

1

G110188

TUBE

- cylinder body, used with G110186 cylinder

1шт.

2

G110189

TUBE

- cylinder body, used with G110187 cylinder

1шт.

3

G109152

SPHERICAL BEARING,34.92mm ID x 55.56mm OD x 30.15mm W

- self-aligning

1шт.

4

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap, retaining

2шт.

G104008

GLAND

ASSEMBLY - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G109458.

1шт.

7

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of seal kit P/N G109458.

1шт.

8

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

Part of seal kit P/N G109458.

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G109458.

1шт.

10

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N G109458.

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex head, slotted, No. 8 x 3/8 inch

1шт.

12

G107466

ROD ASSY.

ROD ASSEMBLY - piston, 1-1/2 inch (38 mm) diameter

1шт.

13

G109152

SPHERICAL BEARING,34.92mm ID x 55.56mm OD x 30.15mm W

- self-aligning

1шт.

14

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap, bushing retaining

2шт.

15

G104100

PISTON

- one piece

1шт.

16

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

RING - piston

1шт.

Part of seal kit P/N G109458.

1шт.

17

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

SEAL - piston

1шт.

Part of seal kit P/N G109458.

1шт.

18

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, hardened

1шт.

20

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 55/64 inch long

1шт.

G109458

GASKET KIT

KIT - seal, Includes: Ref. 6 - 10, 16, 17 and additional wear rings not used in these cylinders

1шт.
