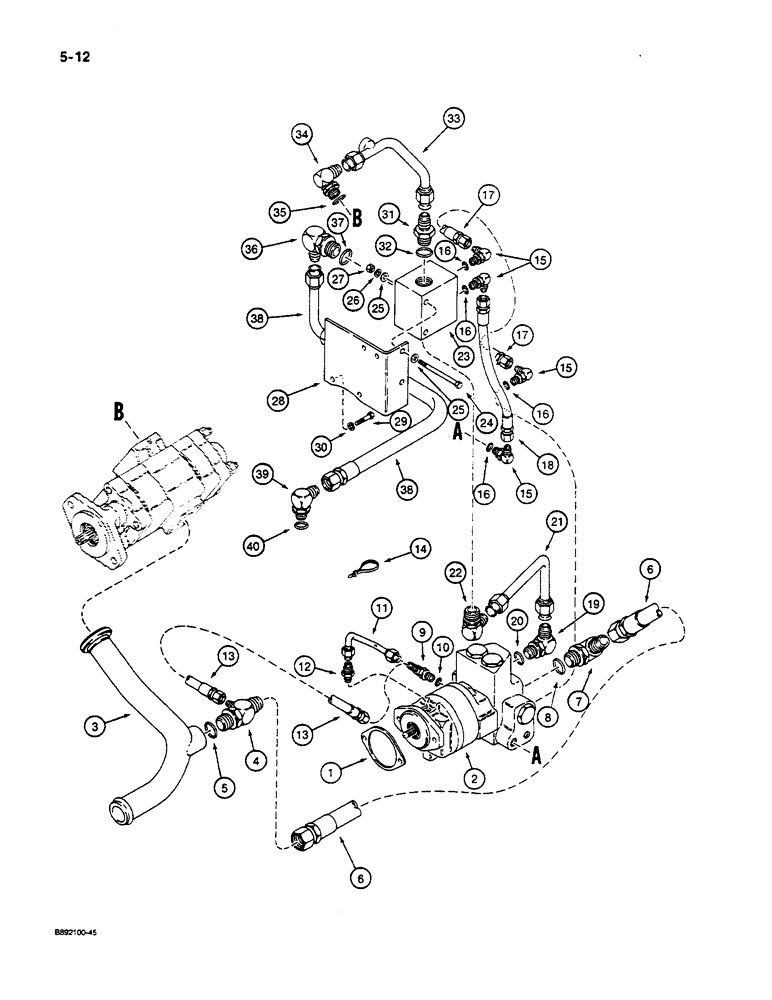

Запчасти Case W14C (5-12) - AUXILIARY STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

A58617

GASKET

- pump

1шт.

2

L106442

PUMP

ASSEMBLY - auxiliary steering, production part number, for service order (4) 14-8124 bolts, N14455 pump assembly

1шт.

and N8173 valve assembly, see parts lists Figure 5-14

1шт.

3

L126796

TUBE,50.8 mm OD

- suction, see Figure 8-04, item 2, for clamping hardware and tube used on models without auxiliary steering

1шт.

4

L117500

TEE

- special

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

6

L117497

HOSE,25.4 mm ID x 500.00 mm, SAE 100R4

Suction 25.4 mm ID x 500.00 mm, SAE 100R4

1шт.

7

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adj, 1-5/16-12 inch flare x O-ring boss

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

9

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 7/16-20 flare branch x flare x adj O-ring boss

1шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

11

L117301

TUBE,6.35 mm OD

- drain

1шт.

12

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, 7/16-20 thread x 1/8 inch PT

1шт.

13

D52712

HOSE ASSY.

HOSE - 27 inch long, drain

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

15

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree adjustable, 7/16-20 thread

4шт.

16

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

17

D52712

HOSE ASSY.

HOSE -27 inch long, pilot, to upper port on check valve

1шт.

18

D61212

HOSE ASSY.

HOSE - 19 inch long, pilot, to lower port on check valve

1шт.

19

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adj, 1-1/16-12 inch flare x O-ring boss

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

21

L117289

TUBE ASSY.,19.05 mm OD x 213 mm L

TUBE - pump to check valve

1шт.

22

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 deg adj, 1-1/16-12 flare x 1-5/16-12 inch O-ring, part of L114148 check valve, parts list Figure 5-16

1шт.

23

L114148

CHECK VALVE

VALVE ASSEMBLY - check, steering, parts list Figure 5-16

1шт.

24

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8 NC x 4-1/4 inch

2шт.

25

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

425-106

NUT,3/8"-16, Cl 5

2шт.

28

L112106

BRACKET

- valve mounting

1шт.

29

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

2шт.

30

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

31

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring

1шт.

32

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

33

L117319

TUBE ASSY.,19.04 mm OD

TUBE - check valve to equipment and steering pump

1шт.

34

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adj, 1-1/16-12 inch flare x O-ring boss

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

36

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 deg adj, 1-1/16-12 flare x 1-5/16-12 inch O-ring

1шт.

37

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

38

L117495

HOSE ASSY.

HOSE - 672 mm long, check valve to steering valve

1шт.

39

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adj, 1-1/16-12 flare x 7/8-14 inch O-ring

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
