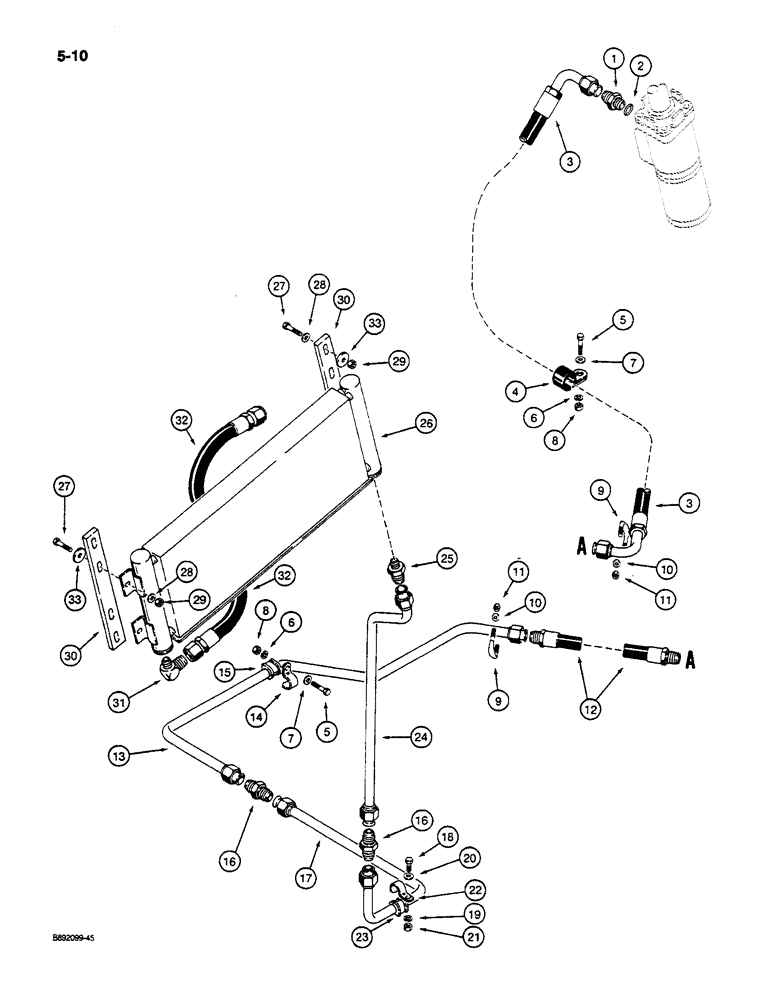

Запчасти Case W14C (5-10) - STEERING HYDRAULIC CIRCUIT, RETURN LINE AND COOLER (05) - STEERING

1

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4 x 1-1/16 inch thread

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

L118145

HOSE ASSY.

HOSE - 1473 mm long, return from steering valve

1шт.

4

D34033

CLAMP

- hose

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

L78948

U-BOLT

- tube mounting

2шт.

11

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

10

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

12

L115833

HOSE

- 26 inch long, steering return, across hinge

1шт.

13

L116936

TUBE ASSY.,19.05 mm OD

TUBE - to cooler, lower left

1шт.

14

D74192

CLAMP

- tube

1шт.

15

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR - tube clamp

1шт.

16

218-436

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

CONNECTOR - straight, 1-1/16-12 inch flare

2шт.

17

L116938

TUBE ASSY.,19.05 mm OD

TUBE - steering return, crossover

1шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

19

492-11038

LOCK WASHER,3/8"

1шт.

20

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

D74192

CLAMP

- tube

1шт.

23

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR - tube clamp

1шт.

24

L118079

TUBE,19.05 mm OD x 656.2, 143.5 mm L

- steering return, to cooler

1шт.

25

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, 1-1/16 NF flare x 3/4 PT

1шт.

26

L115713

COOLER

- hydraulic oil

1шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

8шт.

29

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC

8шт.

30

L115705

STRAP

- cooler mounting

2шт.

31

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, 1-1/16-12 flare x 3/4 inch PT

1шт.

32

L116917

HOSE ASSY.

HOSE - 20-1/2 inch long, from, Serial Range: cooler-filter

1шт.

33

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- special, hardened

8шт.
