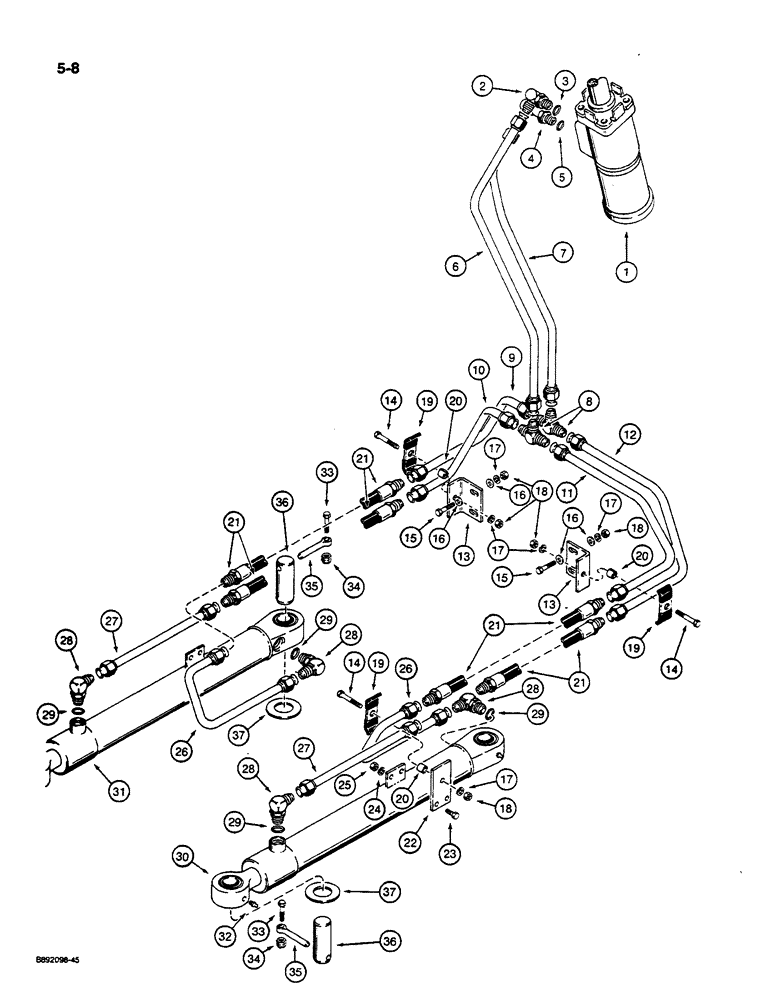

Запчасти Case W14C (5-08) - STEERING HYDRAULIC CIRCUIT, CONTROL VALVE TO CYLINDERS (05) - STEERING

1

L127619

VALVE

ASSEMBLY - steering control, parts list Figure 5-04

1шт.

2

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4-16 x 7/8-14 inch thread

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

L113702

ELBOW

- special, 90 degree

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

L113116

TUBE ASSY.,15.88 mm OD x 447.3, 486.9 mm L

TUBE - steering valve to tee, rear

1шт.

7

L113118

TUBE ASSY.,15.88 mm OD

TUBE - steering valve to tee, front

1шт.

8

218-595

TEE,7/8"-14, 37 Degree

- 7/8-14 inch flare

2шт.

9

L113875

TUBE ASSY.,15.88 mm OD

TUBE - manifold, to closed end of left-hand cylinder

1шт.

10

L113877

TUBE ASSY.,15.88 mm OD

TUBE - manifold, to rod end of left-hand cylinder

1шт.

11

L113871

TUBE ASSY.,15.88 mm OD

TUBE - manifold, to closed end of right-hand cylinder

1шт.

12

L113873

TUBE ASSY.,15.88 mm OD

TUBE - manifold, to rod end of right-hand cylinder

1шт.

13

L113819

BRACKET

- tube mounting

2шт.

14

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

15

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

4шт.

16

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

8шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

19

D33316

CLAMP

- tube

4шт.

20

D76209

SPACER

- tube

4шт.

21

H263293

HOSE,0.50" ID x 17.00", SAE 100R2

to Steering Cylinders 0.50" ID x 17.00", SAE 100R2

4шт.

22

L114052

BRACKET

- tube mounting

2шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

425-106

NUT,3/8"-16, Cl 5

4шт.

26

L118452

TUBE ASSY.,15.88 mm OD x 256.5, 143.2 mm L

TUBE - steering cylinder, closed end

2шт.

27

L118450

TUBE ASSY.,15.88 mm OD x 412.2 mm L

TUBE - steering cylinder, rod end

2шт.

28

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 7/8-14 inch thread

4шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

G110186

CYLINDER

- steering, right-hand, parts list Figure 5-20

1шт.

31

G110187

CYLINDER

- steering, left-hand, parts list Figure 5-20

1шт.

32

219-3

LUBE NIPPLE,1/8" - 27 NPTF

Fitting - grease, straight, 1/8 PT x 1-17/64 inch long

2шт.

33

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

34

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC

4шт.

35

L74982

END

PIN - lock, cylinder

4шт.

36

L47952

PIN,34.91mm OD x 95.25mm L

- cylinder mounting

4шт.

37

A31269

WASHER,38.89mm ID x 73.03mm OD x 3.17mm Thk

- thrust, special

4шт.
