Запчасти Case W14C (5-06) - STEERING HYDRAULIC CIRCUIT, PUMP TO CONTROL VALVE (05) - STEERING

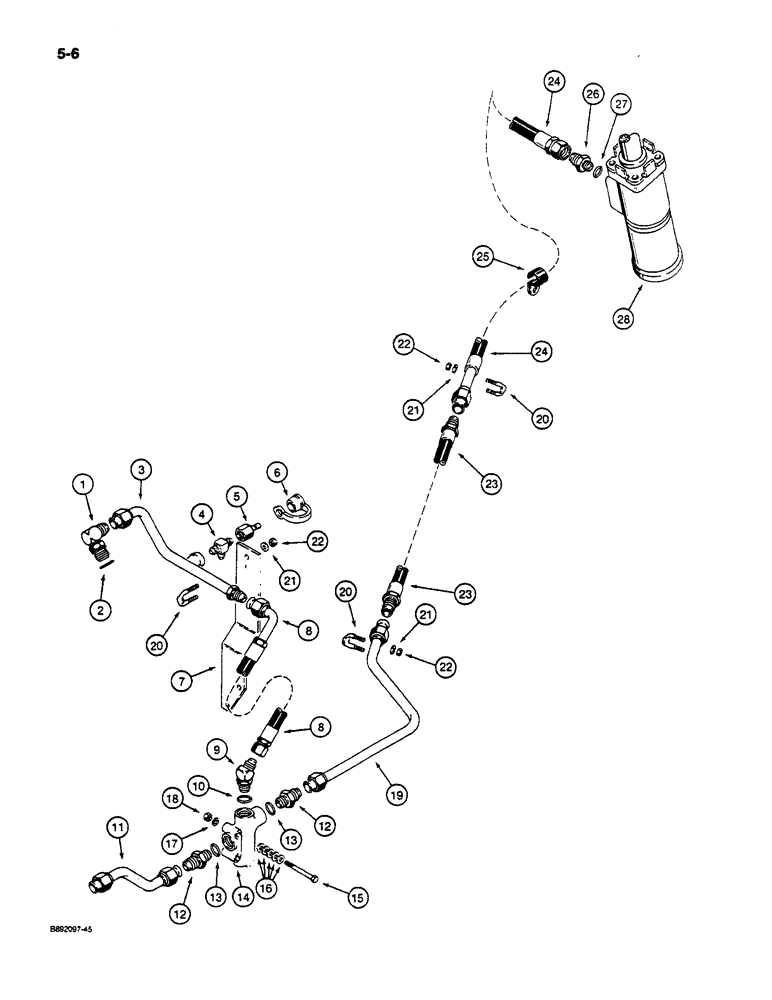

Схема запчастей Case W14C - (5-06) - STEERING HYDRAULIC CIRCUIT, PUMP TO CONTROL VALVE (05) - STEERING

Артикул

Название

Примечание

Количество

1

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adj, 1-1/16-12 inch flare x O-ring boss

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

L116887

TUBE ASSY.,223.4 mm L

TUBE - steering supply, from pump

1шт.

4

218-616

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Run

- connector, 3/4 PT x 1-1/16 inch thread

1шт.

See Figure 6-08 for transmission clutch cutout circuit.

1шт.

5

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING - quick disconnect

1шт.

6

H434163

DUST CAP

CAP - coupler dust

1шт.

7

L118142

BRACKET

- tube support

1шт.

8

L116838

HOSE ASSY.

HOSE - 2300 mm long, steering supply from pump

1шт.

9

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adj, 7/8-14 inch flare x O-ring boss

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

L116919

TUBE ASSY.,19.05 mm OD x 242.7, 119.6 mm L

TUBE - return to filter

1шт.

12

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

L51457

VALVE

ASSEMBLY - flow control, parts list Figure 5-18

1шт.

15

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

2шт.

16

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

10шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

19

L113804

TUBE ASSY.,19.05 mm OD x 48.14, 275.5 mm L

TUBE - flow control valve to steering valve

1шт.

20

L78948

U-BOLT

- tube mounting

3шт.

21

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

6шт.

22

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

6шт.

23

L77031

HYDRAULIC HOSE,0.63" ID x 20.00"

Steering Supply, Across Hinge 0.63" ID x 20.00"

1шт.

24

L117744

HOSE

- 1473 mm long, steering supply to steering valve

1шт.

25

D34033

CLAMP

- hose, use existing hardware on manifold tube mounting

1шт.

bracket, see Figure 5-08, items 15 through 18

1шт.

26

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4 x 1-1/16 inch thread

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

L127619

VALVE

ASSEMBLY - steering control, parts list Figure 5-04

1шт.
