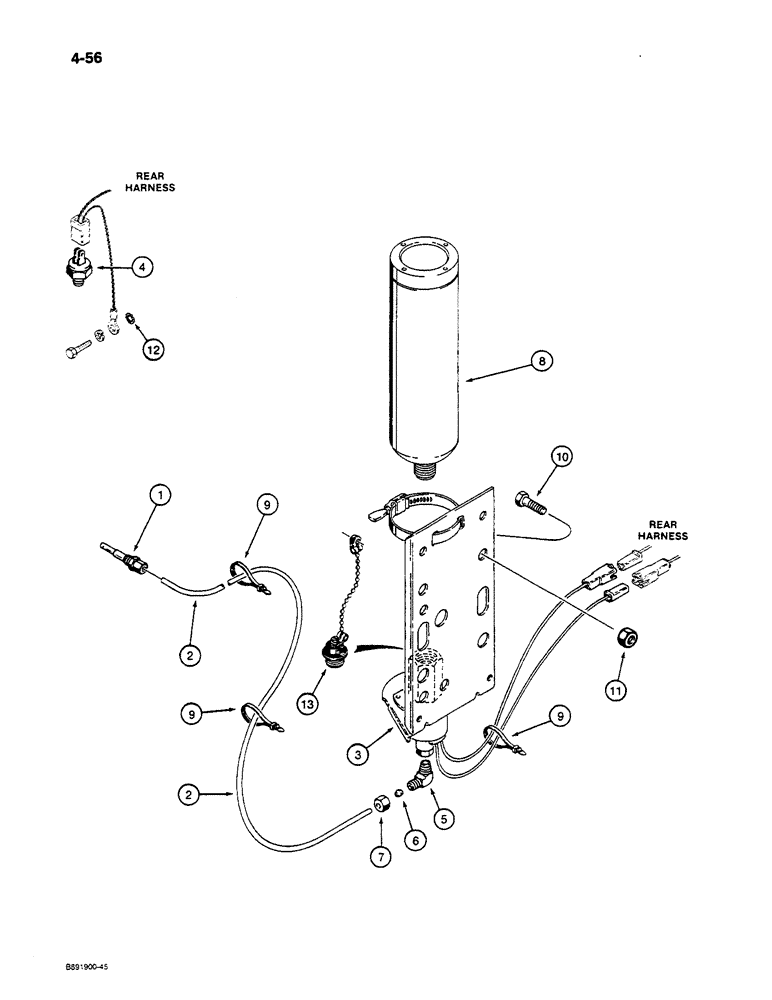

Запчасти Case W14C (4-56) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

L115827

GLOW PLUG

KIT - cold start, for service order component parts below

1шт.

1

A172900

NOZZLE CAP

NOZZLE - cold start injector, dual orifice nozzle, component parts not serviced separately

1шт.

N8728

TUBE,1/8" OD x 96" L

KIT - tube, includes items 6 and 7 below

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - valve to injector nozzle, 24 inch (610 mm) long, cut from 96 inch (2438 mm) tube provided in kit

1шт.

3

N14224

VALVE

- 3 cc starting fluid injection, with bracket, component parts not serviced separately

1шт.

4

A172117

SWITCH

- thermostat, circuit breaking

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

6

222-650

SLEEVE,1/8" Tube, Comp

1шт.

7

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

8

A171940

CYLINDER

CONTAINER - starting fluid

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

10

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

11

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

4шт.

12

193-74

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER - internal-external tooth lock, 5/16 inch

1шт.

13

N8826

PLUG

- with chain, place in starting fluid valve when starting fluid container is not in place

1шт.
