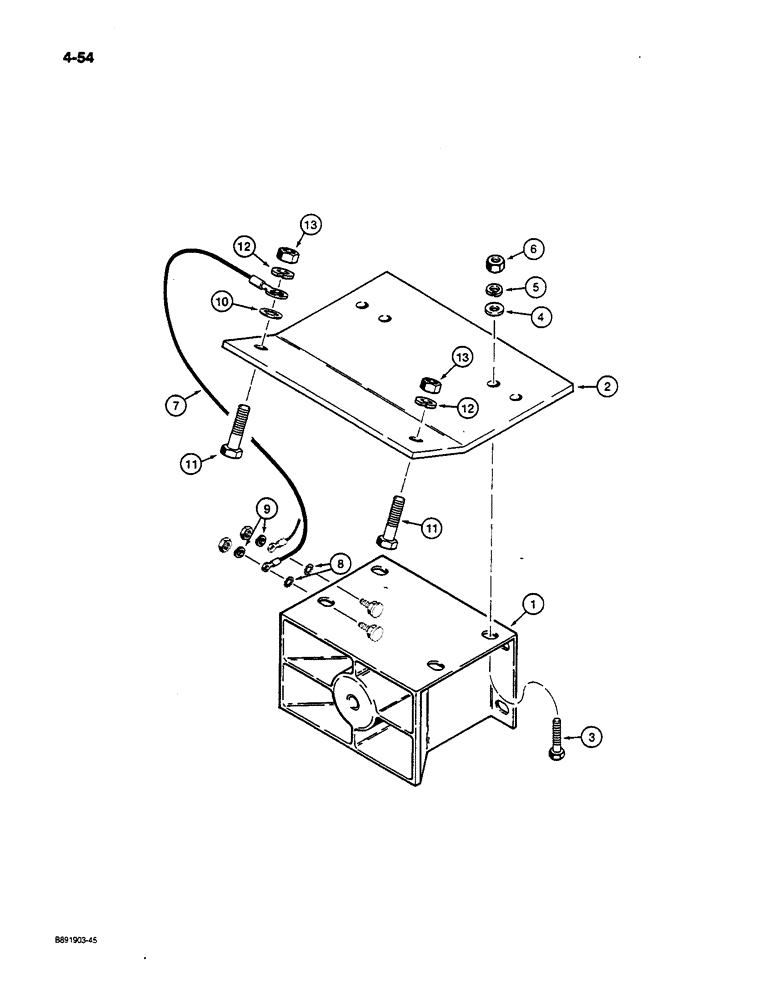

Запчасти Case W14C (4-54) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

D121972

ALARM

- backup

1шт.

2

L126819

BRACKET

- backup alarm

1шт.

3

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex head, 1/4 NC x 7/8 inch

2шт.

4

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x .065 inch

2шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, 1/4 inch NC

2шт.

7

L115696

HARNESS

WIRE - ground

1шт.

8

193-119

LOCK WASHER,Ext-Int Tooth, #8

WASHER - internal-external tooth lock, No. 8

2шт.

9

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

10

193-72

LOCK WASHER

- lock, internal tooth, 3/8 inch

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.
