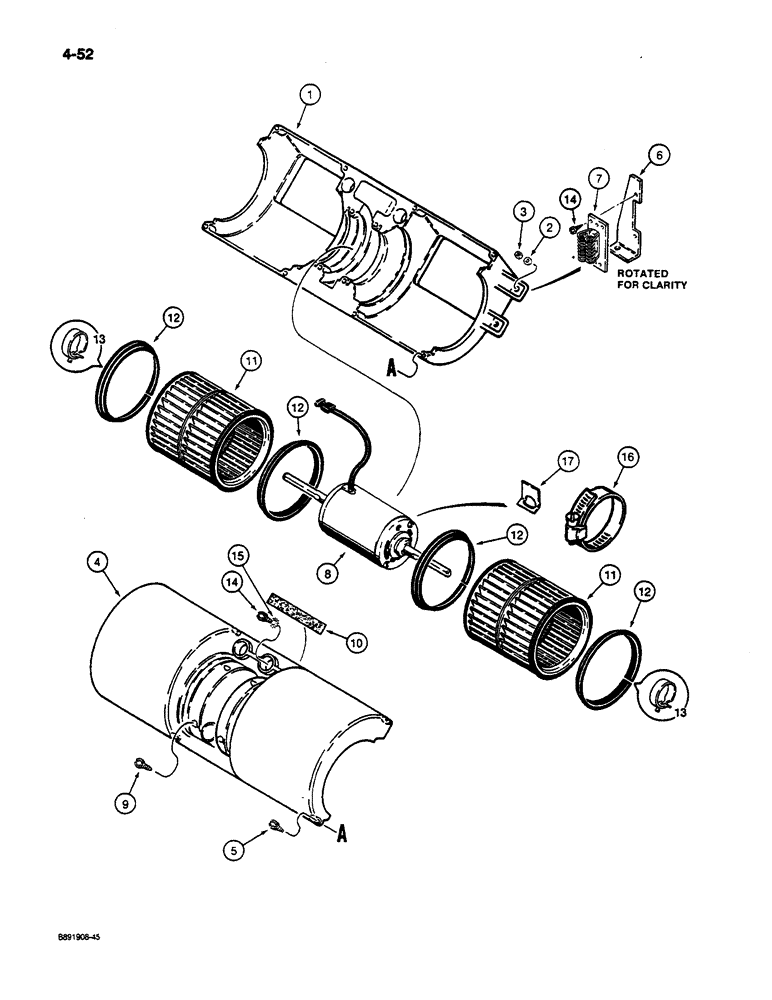

Запчасти Case W14C (4-52) - CAB BLOWER (04) - ELECTRICAL SYSTEMS

1

F64740

HOUSING

- fans, lower

1шт.

2

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

3

F45165

SPECIAL NUT,#10-24

NUT - special, self-locking, No. 10 NC

4шт.

4

F64741

HOUSING

- fans, upper

1шт.

5

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

8шт.

6

97389C1

SUPPORT

BRACKET - resistor mounting

1шт.

7

F44903

RESISTOR

- blower

1шт.

8

A187600

MOTOR, ELECTRIC

MOTOR - blower, 24 volt, with molded terminal

1шт.

9

187-1928

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW - self-tapping, No. 10 - 16 x 1 inch

4шт.

10

REF

INSTRUCTION

SEAL - foam, upper fan housing, 4 inch (102 mm) long, cut from F64119 bulk, see below

1шт.

11

F64935

BLOWER,Fan

FAN - blower

2шт.

12

F64739

RING

- fan retaining

4шт.

13

F64936

CLAMP

- steel spring, fan retaining

2шт.

14

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, No. 10 - 16 x 1/2 inch

4шт.

15

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - external-internal tooth lock, 1/4 inch

1шт.

16

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj, 2-1/16 to 3 inch dia

1шт.

17

R51563

CLIP,ELECTRICAL

CLIP - motor retaining clamp

1шт.

F64119

SEALING STRIP

SEAL - foam, bulk roll, 100 ft (3048 cm) long

1шт.
