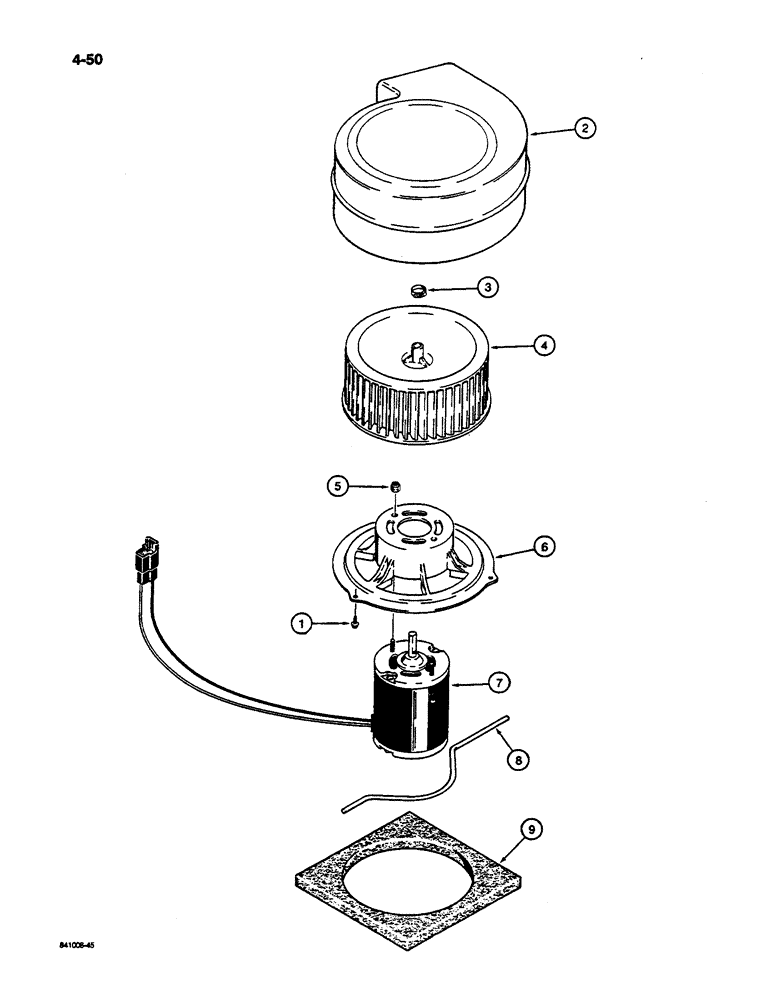

Запчасти Case W14C (4-50) - DEFROSTER (04) - ELECTRICAL SYSTEMS

F97106

ELECTRIC MOTOR

DEFROSTER - cab, order component parts for service

1шт.

1

187-1095

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - hex washer head, self-tapping, No. 8 NC x 1/2 inch

3шт.

2

F45101

HOUSING

- defroster

1шт.

3

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj. #4, 0.25/0.62 Type F Worm

1шт.

4

F45102

FAN

- defroster

1шт.

5

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, No. 10 NF

2шт.

6

F45022

BRACKET

MOUNT - defroster

1шт.

7

F96790

MOTOR, ELECTRIC

MOTOR - 24 volt

1шт.

8

L112593

ROD

- defroster retaining

1шт.

9

L108631

SEAL

- foam

1шт.
