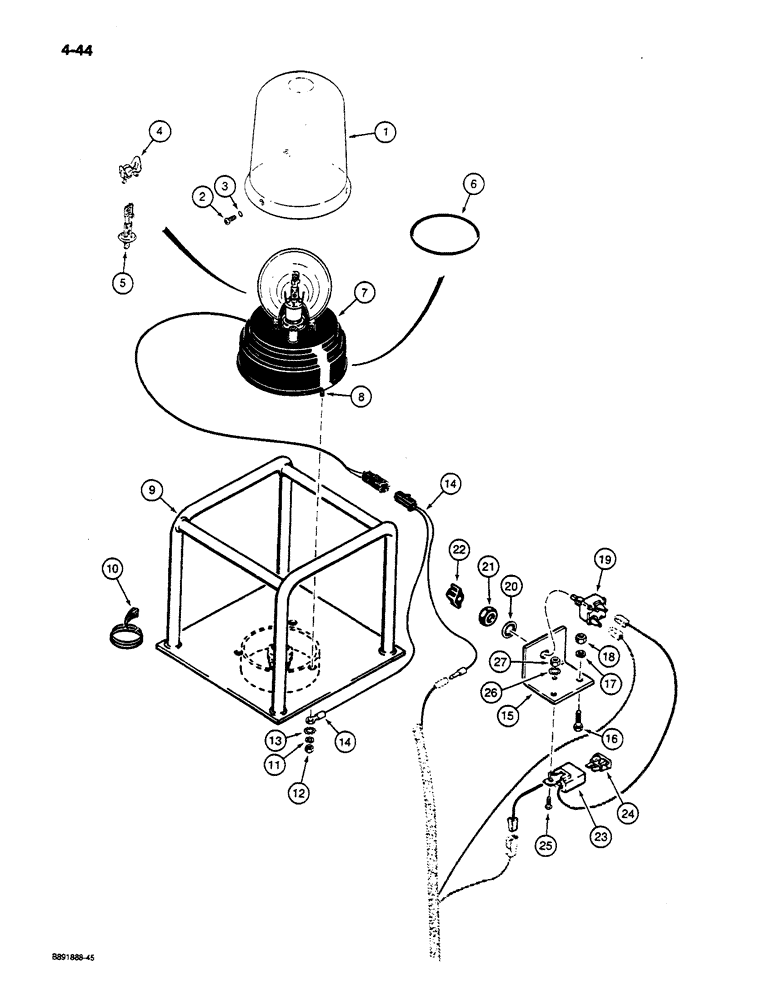

Запчасти Case W14C (4-44) - ROTATING BEACON ASSEMBLY AND MOUNTING (04) - ELECTRICAL SYSTEMS

A187528

LIGHT ASSY.

BEACON ASSEMBLY - rotating, used on models with cab or canopy

1шт.

1

A187542

LENS

- beacon, amber, used on models with cab or canopy

1шт.

2

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

- drive, No. 8 x 1/2 inch, Lens mounting, Used on models with cab or canopy

3шт.

3

S5598

O-RING,0.106" ID x 0.218" OD x 0.73"

SEAL - lens mounting screw, used on models with cab or caonpy

3шт.

4

NSS

NOT SOLD SEPARAT

CLIP - bulb, used on models with cab or canopy

1шт.

5

A187543

BULB,H1 24V 70W

- halogen, rotating beacon, used on models with cab or canopy

1шт.

6

A187575

O-RING

Drive Motor, Rotating Beacon, Used on Models with Cab or Canopy

1шт.

7

NSS

NOT SOLD SEPARAT

BASE ASSEMBLY - with drive motor, rotating beacon, used on models with cab or canopy

1шт.

8

814-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, 6 - 1 x 20 mm, used on models with cab or canopy

3шт.

9

L127768

CAGE

- beacon, used on models with cab or canopy

1шт.

10

L109042

GASKET

TRIM - edge, 12-7/8 inch (350 mm) long, cut from D52812 trim, see below, used on models with cab or canopy

1шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, , Used on Models with Cab or Canopy M6

3шт.

12

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm, Grade 10, used on models with cab or canopy

3шт.

13

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal/external lock, 1/4 inch, used on models with cab or canopy

1шт.

14

L127770

ELECTRICAL WIRE

WIRE - jumper, used on models with cab or canopy

1шт.

15

L114146

BRACKET

PLATE - beacon switch mounting, used on models with canopy only

1шт.

16

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Used on models with canopy only Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Used on models with canopy only 1/4"

2шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Used on models with canopy only

2шт.

19

L70872

SWITCH

- beacon, used on models with canopy only

1шт.

20

193-31

LOCK WASHER,Int Tooth, 7/16"

WASHER - internal tooth lock, 7/16 inch, used on models with canopy only

1шт.

21

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- special, used on models with canopy only

1шт.

22

L74694

KNOB

- beacon switch, used on models with canopy only

1шт.

23

L107649

HARNESS

BLOCK - fuse assembly, used on models with caonopy only

1шт.

24

A149799

FUSE

- 7.5 amp, used on models with canopy only

1шт.

25

182-46

SCREW,Sl Pan Hd, #6 - 32 x 1/2"

- machine, pan head slotted, No. 6 NC x 1/2 inch, used on models with canopy only

1шт.

26

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, , Used on models with canopy only Ext Tooth, #6

1шт.

27

129-5

NUT,#6-32

Used on models with canopy only #6-32

1шт.

D52812

RUBBER STRIP

TRIM - 83 inch (2108 mm) long, cut to required length, used on models with canopy only

1шт.
