Запчасти Case W14C (4-42) - TURN SIGNAL AND FLASHER LAMP (04) - ELECTRICAL SYSTEMS

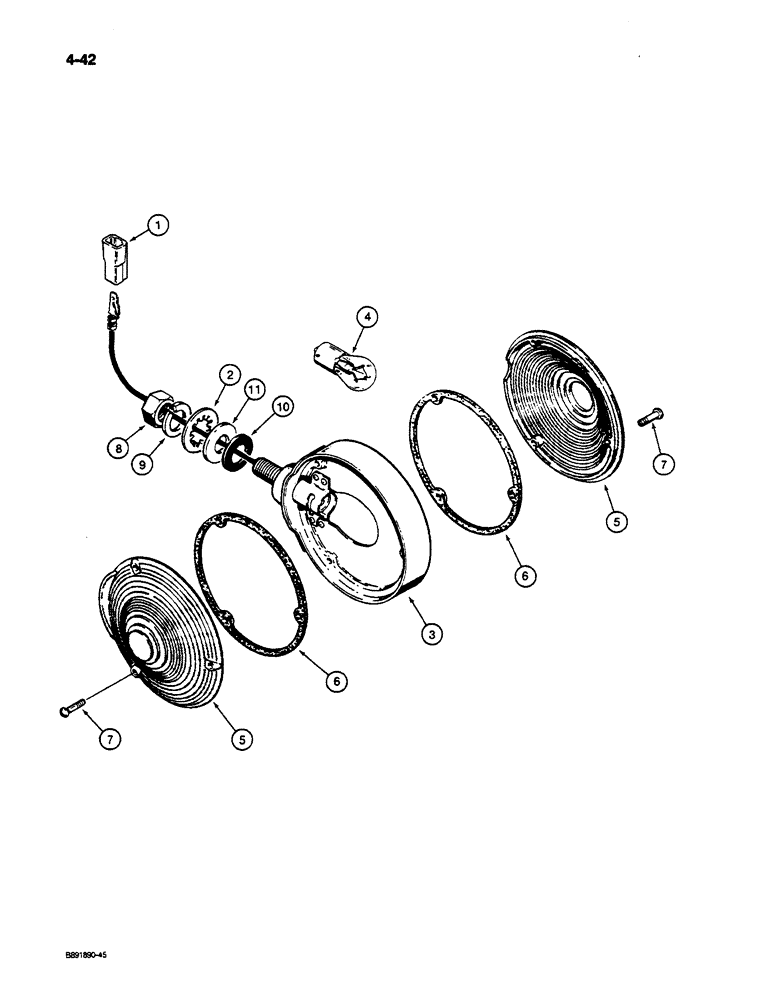

Схема запчастей Case W14C - (4-42) - TURN SIGNAL AND FLASHER LAMP (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

223-166

CONNECTOR, ELEC

CONNECTOR - female

2шт.

2

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - lock, internal tooth, 1/2 inch

2шт.

L114187

SUPPORT

LAMP - turn signal and flasher

2шт.

3

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

4

L32257

BULB

- lamp, No. 307

1шт.

L32214

LENS

KIT - lamp, flasher

2шт.

5

NSS

NOT SOLD SEPARAT

LENS - lamp

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

7

182-47

SCREW,Sl Pan Hd, #6 - 32 x 5/8"

- machine, pan head slotted, No. 6 NC x 5/8 inch

3шт.

8

129-125

NUT,1/2"-20, G5

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

10

L32256

WASHER

- rubber

1шт.

11

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

1шт.

Выбрано товаров: 13
