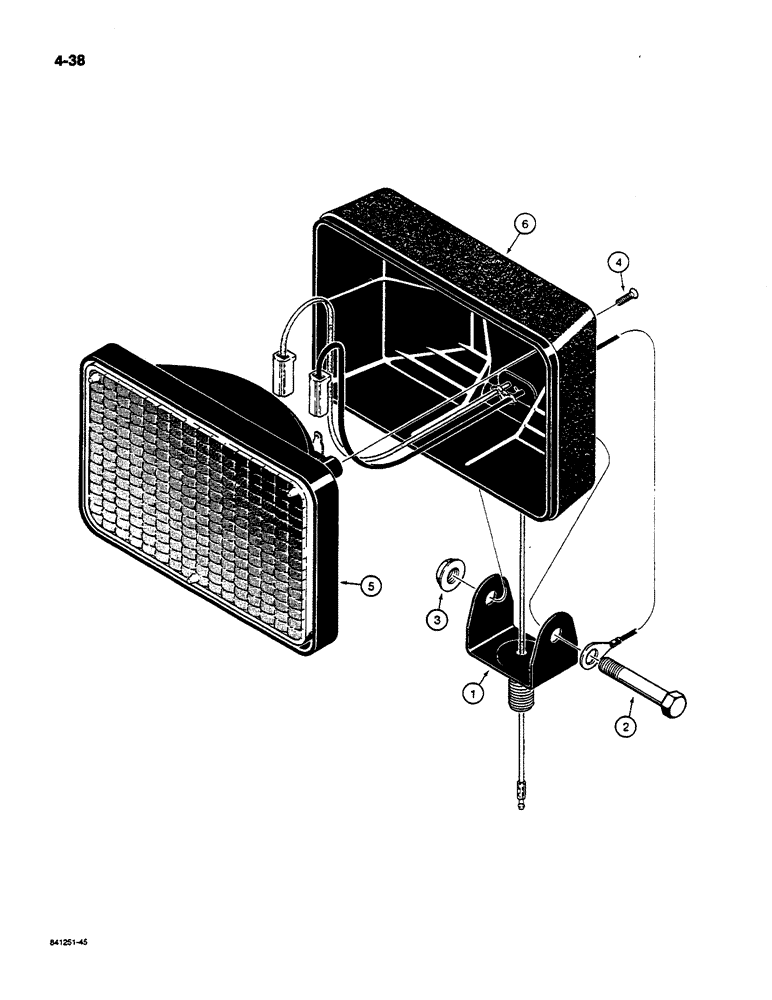

Запчасти Case W14C (4-38) - LAMPS - FRONT AND REAR (04) - ELECTRICAL SYSTEMS

L113374

LIGHT

LAMP ASSEMBLY - front, driving

2шт.

1

N8347

SUPPORT

BRACKET - lamp, front driving

1шт.

2

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Front driving lamp Hex, 5/16"-18 x 2", G5

1шт.

3

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - flange, 5/16 inch NC, front driving lamp

1шт.

4

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, No. 8 - 18 x 1/2 inch, front driving lamp

2шт.

5

N9427

HEADLIGHT

BULB - sealed beam, front driving lamp

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - lamp, front driving

1шт.

L113373

LIGHT ASSY.

LAMP ASSEMBLY - flood, front and rear chassis lamps

2-4шт.

1

N8347

SUPPORT

BRACKET - lamp, front and rear chassis flood

1шт.

2

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Front and rear chassis flood lamps Hex, 5/16"-18 x 2", G5

1шт.

3

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - flange, 5/16 inch NC, front and rear chassis flood lamps

1шт.

L113375

LIGHT ASSY.

LAMP ASSEMBLY - flood, front and rear chassis flood lamps

1шт.

4

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, No. 8 - 18 x 1/2 inch, front and rear chassis flood lamps

2шт.

5

F45305

HEADLIGHT

BULB - sealed beam, front and rear chassis flood lamps

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - lamp, front and rear chassis flood lamps

1шт.

L113375

LIGHT ASSY.

LAMP ASSEMBLY - flood, cab or canopy

2шт.

4

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, No. 8 - 18 x 1/2 inch, cab or canopy flood lamps

2шт.

5

F45305

HEADLIGHT

BULB - sealed beam, cab or canopy flood lamps

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - lamp, cab or canopy flood

1шт.
