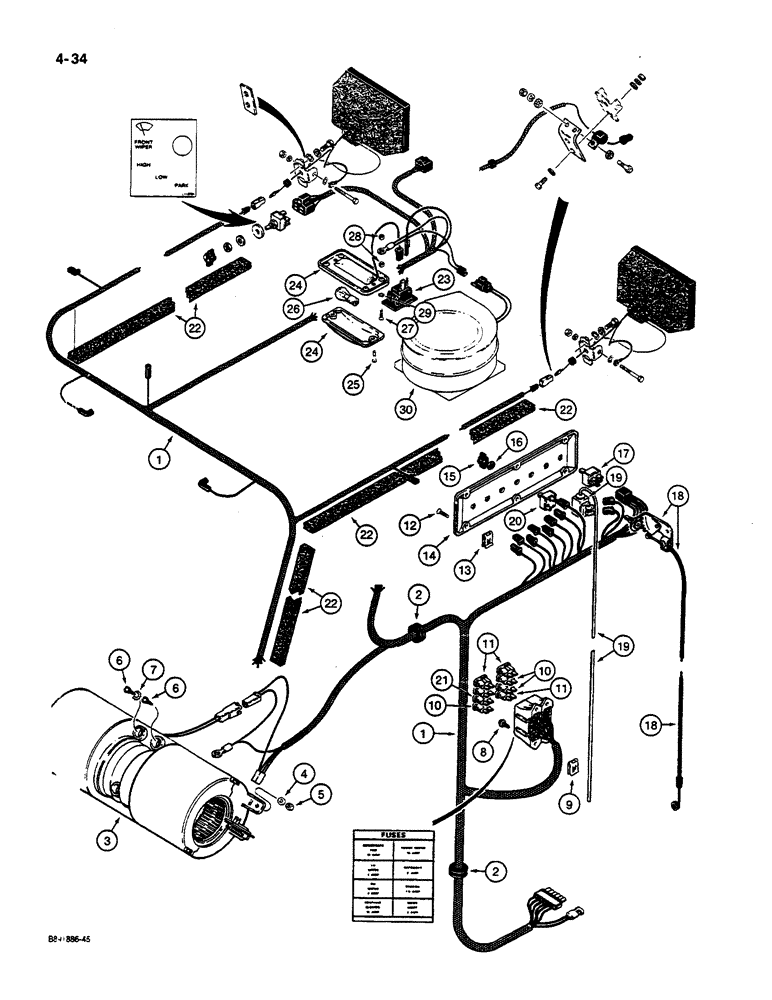

Запчасти Case W14C (4-34) - CAB AND CANOPY WIRING (04) - ELECTRICAL SYSTEMS

1

A187761

HARNESS

- cab

1шт.

2

A75989

GROMMET

- harness

2шт.

3

REF

INSTRUCTION

BLOWER ASSEMBLY - cab, parts list page 4-53

1шт.

4

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16

4шт.

5

F45165

SPECIAL NUT,#10-24

NUT - special

4шт.

6

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, No. 10 NC x 1/2 inch

2шт.

7

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - external-internal tooth lock, 1/4 inch

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - special

4шт.

9

131-121

SPRING NUT,Tinn, U, #10-24

4шт.

10

A149796

FUSE

- 3 amp

1-3шт.

11

A149800

FUSE,10 Amp

- 10 amp

2-3шт.

12

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, oval head, No. 10 NC x 3/4 inch

6шт.

13

131-143

SPRING NUT,Tinn, U, #10-24

6шт.

14

F96787

COVER

PANEL - control

1шт.

15

L74694

KNOB

- control

2-7шт.

16

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- switch

2-7шт.

17

A42622

SWITCH

- blower

1шт.

18

L108188

CABLE

- heat control

1шт.

19

L108189

SWITCH

- air conditioner thermostat

1шт.

20

L70872

SWITCH

- accessories

1-4шт.

21

A149799

FUSE

- 7.5 amp

1шт.

22

F45178

FOAM

SUPPORT - harness

3шт.

23

L108547

SWITCH

- dome lamp

1шт.

24

F96897

LAMP

- dome

1шт.

25

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

- machine, round head, No. 8 NC x 1/4 inch

2шт.

26

D71459

LAMP

BULB - dome lamp, 24V, No. 1591

1шт.

27

171-238

SCREW,Sl Flat Hd, #8 - 32 x 5/8"

- machine, slotted head, No. 8 NC x 5/8 inch

4шт.

28

129-16

NUT,#8-32

5шт.

29

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

30

F97106

ELECTRIC MOTOR

DEFROSTER - cab, parts list Figure 4-50

1шт.
