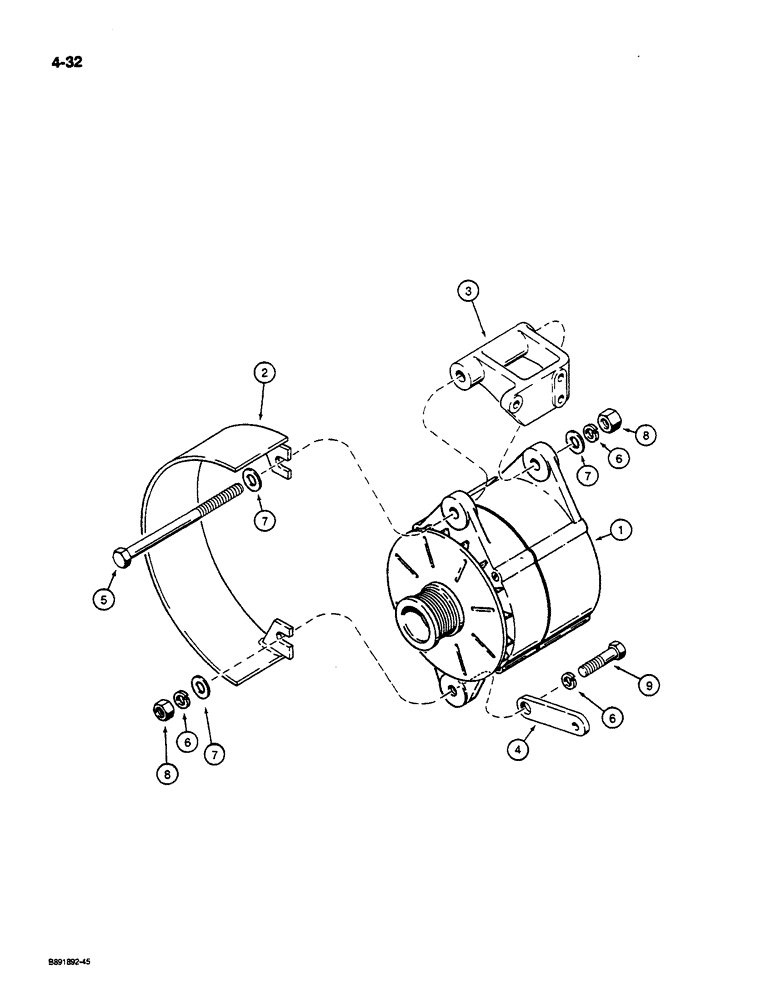

Запчасти Case W14C (4-32) - 65 AMP ALTERNATOR AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

ALTERNATOR ASSEMBLY - 24 volt, 65 ampere, Robert Bosch part number 0 120 468 054, parts list Figure 4-04

1шт.

1

1964860C1R

REMAN-ALTERNATOR

W14C CASE WHEEL LOADER, ALTERNATOR ASSEMBLY, 24 volt, 65 ampere

1шт.

1

1964860C1C

CORE-ALTERNATOR

Return Number

1шт.

2

L127941

GUARD ASSY.

GUARD - alternator fan

1шт.

3

J910923

BRACE

BRACKET - alternator mounting

1шт.

4

J910924

PLATE

BRACE - alternator mounting

1шт.

5

413-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

BOLT - hex, 1/2 NC x 6-1/2 inch

1шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

7

196-15

WASHER,17/32" x 1 1/6" x .134"

WASHER - flat, 17/32 x 1-1/16 x 1/8 inch, hardened

3шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

9

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

BOLT, Hex, 1/2"-13 x 1 3/4", G5

1шт.
