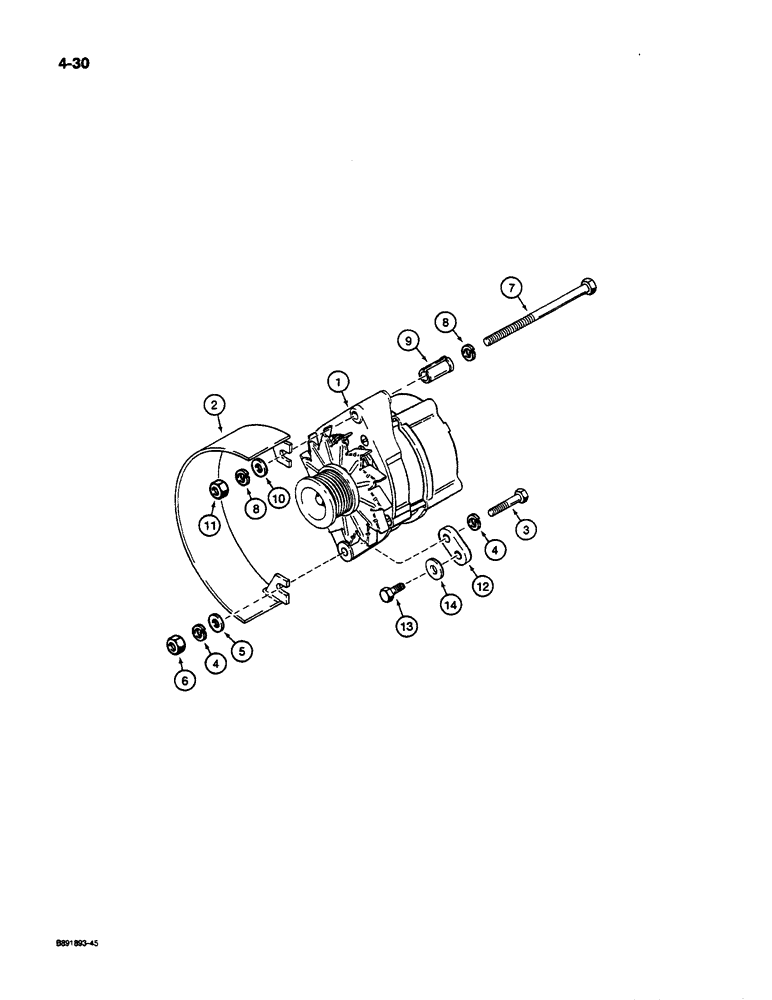

Запчасти Case W14C (4-30) - 45 AMP ALTERNATOR AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

A186124

ALTERNATOR

ASSEMBLY - 24 volt, 45 amperes, Bosch part number 0 120 489 481, parts list Figure 4-02

1шт.

1

AR186124

REMAN-ALTERNATOR

ASSEMBLY - 24 volt, 45 amperes

1шт.

1

AC186124

CORE-ALTERNATOR

Return Number

1шт.

2

L117386

GUARD ASSY.

GUARD - alternator fan

1шт.

3

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

4

892-1108

LOCK WASHER,M8

2шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

6

825-1108

NUT,Hex, M8, Cl 8

1шт.

7

L118068

BOLT

- 10 mm x 140 mm, special

1шт.

8

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

2шт.

9

J902469

SPACER

- alternator

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

11

825-1110

NUT,M10, Cl 8

hex M10, Cl 8

1шт.

12

J903089

SUPPORT

BRACE - alternator mounting

1шт.

13

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm

1шт.

14

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.
