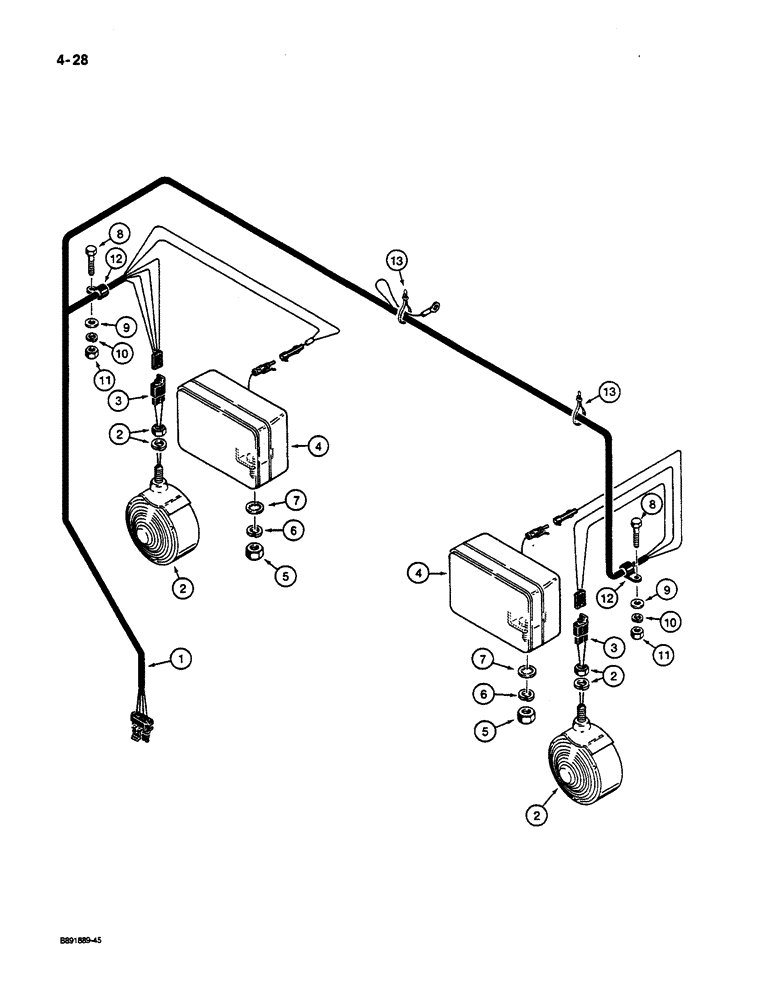

Запчасти Case W14C (4-28) - REAR LAMP HARNESS (04) - ELECTRICAL SYSTEMS

1

L128098

HARNESS

- rear lamps

1шт.

2

L114617

LAMP

- stop and tail, parts list Figure 4-40

2шт.

3

223-173

CONNECTOR, ELEC

CONNECTOR - wire

2шт.

4

L113373

LIGHT ASSY.

LAMP - flood, parts list Figure 4-38

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

7

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - lock, internal tooth, 1/2 inch

2шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

9

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

49845

CLAMP

- harness

2шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
