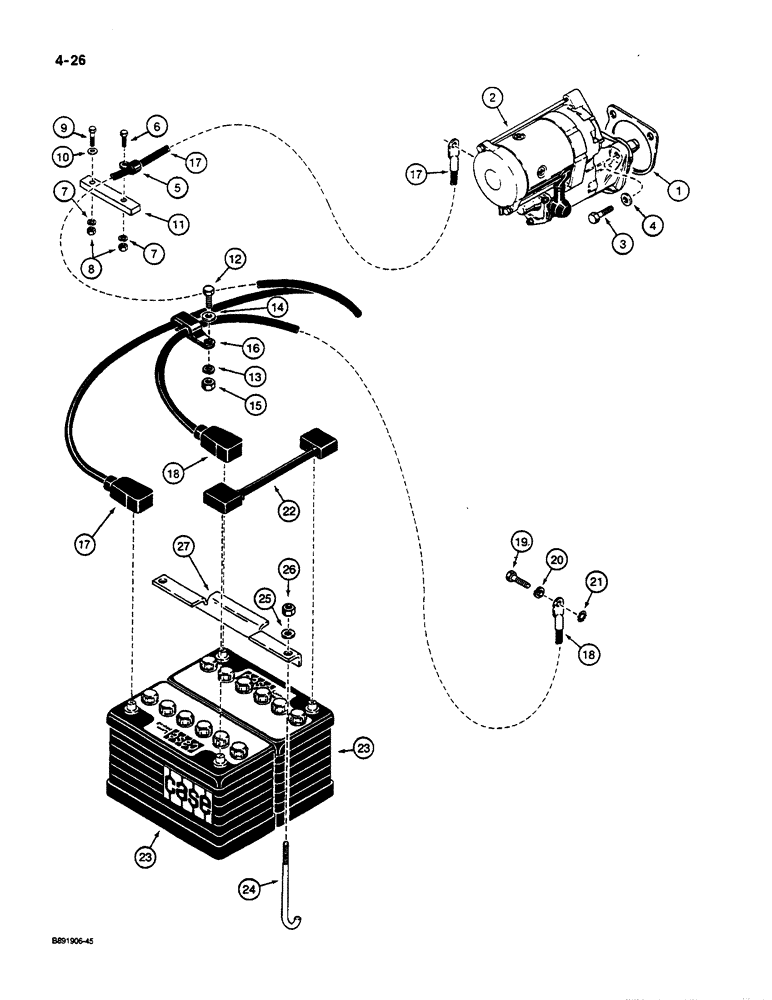

Запчасти Case W14C (4-26) - STARTER, BATTERIES, AND BATTERY CABLES (04) - ELECTRICAL SYSTEMS

1

L112209

GASKET,0.79mm Thk

GASKET - starter

1шт.

2

D129494

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list Figure 4-06

1шт.

2

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

2

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN D129494

1шт.

2

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

3

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

Bolt, Hex, M10 x 40, 8.8, Full Thd

3шт.

4

496-21041

WASHER,13/32" x 13/16" x .089", HDN

WASHER - flat, 13/32 x 13/16 x 3/32", hardened

3шт.

5

49838

CLAMP

CLAMP - cable

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex, 3/8 NC x 1 inch

1шт.

7

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

8

425-106

NUT,3/8"-16, Cl 5

NUT, 3/8"-16, G5

2шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - hex, 3/8 NC x 1-1/2 inch

1шт.

10

495-21044

WASHER,3/8"

WASHER, (flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

11

L14266

BRACKET

SPARE PART BRACKET - support, cable mounting

1шт.

Ref: #11 Per ECN S9226-05 obsolete L14266

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT - hex, 5/16 NC x 1 inch

1шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

495-21038

WASHER,5/16"

WASHER, (flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

15

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

1шт.

16

L19029

CLAMP

CLAMP - cable

1шт.

17

L128096

CABLE

CABLE - positive, Serial Range: battery-starter

1шт.

18

L114086

CABLE

CABLE - ground, battery ground

1шт.

19

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

BOLT - hex, 12 - 1.75 x 20 mm

1шт.

20

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm

1шт.

21

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

22

L114087

CABLE

CABLE -, Serial Range: battery-battery

1шт.

23

BHC30

BATTERY, DRY

BATTERY DRY BATTERY - 12 volt

2шт.

24

T31481

SCREW

BOLT - special, battery hold down

2шт.

25

495-21038

WASHER,5/16"

WASHER, (flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

26

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

27

L112208

BRACKET

BRACKET - battery hold down

1шт.
