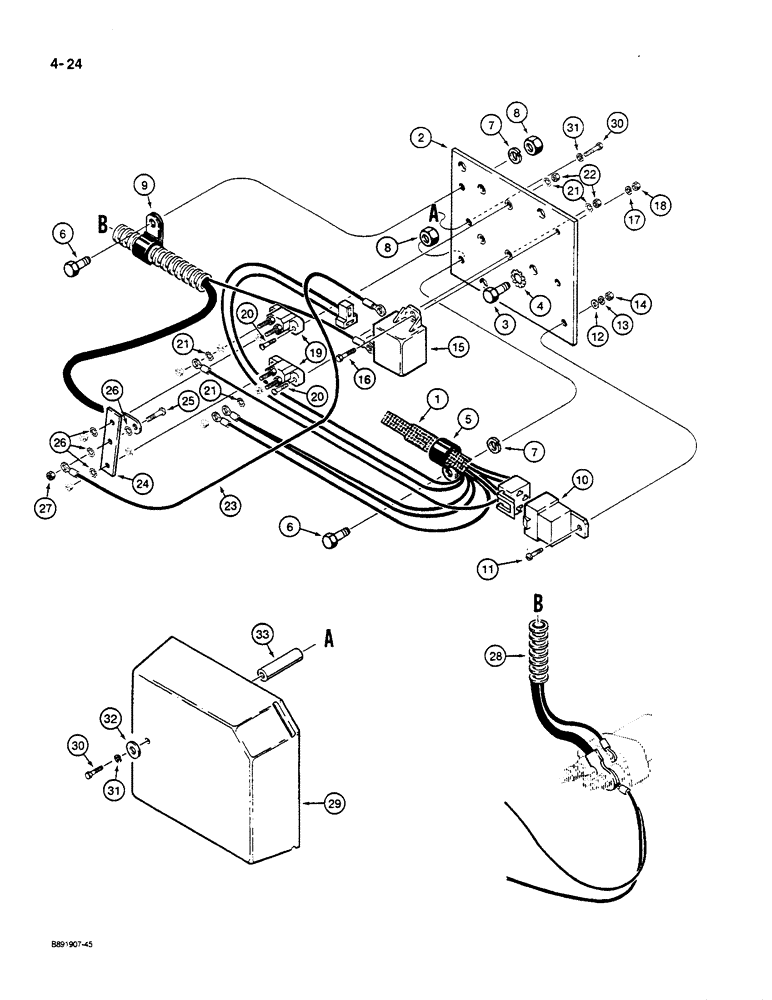

Запчасти Case W14C (4-24) - REAR HARNESS TO RELAY PANEL (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
NLS
NO LONGER SERVICED
- rear
1шт.
3
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
1шт.
4
193-72
LOCK WASHER
- internal-external tooth lock, 3/8 inch
1шт.
5
NLS
NO LONGER SERVICED
- harness
1шт.
6
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
- hex, 5/16 NC x 1 inch
2шт.
8
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
2шт.
9
49858
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
- cable
1шт.
10
L118429
RELAY
- cab
1шт.
11
182-561
SCREW,Slotted Pan Hd, #10-24 x 3/4"
- pan head slotted, No. 10 NC x 3/4 inch
1шт.
12
495-21025
WASHER
- flat, No. 10
1шт.
13
492-11010
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
14
129-17
NUT,Hex, #10 - 24
NUT - hex, No. 10 NC
1шт.
15
L115883
RELAY
- starter
1шт.
16
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex, 1/4 NC x 3/4 inch
2шт.
17
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
18
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
2шт.
19
L114199
BREAKER
- circuit, 30 amp
2шт.
20
182-561
SCREW,Slotted Pan Hd, #10-24 x 3/4"
- pan head slotted, No. 10 NC x 3/4 inch
4шт.
21
193-70
LOCK WASHER,Ext-Int Tooth, #10
WASHER, LOCK, Ext-Int Tooth, #10
6шт.
22
129-17
NUT,Hex, #10 - 24
NUT - hex, No. 10 NC
4шт.
23
L114058
HARNESS
WIRE - jumper
1шт.
24
L114028
BAR
- connector
1шт.
25
440-11010
SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"
- machine, pan head, cross recess, No. 10 NC x 5/8 inch
1шт.
26
193-70
LOCK WASHER,Ext-Int Tooth, #10
WASHER, LOCK, Ext-Int Tooth, #10
4шт.
27
129-17
NUT,Hex, #10 - 24
NUT - hex, No. 10 NC
1шт.
28
L128097
CABLE
-, Serial Range: starter-relay
1шт.
29
L114612
COVER
- relay panel
1шт.
30
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex, 1/4 NC x 3/4 inch
2шт.
31
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
32
495-21031
WASHER,1/4"
- flat, 5/16 x 47/64 x .065 inch
1шт.
33
L114195
SPACER
- relay cover
1шт.
Выбрано товаров: 33
