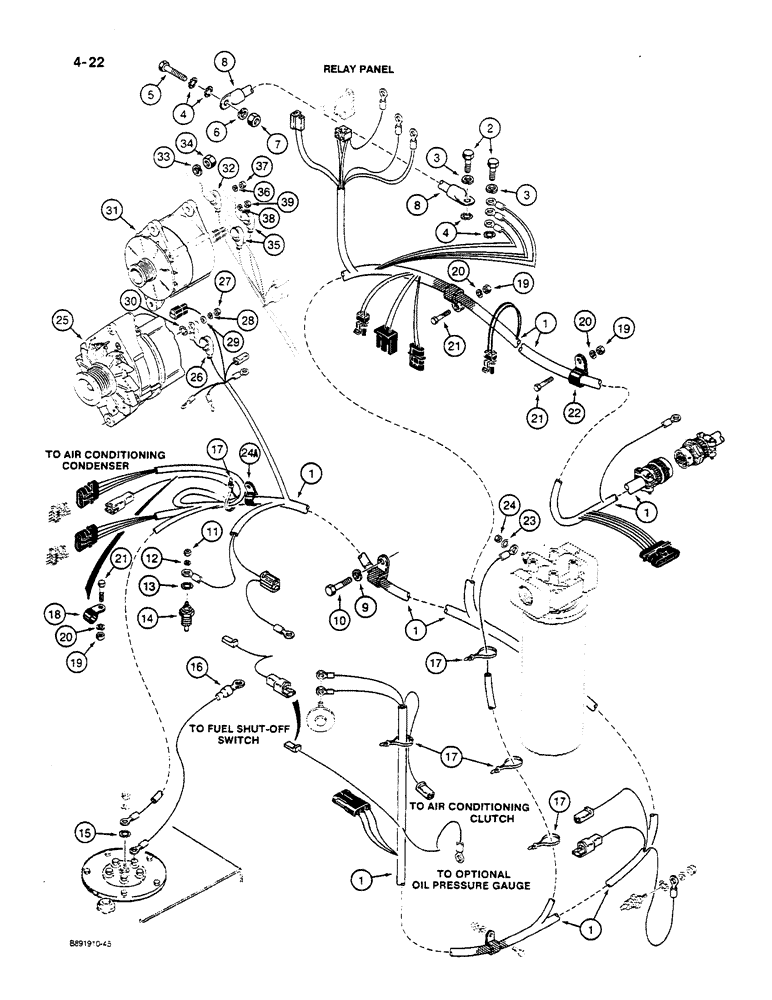

Запчасти Case W14C (4-22) - REAR HARNESS - ALTERNATOR (04) - ELECTRICAL SYSTEMS

1

L127637

HARNESS

- rear

1шт.

2

814-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

BOLT - hex, 12 mm - 1.75 x 16 mm

2шт.

3

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm

2шт.

4

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

4шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

BOLT, Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

8

L115112

CABLE

CABLE - ground

1шт.

9

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm

1шт.

10

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

BOLT - hex, 12 mm - 1.75 x 20 mm

1шт.

11

129-37

NUT,#10-32

NUT, #10-32

1шт.

12

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

13

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

14

L104249

SWITCH

SENDER - water temperature

1шт.

15

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

16

L114608

HARNESS

WIRE - ground

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

18

49838

CLAMP

CLAMP - harness

1шт.

19

425-106

NUT,3/8"-16, Cl 5

NUT, 3/8"-16, G5

3шт.

20

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex, 3/8 NC x 1 inch

3шт.

22

R24840

CLAMP,1.12", Coat, 0.41" Bolt Hole, P Type

CLAMP - harness

1шт.

23

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

24

129-37

NUT,#10-32

NUT, #10-32

1шт.

24a

49838

CLAMP

CLAMP - harness, uses existing battery cable clamp hardware, see Figure 4-26

1шт.

25

A186124

ALTERNATOR

ALTERNATOR ASSEMBLY - 45 amp, parts list Figure 4-2, see

1шт.

*

Figure 4-30 for mounting parts, used on models with 45 amp alternator

1шт.

25

AR186124

REMAN-ALTERNATOR

ALTERNATOR ASSEMBLY - 45 amp

1шт.

25

AC186124

CORE-ALTERNATOR

Return Number

1шт.

26

L126713

BOOT

BOOT - alternator, used on models with 45 amp

1шт.

27

825-1106

NUT,Hex, M6, Cl 8

NUT - hex, 6 mm - 1, used on models with 45 amp alternator

1шт.

28

892-1106

LOCK WASHER,M6

LOCK WASHER, , Used on models with 45 amp alternator M6

1шт.

29

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

WASHER - flat, 7 x 13 x 2 mm, used on models with 45 amp alternator

1шт.

30

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal-external tooth lock, 1/4 inch, used on models with 45 amp alternator

1шт.

31

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

ALTERNATOR ASSEMBLY - 65 amp, parts list Figure 4-4 see

1шт.

31

Figure 4-32 for mounting parts

1шт.

31

1964860C1R

REMAN-ALTERNATOR

W14C CASE WHEEL LOADER, ALTERNATOR ASSEMBLY, 24 volt, 65 ampere

1шт.

31

1964860C1C

CORE-ALTERNATOR

Return Number

1шт.

32

L126713

BOOT

BOOT - alternator, used on models with 65 amp

1шт.

33

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Used on models with 65 amp alternator 7/16"

1шт.

34

425-107

NUT,7/16"-14, G5

NUT - hex, 7/16 inch NC, Used on models with 65 amp alternator

1шт.

35

S64612

BOOT

BOOT - rubber, used on models with 65 amp alternator

2шт.

36

892-11004

LOCK WASHER,M4

WASHER, LOCK, , Used on models with 65 amp alternator M4

1шт.

37

825-1404

NUT,M4, Cl 8

NUT, , Used on models with 65 amp alternator M4, Cl 8

1шт.

38

892-11005

LOCK WASHER,M5

WASHER, LOCK, , Used on models with 65 amp alternator M5

1шт.

39

825-1405

NUT,M5, Cl 8

NUT - hex, 5 mm, class 10.9, Used on models with 65 amp alternator

1шт.
