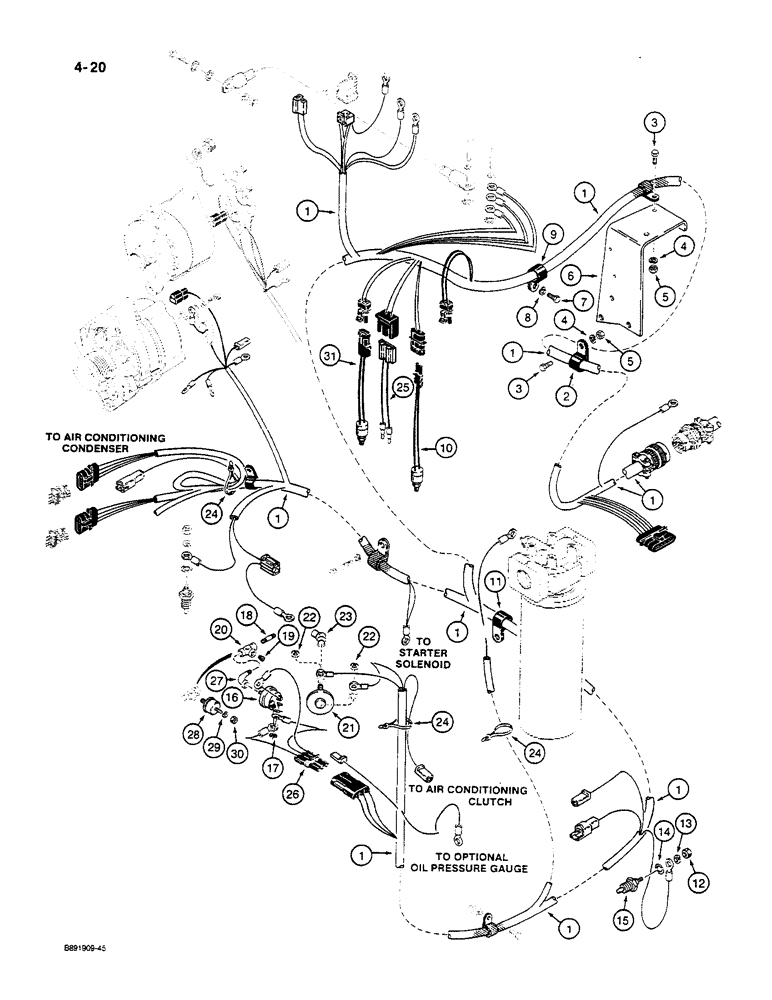

Запчасти Case W14C (4-20) - REAR HARNESS - ENGINE RIGHT-HAND SIDE (04) - ELECTRICAL SYSTEMS

1

NLS

NO LONGER SERVICED

- rear

1шт.

2

D40471

CLAMP

- harness

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

L127571

BRACKET

- harness

1шт.

7

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

9

51200329

CLIP

CLAMP - harness

1шт.

10

L116711

SWITCH

- clutch pressure

1шт.

11

49836

CLAMP

- harness, uses transmission housing hardware

1шт.

12

129-37

NUT,#10-32

1шт.

13

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

14

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

15

L104249

SWITCH

SENDER - torque converter oil temperature

1шт.

16

L112707

SWITCH

SENDER - oil pressure

1шт.

17

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

18

221-1714

PIPE,Nipple, 1/8" NPT x 1 1/2", X-Strng

NIPPLE - extra strong, 1/8 PT x 1-1/2 inch

1шт.

19

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

20

221-1421

TEE,Pipe, 1/8" NPT

- taper, 1/8 inch PT

1шт.

21

L112211

SWITCH

- vacuum, air restriction indicator

1шт.

22

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

23

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street, See Figure 2-48 item 22 for special fitting used with turbocharged engine 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

L127410

CLOTHES

JUMPER - neutral start

1шт.

26

L123675

HARNESS

JUMPER - oil pressure sender

1шт.

27

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- street, 90 degree, 1/8 PT, at oil pressure sender

1шт.

28

W10140

TRANSMITTER

SENDER - engine oil pressure

1шт.

29

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

30

129-37

NUT,#10-32

1шт.

31

L116235

IGNITION SWITCH

SWITCH - pressure, backup alarm

1шт.
