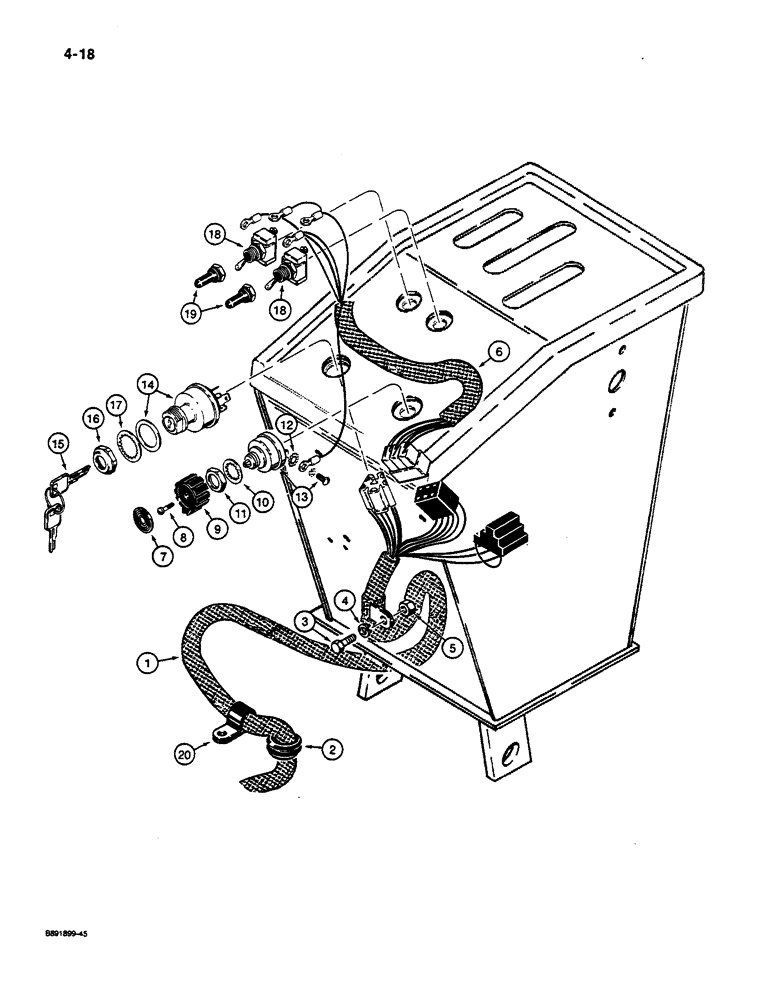

Запчасти Case W14C (4-18) - FRONT HARNESS - CONSOLE (04) - ELECTRICAL SYSTEMS

1

L127636

HARNESS

- front

1шт.

2

A75989

GROMMET

- control console

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

6

L127634

HARNESS

- console

1шт.

7

A160035

PLATE

- control knob

1шт.

8

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- pan head slotted, No. 8 NC x 5/8 inch

1шт.

9

A141735

KNOB

- lamp switch

1шт.

10

193-101

LOCK WASHER,Int Tooth, 11/16"

WASHER - lock, internal tooth lock, 11/16 inch

1шт.

11

A20467

NUT

- hex, self-locking, special

1шт.

12

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

13

A141607

SWITCH

- lamp

1шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - key

1шт.

14

NSS

NOT SOLD SEPARAT

SWITCH - less keys

1шт.

15

A77313

SET OF 2 KEYS

KEY - set of two; metal without padding

1шт.

16

A77314

NUT

- hex

1шт.

17

193-37

LOCK WASHER,Int Tooth, 1"

WASHER, LOCK, Int Tooth, 1"

1шт.

18

L101999

SWITCH

- toggle, loader detent and transmission declutch

2шт.

19

L101998

BOOT

COVER - switch protector, used on models with canopy only

2шт.

20

49838

CLAMP

- harness, uses existing hardware

1шт.
