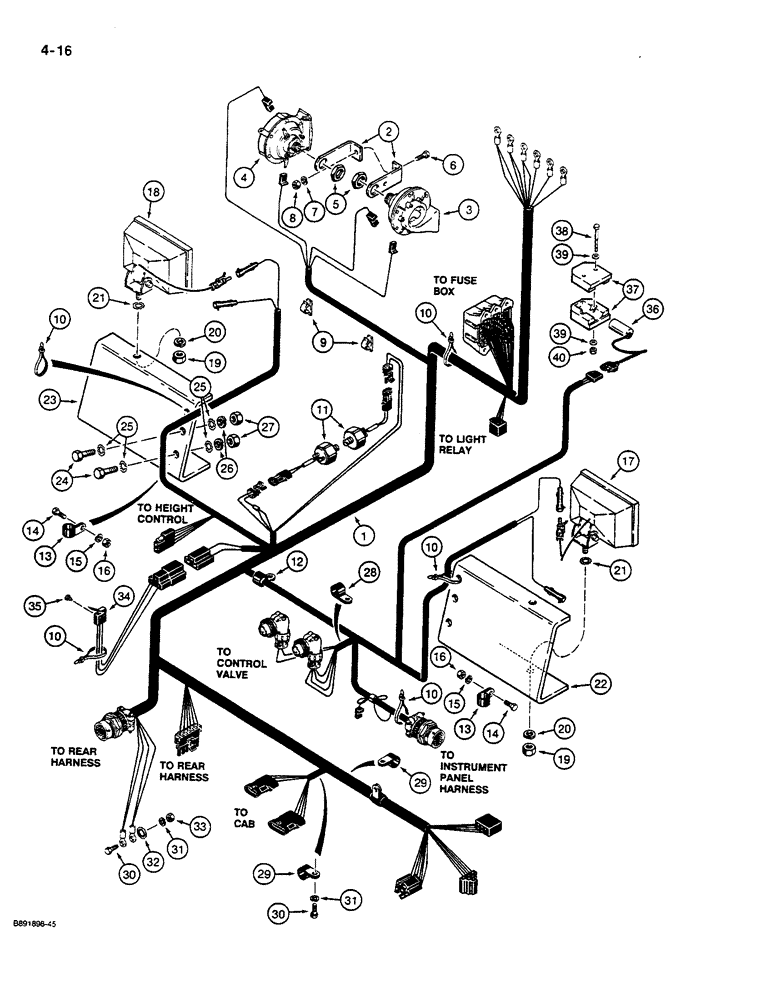

Запчасти Case W14C (4-16) - FRONT HARNESS - CONTROL VALVE, LAMPS, AND HORN (04) - ELECTRICAL SYSTEMS

1

L127636

HARNESS

- front

1шт.

2

L73799

BRACKET

- horn mounting

2шт.

3

L10353

HORN

- electric, 24 volt, "A" note, right-hand

1шт.

4

R40730

HORN

- electric, 24 volt, "F" note, left-hand

1шт.

5

L30866

LOCK NUT

- hex, 7/8 NC, special

2шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

9

L100659

CLIP

- harness

2шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

11

D138955

SWITCH

- declutch pressure and stop lamp

2шт.

12

51200320

CLAMP

- harness, uses existing control valve mounting plate hardware

1шт.

13

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- harness

2шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

425-106

NUT,3/8"-16, Cl 5

2шт.

17

L113373

LIGHT ASSY.

LAMP - flood, parts list Figure 4-38

2шт.

18

L113374

LIGHT

LAMP - front driving, parts list Figure 4-38

2шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2-4шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2-4шт.

21

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2-4шт.

22

L116672

BRACKET

- lamp mounting, right-hand

1шт.

23

L116673

BRACKET

- lamp mounting, left-hand

1шт.

24

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

25

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

8шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

27

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

28

49839

CLAMP

- harness, uses existing control valve mounting plate hardware

1шт.

29

49838

CLAMP

- harness

2шт.

30

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

31

492-11038

LOCK WASHER,3/8"

2шт.

32

193-72

LOCK WASHER

- lock, internal tooth, 3/8 inch

1шт.

33

425-106

NUT,3/8"-16, Cl 5

1шт.

34

A166333

SWITCH

- micro, parking brake lever

1шт.

35

187-1716

SELF-TAP SCREW,Slotted Pan Hd, #6 x 5/8"

SCREW - self-tapping, pan head, No. 6 NC x 5/8 inch

2шт.

36

R47120

SWITCH

- proximity, height control and, Serial Range: return-dig

1-2шт.

37

L117005

CLAMP

- switch mounting

2-4шт.

38

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2-4шт.

39

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x .065 inch

4-8шт.

40

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4 inch NC

2-4шт.
