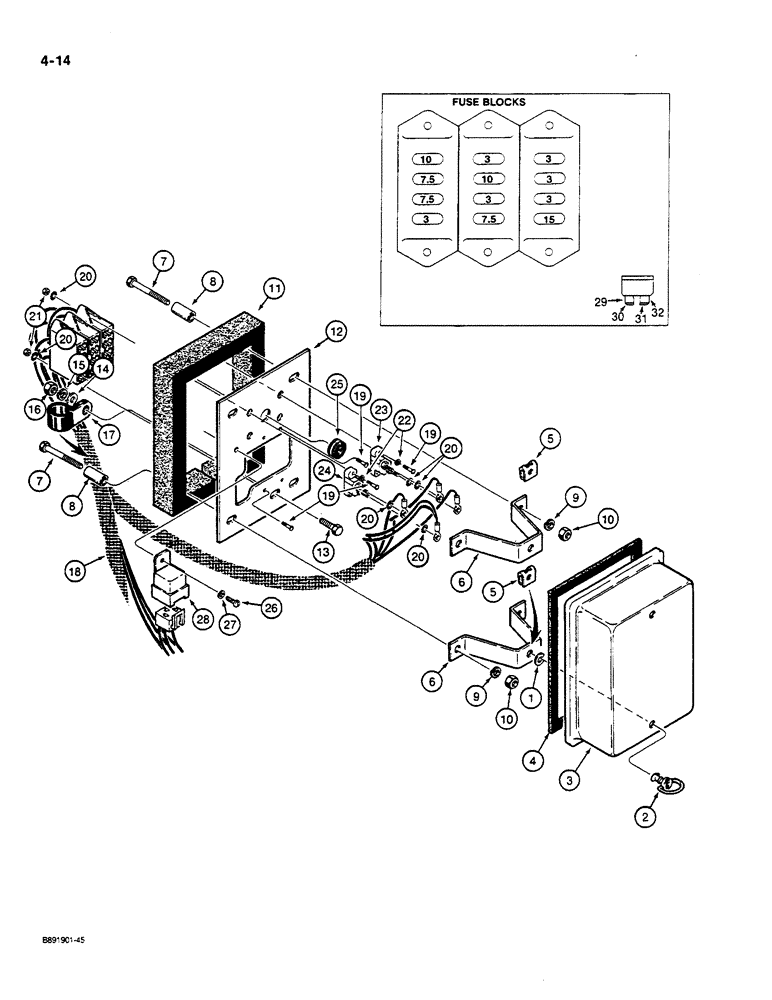

Запчасти Case W14C (4-14) - FRONT HARNESS - FUSE BOX (04) - ELECTRICAL SYSTEMS

1

L103349

WASHER

RETAINER - split ring

2шт.

2

L103347

ANCHOR

FASTENER - cover

2шт.

3

L108029

COVER

- electrical components

1шт.

4

L108046

GASKET

- cover

1шт.

5

A36042

CLIP

RECEPTACLE - fastener

2шт.

6

L108052

BRACKET

MOUNT - cover

2шт.

7

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

4шт.

8

D40925

SPACER

- bolt

4шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

11

L107680

GASKET

- panel

1шт.

12

L118430

PANEL

- electrical components

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

14

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

R14668

CLAMP

- harness

1шт.

18

L127636

HARNESS

- front

1шт.

19

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- pan head slotted, No. 10 NC x 3/4 inch

8шт.

20

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

8шт.

21

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 NC

4шт.

22

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

23

L115178

BREAKER

CIRCUIT BREAKER - 10 amp

1шт.

24

L115179

BREAKER

CIRCUIT BREAKER - 20 amp

1шт.

25

D121047

GROMMET

- panel, fuse

1шт.

26

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- pan head slotted, No. 10 NC x 3/4 inch

1шт.

27

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

28

L118429

RELAY

- lamps

1шт.

29

A149796

FUSE

- 3 amp

6шт.

30

A149799

FUSE

- 7.5 amp

3шт.

31

A149800

FUSE,10 Amp

- 10 amp

1шт.

32

A149801

FUSE,Lt Blue, 15 Amp

- 15 amp

1шт.
