Запчасти Case W14C (4-10) - OPTIONAL GAUGES AND CIGAR LIGHTER (04) - ELECTRICAL SYSTEMS

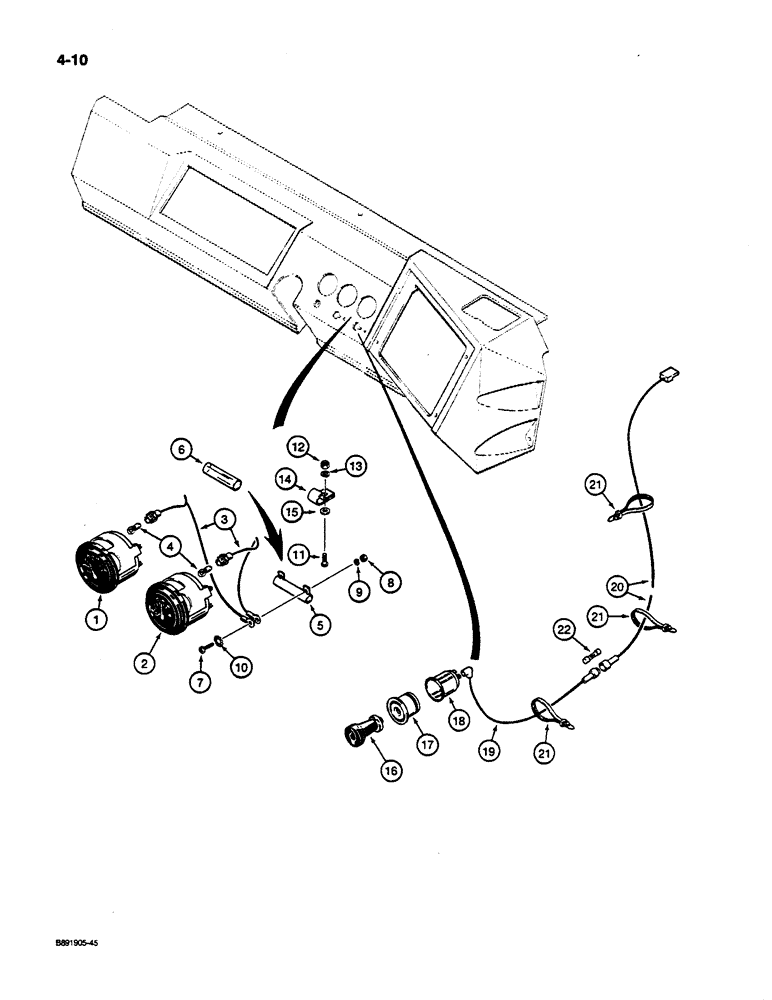

Схема запчастей Case W14C - (4-10) - OPTIONAL GAUGES AND CIGAR LIGHTER (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

L127114

VOLTMETER

GAUGE - voltmeter

1шт.

2

L127113

GAUGE

- engine oil pressure

1шт.

3

L115038

SOCKET

- lamp

2шт.

4

B50213

BULB

- gauge, No. 53

2шт.

5

L103985

RESISTOR

- 39 ohm, 12 watt

1шт.

6

L126784

HEATER TUBE,0.19" ID x 1.5" L

TUBE - heat shrink, resistor

2шт.

7

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

- machine, pan head slotted, No. 8 NC x 3/8 inch

2шт.

8

129-16

NUT,#8-32

2шт.

9

87812

LOCK WASHER,#8

Washer, Lock, #8

2шт.

10

193-119

LOCK WASHER,Ext-Int Tooth, #8

WASHER - internal-external tooth lock, No. 8

2шт.

11

182-571

SCREW,Cross Pan Hd, #6-32 x 1/2"

- pan, Phillips, No. 6 NC x 1/2 inch

1шт.

12

129-15

NUT,#6-32

1шт.

13

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

1шт.

14

L73415

CLAMP

- resistor

1шт.

15

195-85

WASHER,#6

- flat, 5/32 x 3/8 x 1/16 inch

1шт.

L111915

CIGAR LIGHTER

LIGHTER - cigar, 24V

1шт.

16

N9430

UNIT

HANDLE - pop-out, cigar lighter

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - cigar lighter

1шт.

18

N9429

ELEMENT

SHIELD - element, cigar lighter

1шт.

19

NSS

NOT SOLD SEPARAT

WIRE - cigar, Serial Range: lighter-fuse

1шт.

20

L116022

HARNESS

WIRE - cigar lighter, fuse to front harness

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

22

223-20

FUSE,20 Amp, Type SFE

- 20 amp

1шт.

Выбрано товаров: 23
