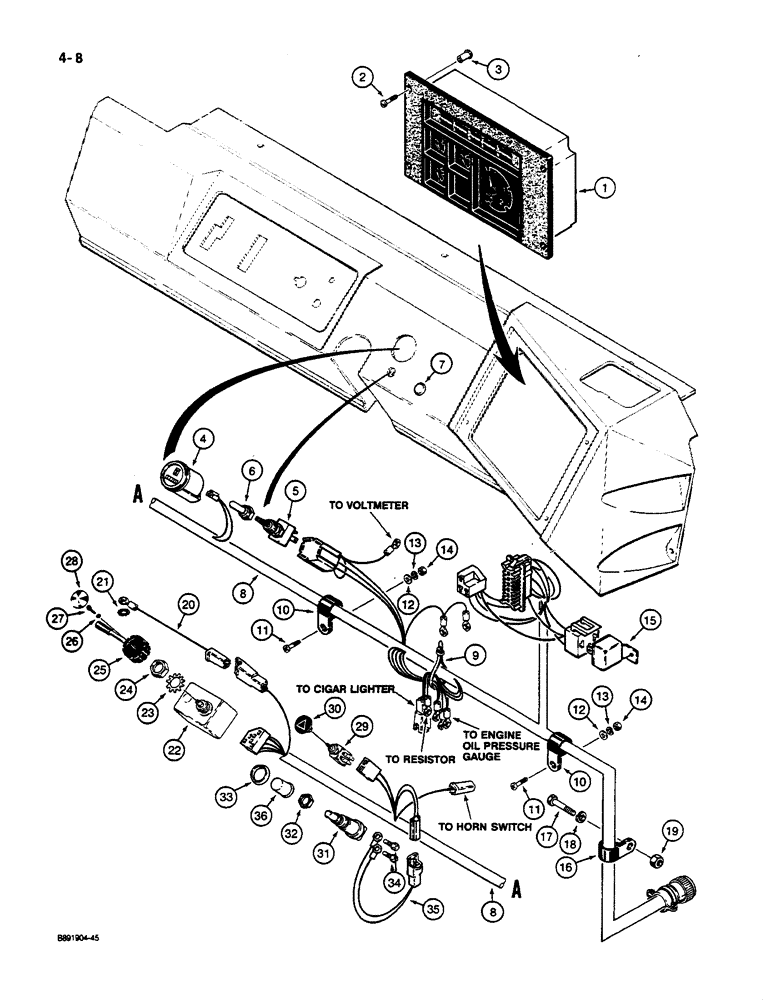

Запчасти Case W14C (4-08) - INSTRUMENT PANEL AND WIRING (04) - ELECTRICAL SYSTEMS

1

L127709

CLUSTER

- instrument panel, parts list Figure 4-13

1шт.

2

182-570

SCREW,Cross Pan Hd, #10-32 x 1"

- machine, pan Phillips head, No. 10 NF x 1 inch

4шт.

3

L60362

RING NUT

- No. 10, special

4шт.

4

20-2018T2

HOURMETER

- instrument panel (replaces L118551)

1шт.

Ref. item 4 L118551 subs to 20-2018T2 and the terminal set up is different. Remove the female spade terminals from the plastic plug and simply push them on to the male terminals on the new hourmeter. Both hourmeters identify the + terminal so be sure the wires are placed correctly.

1шт.

5

D75360

SWITCH

- test, hydraulic oil filter and air filter

1шт.

6

L101998

BOOT

COVER - switch protector, used on models with canopy only

1шт.

7

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

8

L127635

HARNESS

- instrument panel

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

10

V34264

CLAMP,3/4", Insul, 1/4" Bolt

- harness

2шт.

11

182-570

SCREW,Cross Pan Hd, #10-32 x 1"

- machine, pan Phillips head, No. 10 NF x 1 inch

2шт.

12

195-133

WASHER,5/16" x 3/4" x .065"

- flat, 5/16 x 3/4 x 1/16 inch, Teflon

2шт.

13

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

14

225-14110

NUT,#10-24

Machine screw #10-24

2шт.

15

L118429

RELAY

- 24 volt, parking brake

1шт.

16

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- harness

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

20

L115040

CABLE

- ground, instrument panel

1шт.

21

193-72

LOCK WASHER

- internal-external tooth lock, 3/8 inch

1шт.

22

L127265

SWITCH

- turn signal and flasher

1шт.

23

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

24

D91352

JAM NUT

- jam, 3/4 inch NS

1шт.

25

A141736

KNOB

- turn signal and flasher

1шт.

26

193-3

LOCK WASHER,Int Tooth, #5

WASHER - external tooth lock, No. 5

1шт.

27

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

- machine, pan head slotted, No. 5 NC x 1/2 inch

1шт.

28

A160035

PLATE

- insert, flasher switch

1шт.

29

D74330

SWITCH

- flasher

1шт.

30

D88134

KNOB

- flasher

1шт.

L72776

SWITCH

ASSEMBLY - cold start

1шт.

31

NSS

NOT SOLD SEPARAT

SWITCH - cold start

1шт.

32

H275784

JAM NUT

- hex, jam, special

1шт.

33

D73741

NUT

- special

1шт.

34

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

- machine, round head slotted, No. 8 NC x 1/4 inch

1шт.

35

L115041

CABLE

WIRE -, Serial Range: switch-harness

1шт.

36

L60490

BUTTON

BOOT - switch

1шт.
