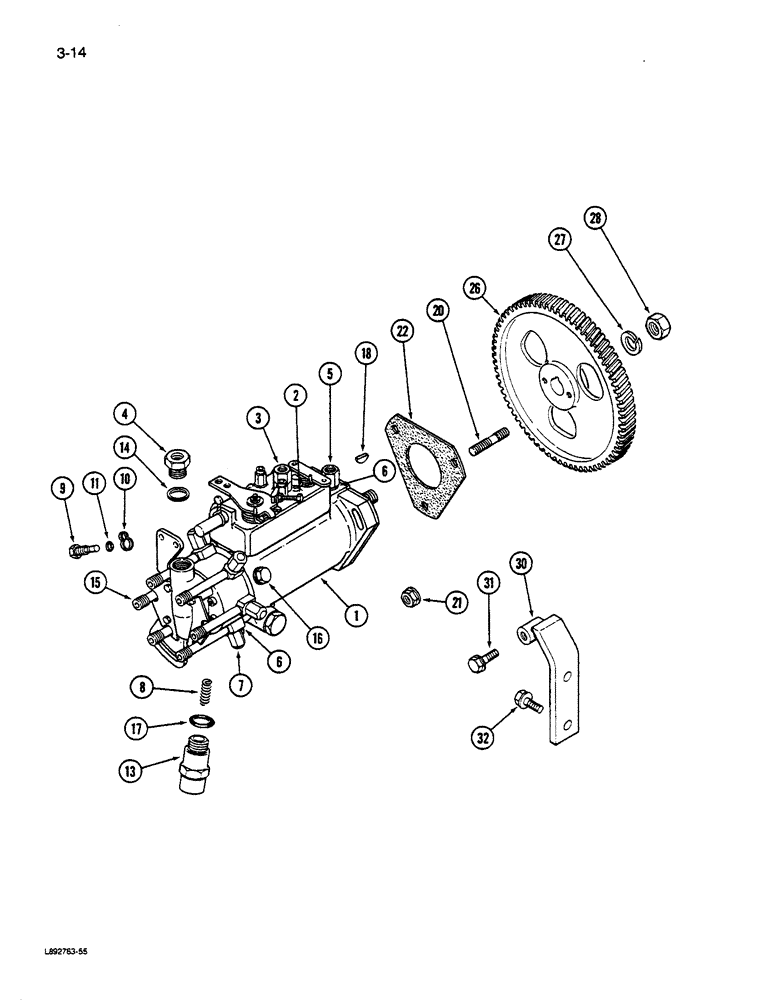

Запчасти Case W14C (3-14) - FUEL INJECTION PUMP AND DRIVE, 6-590 ENGINE (03) - FUEL SYSTEM

1

J908690

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection

1шт.

1

JR908690

REMAN-INJECTION PUMP

Pump Assembly, Fuel Injection, Remanufactured

1шт.

1

JC908690

CORE-INJECTION PUMP

Return Part Number, injection pump (Use this number to return pump core for credit)

1шт.

1

JR908440

REMAN-INJECTION PUMP

Remanufactured Injection Pump

1шт.

1

JC908440

CORE-INJECTION PUMP

Return Part Number

1шт.

2

J904637

SET SCREW

SCREW - idle set

1шт.

3

J904640

VENT

ORIFICE - bleed

1шт.

4

J904641

FITTING

FITTING - inlet

1шт.

5

J904643

FITTING

FITTING - return

1шт.

6

J904644

WASHER

WASHER - sealing (Package of 10)

13шт.

7

J904646

BANJO BOLT

BOLT - banjo

1шт.

8

J904777

SPRING

SPRING - solenoid

1шт.

9

J904778

BOLT

SCREW - timing lock

1шт.

10

J904779

WASHER

WASHER - timing lock

1шт.

11

J904780

SEAL

SEAL - timing

1шт.

13

J905125

SOLENOID

SOLENOID - fuel

1шт.

14

K962748

WASHER

WASHER - inlet fitting (Copper)

1шт.

15

K962755

ADAPTER

FITTING - banjo

1шт.

16

K963867

SCREW

SCREW - bleed, pump head

1шт.

17

J904635

O-RING

O-RING - solenoid

1шт.

18

J902332

KEY

KEY - gear retaining

1шт.

20

J902501

STUD

STUD - pump mounting, 8 mm - 1.25 x 48 mm

3шт.

21

J900589

NUT

NUT - flanged hex, 8 mm

3шт.

22

J914389

GASKET

GASKET - pump mounting

1шт.

26

J911331

GEAR

GEAR - drive, pump

1шт.

27

92-9

BEARING WASHER,9/16"

LOCK WASHER, 9/16"

1шт.

28

A77444

JAM NUT

NUT - hex jam, 9/16 inch NF

1шт.

30

J905387

BRACE

BRACE - injection pump

1шт.

31

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

BOLT - flanged hex, 8 mm - 1.25 x 20 mm

1шт.

32

J902114

FLANGE BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

BOLT - flanged hex, 8 mm - 1.25 x 30 mm

2шт.
