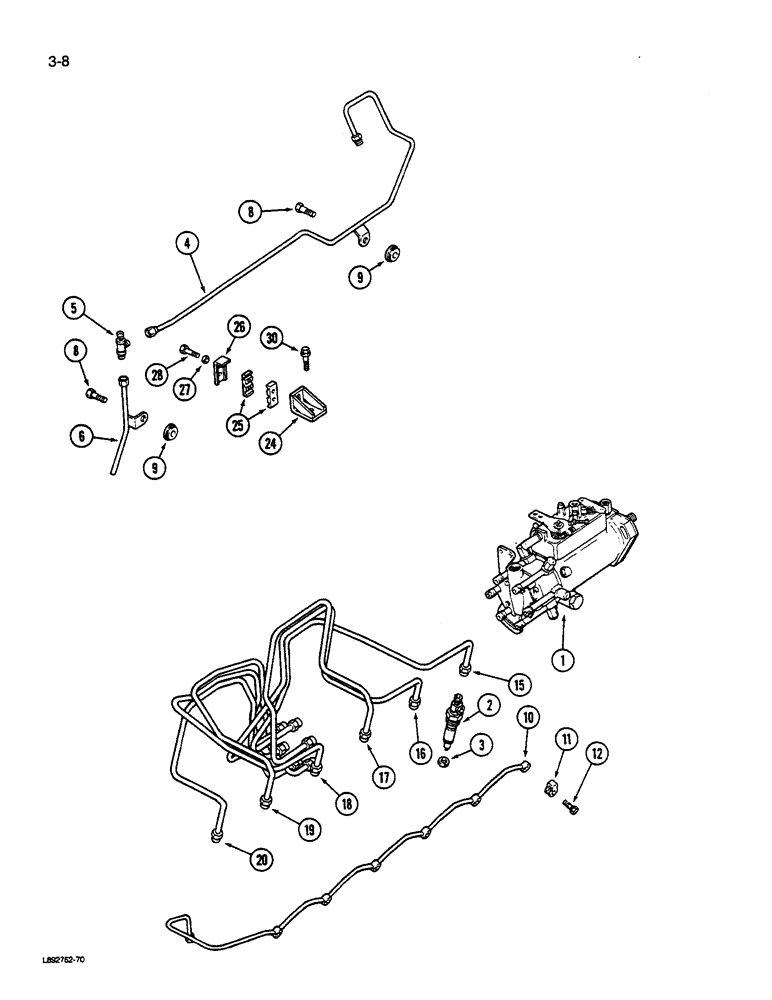

Запчасти Case W14C (3-08) - FUEL INJECTION SYSTEM, 6-590 ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-14)

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See Figure 3-19)

6шт.

3

J900808

SEAL

- injector

6шт.

4

J905709

FUEL TUBE

TUBE ASSEMBLY - fuel drain

1шт.

5

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Union, 7/16"-24 thd (Remove and discard hex nuts and sleeves at assembly)

1шт.

6

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return

1шт.

8

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

2шт.

9

J900267

SEAL

ASSEMBLY - cover bolt

2шт.

10

J909696

TUBE

TUBE ASSEMBLY - manifold, fuel drain

1шт.

11

J903380

SEAL

- connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

15

J914796

FUEL TUBE

TUBE ASSEMBLY - injector, No. 1 cylinder

1шт.

16

J914798

FUEL TUBE

TUBE ASSEMBLY - injector, No 2 cylinder

1шт.

17

J914800

FUEL TUBE

TUBE ASSEMBLY - injector, No. 3 cylinder

1шт.

18

J914802

FUEL TUBE

TUBE ASSEMBLY - injector, No. 4 cylinder

1шт.

19

J914804

FUEL TUBE

TUBE ASSEMBLY - injector, No 5 cylinder

1шт.

20

J914806

FUEL TUBE

TUBE ASSEMBLY - injector, No. 6 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube

1шт.

24

NSS

NOT SOLD SEPARAT

BRACKET - fuel tube

1шт.

25

NSS

NOT SOLD SEPARAT

ISOLATOR - fuel tube

2шт.

26

NSS

NOT SOLD SEPARAT

PLATE - clamp

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - flat, 5 mm

2шт.

28

NSS

NOT SOLD SEPARAT

BOLT - hex

2шт.

30

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

- flanged hex

2шт.
