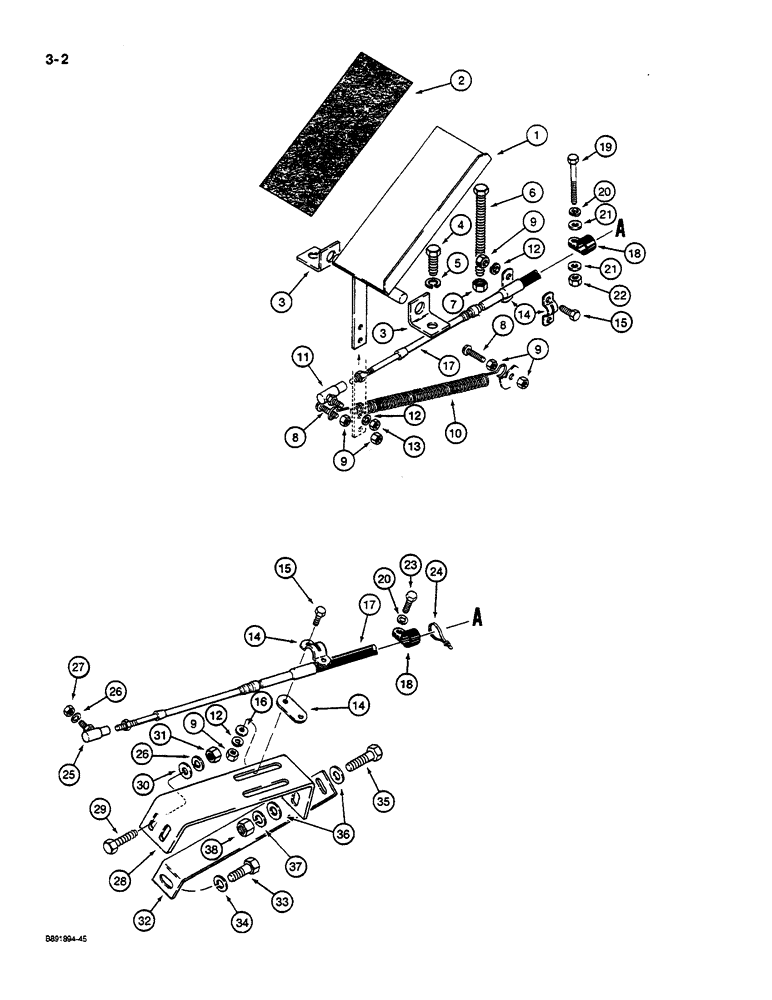

Запчасти Case W14C (3-02) - FOOT THROTTLE CONTROL (03) - FUEL SYSTEM

1

L106011

PEDAL

- accelerator, foot

1шт.

2

D55216

PAD,2" x 9"

PAD - accelerator pedal

1шт.

3

L73462

BRACKET

MOUNT - accelerator pedal

2шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

5

492-11038

LOCK WASHER,3/8"

2шт.

6

113-2286

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Hex 3/8"-16 x 4", G5 (Replaces 113-202)

1шт.

7

425-106

NUT,3/8"-16, Cl 5

1шт.

8

182-578

SCREW,Slotted Pan Hd, #10-24 x 1"

- machine, pan head slotted, No. 10 NC x 1 inch

2шт.

9

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 NC

8шт.

10

L106237

SPRING

- accelerator return

1шт.

11

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball, cable

1шт.

12

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

13

129-667

NUT,#10-32, LH

1шт.

14

L12441

CLAMP

- two-piece, throttle control cable

2шт.

15

163-13

SCREW,Hex, #10 - 24 x 3/4"

- machine, hex, No. 10 NC x 3/4 inch

4шт.

16

495-21025

WASHER

- flat, 1/4 x 9/16 x 3/64 inch

2шт.

17

L111952

CABLE

- throttle control

1шт.

18

49839

CLAMP

- cable, throttle control

2шт.

19

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

1шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

21

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

23

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.75 x 20 mm

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

A76747

BALL JOINT,#10 -32 x 7/8" L

- ball, attaches to fuel injection pump lever

1шт.

26

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

27

425-114

NUT,1/4"-28, G5

1шт.

28

L116753

BRACKET

- accelerator cable mounting

1шт.

29

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex, 1/4 NC x 7/8 inch

2шт.

30

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

31

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

32

L116754

BRACE

- accelerator cable mounting

1шт.

33

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 30 mm

1шт.

34

892-1108

LOCK WASHER,M8

1шт.

35

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

36

D41740

WASHER

- special

2шт.

37

492-11038

LOCK WASHER,3/8"

1шт.

38

425-106

NUT,3/8"-16, Cl 5

1шт.
