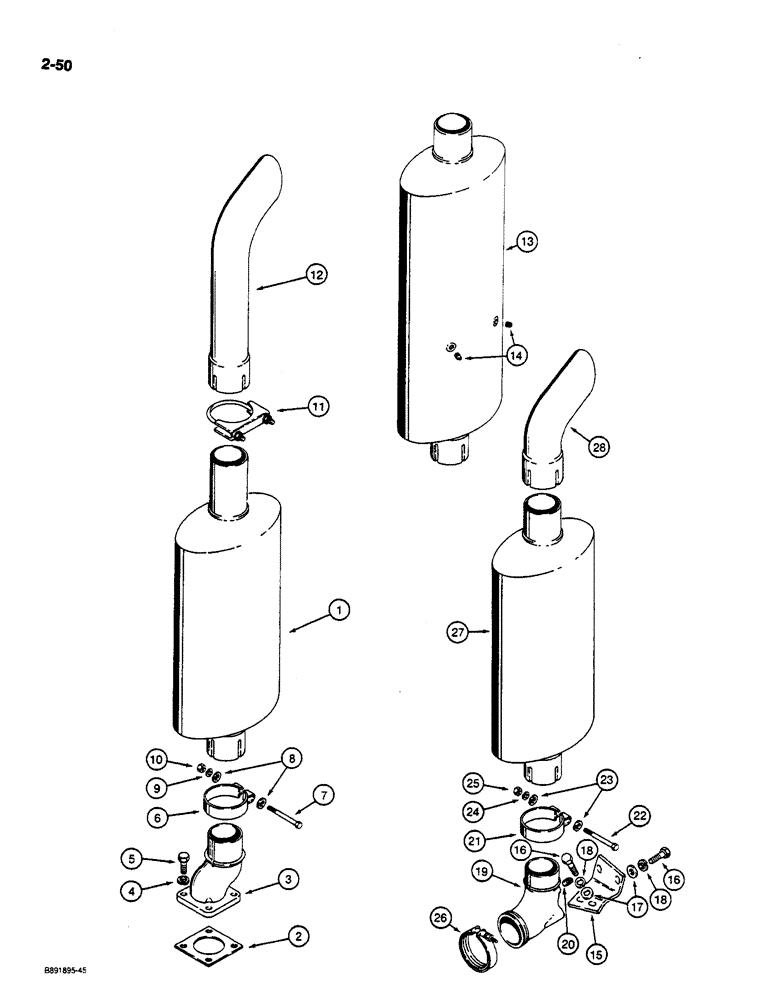

Запчасти Case W14C (2-50) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

A171542

MUFFLER

- engine exhaust, standard

1шт.

2

A170151

MANIFOLD GASKET

- manifold to adapter, standard muffler

1шт.

3

A171507

ADAPTER

- muffler, standard

1шт.

4

892-11010

LOCK WASHER,M10

Standard muffler M10

4шт.

5

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

Standard muffler Hex, M10 x 25, 8.8, Full Thd

4шт.

6

R27691

CLAMP

- muffler, standard

1шт.

7

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch, muffler clamp, standard

1шт.

8

D41740

WASHER

- special, muffler clamp, standard

2шт.

9

492-11038

LOCK WASHER,3/8"

standard muffler 3/8"

1шт.

10

425-106

NUT,3/8"-16, Cl 5

Standard muffler 3/8"-16, G5

1шт.

11

L100055

CLAMP

- exhaust pipe, includes hardware, standard muffler

1шт.

12

A172182

PIPE, EXHAUST SYSTEM

EXHAUST PIPE - muffler, 31-1/2 inch long, standard

1шт.

13

A171107

MUFFLER

- spark arrester

1шт.

14

217-77

PLUG

- square head, 3/8 inch PT, spark arrester muffler

2шт.

15

A171823

BRACKET

- exhaust elbow, muffler for turbocharged tractors

1шт.

16

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Muffler for Turbocharged Tractors Hex, M10 x 30, 8.8

4шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm, Muffler for turbocharged tractors

4шт.

18

892-11010

LOCK WASHER,M10

Muffler for turbocharged tractors M10

4шт.

19

A173623

ELBOW

- turbocharger exhaust, muffler for tractors

1шт.

20

221-841

PLUG

- square head, 1/4 inch PT, muffler for turbocharged tractors

1шт.

21

R27691

CLAMP

- muffler for turbocharged tractors

1шт.

22

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch, muffler clamp, for turbocharged tractors

1шт.

23

D41740

WASHER

- special, muffler clamp, for turbocharged tractors

2шт.

24

492-11038

LOCK WASHER,3/8"

mufflers for turbocharged tractors 3/8"

1шт.

25

425-106

NUT,3/8"-16, Cl 5

Mufflers for turbocharged tractors 3/8"-16, G5

1шт.

26

A170467

CLAMP,72mm ID

- turbocharger to elbow, mufflers for turbocharged tractors

1шт.

27

A171543

MUFFLER

- turbocharged tractors

1шт.

28

A160894

EXTENSION

EXHAUST PIPE - turbocharged tractors, mufflers

1шт.
