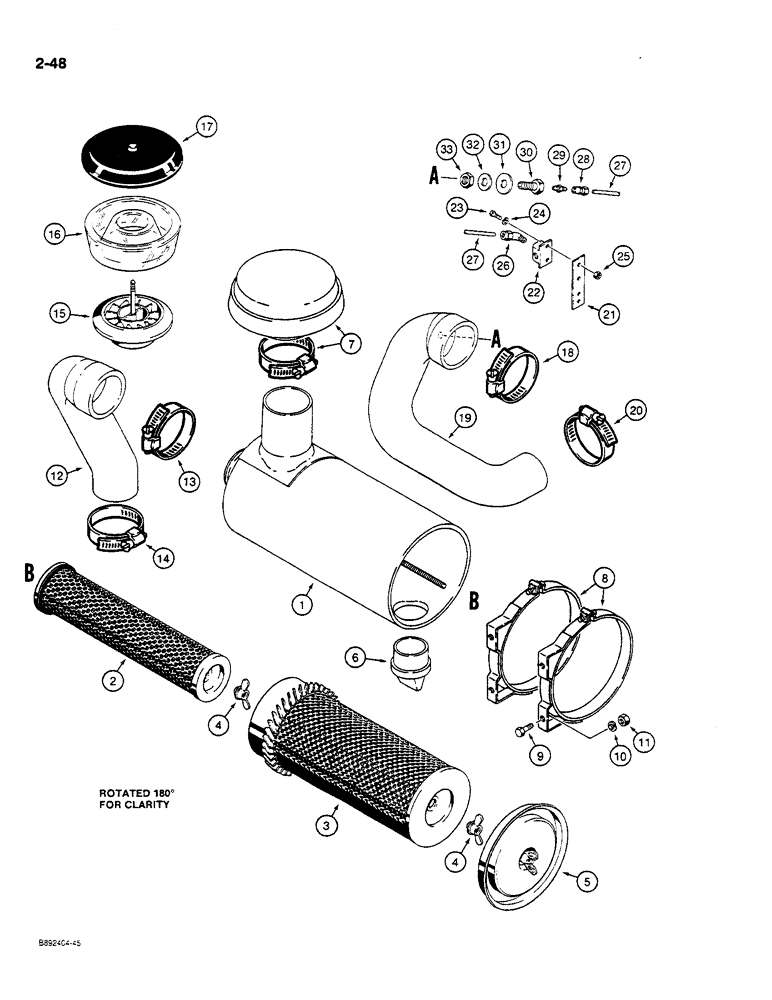

Запчасти Case W14C (2-48) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

A170967

CLEANER ASSY.

AIR CLEANER ASSEMBLY - engine

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner

1шт.

2

N8153

FILTER, ELEMENT

ELEMENT - secondary

1шт.

3

D56453

AIR CLEANER

ELEMENT - primary

1шт.

4

D78354

WING NUT

NUT - wing, element and cover

2шт.

5

N8154

COVER ASSY

COVER - end

1шт.

Ref: #5 Cover includes wingnut per print.

1шт.

6

S113982

CAP

VALVE - dust, rubber

1шт.

7

A170235

CAP

- air cleaner, includes clamp

1шт.

8

70973

BRACKET

BAND - air cleaner mounting

2шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

11

9635082

NUT,5/16" - 18, Gr 5

4шт.

12

L118438

INTAKE AIR HOSE,76.00 mm ID, 88.90 mm ID, SAE J200

- Air Cleaner to Engine 76.00 mm ID, 88.90 mm ID, SAE J200

1шт.

13

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - adj, 3-9/16 to 4-1/2 inch dia

1шт.

14

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - adj, 3-1/16 to 4 inch dia

1шт.

A43486

PRECLEANER

ASSEMBLY - air cleaner, grey, if used

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - precleaner

1шт.

16

277377R1

FILTER BOWL

BOWL - precleaner

1шт.

17

A42465

COVER

- precleaner

1шт.

18

L115549

CLAMP,69.85mm - 92.08mm

-, Serial Range: hose-turbocharger

1шт.

19

L124193

INTAKE AIR HOSE,76.00 mm ID, 88.90 mm ID, SAE J200

- Air Cleaner, Used on models with turbocharged engines 76.00 mm ID, 88.90 mm ID, SAE J200

1шт.

20

L116820

CLAMP,82.55mm - 104.78mm

- hose to air cleaner, used on models wit turbocharged engines

1шт.

21

L124190

CONNECTOR, ELEC

BRACKET - support, nylon tube, used on models with turbocharged engines

1шт.

22

L124192

FITTING

- special, nylon tube, see Figure 4-20, item 23, for elbow used on models without turbocharged engines

1шт.

23

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, Used on models with turbocharged engines

2шт.

24

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used on models with turbocharged engines 1/4"

2шт.

25

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, used on models wtih turbocharged engines

2шт.

26

222-5021

ELBOW UNION,90 Degree, 3/8"-24 x 1/8" NPT, Hi-seal

ELBOW - 90 degree, 3/8-24 x 1/8 inch PT, used on models with turbocharged engines

1шт.

27

D43836

TUBE

- nylon, air cleaner indicator, used on models with turbocharged engines

1шт.

28

222-5150

FITTING,3/8"-24 x 1/8" NPT, Hi-seal

ADAPTER - straight, 3/8-24 x 1/8 inch PT, used on models with turbocharged engines

1шт.

29

D36264

FITTING

ADAPTER - special, includes safety filter, used on models with turbocharged engines

1шт.

30

A170609

FITTING

ADAPTER - special, at turbocharger, used on models with turbocharged engines

1шт.

31

S107793

SEALING WASHER

WASHER - special, with rubber seal, used on models with trubocharged engines

1шт.

32

195-45

WASHER,3/4"

Used on models with turbocharged engines 3/4"

1шт.

33

131-83

NUT,3/4"-10

NUT - hex, self-locking, 3/4 inch NC, used on models with turbocharged engines

1шт.
