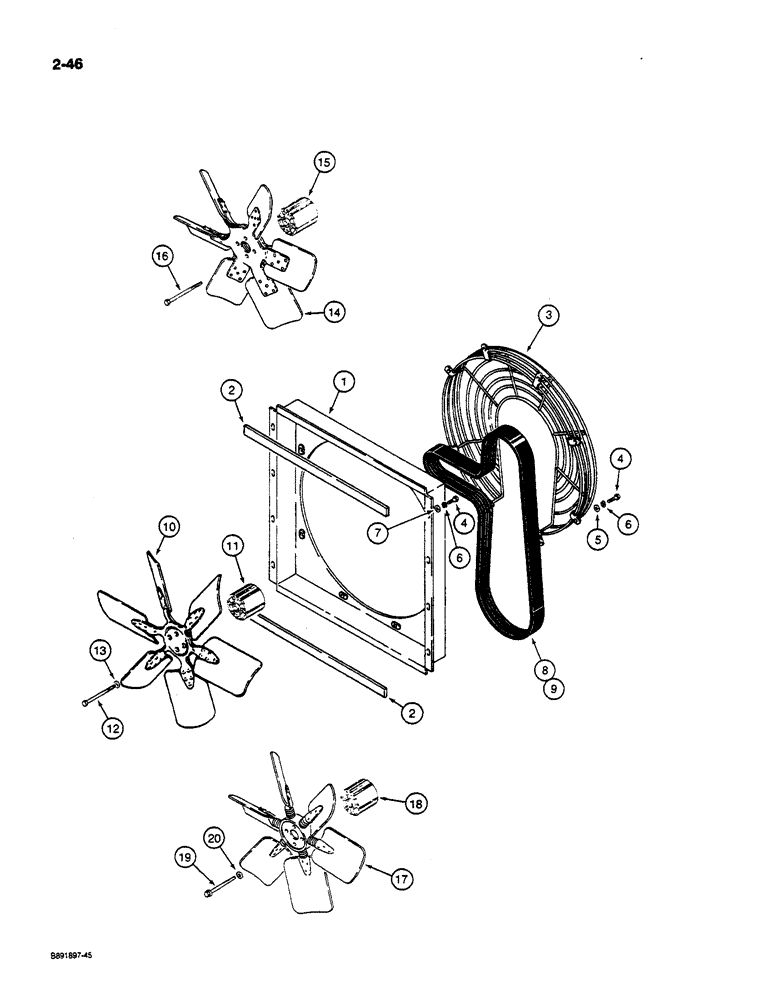

Запчасти Case W14C (2-46) - FANS AND FAN BELTS (02) - ENGINE

1

A184076

SHROUD

- fan, guard and fanbelts

1шт.

2

L113512

SEAL

SEAL - fan shroud, guard and fanbelts

2шт.

3

L116812

GUARD

- fan, shroud and fanbelts

1шт.

4

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm, shroud, guard, and fanbelts

16шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm, shroud, guard, and fanbelts

8шт.

6

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Shroud, guard, and fanbelts M8

16шт.

7

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), Shroud, Guard, and Fanbelts 5/16"

8шт.

8

J903091

V-BELT,3.56 mm W x 1422.40 mm L, 8 Ribs

Fan and 45 Amp Alternator, if Used, Shroud, Guard, and Fan Belts 3.56 mm W x 1422.40 mm L, 8 Ribs

1шт.

9

J911562

V-BELT,27.92mm W x 1460.5mm L, 8 Ribs

Fan and 65 Amp Alternator, if Used, Shroud, Guard, and Fanbelts 3.56 mm W x 1460.50 mm L, 8 Ribs

1шт.

10

A173550

FAN

- pusher

1шт.

11

A184524

SPACER

- fan, pusher

1шт.

12

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

- hex, 10 mm - 1.50 x 110 mm, class 10.9, Pusher fan

4шт.

13

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32, hardened, pusher fan

4шт.

14

A173552

FAN

- suction

1шт.

15

A184549

SPACER

- fan, suction

1шт.

16

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

- hex, 10 - 1.5 x 130 mm, class 10.9, Suction fan

4шт.

17

A173554

FAN

- reversible, used on feedlot special

1шт.

Ref: #17 Per ECN S9126-11, W14C Feedlot Special Units are not to use the A173554 Reversible Fan, A184547 Spacer and associated hardware.

1шт.

These units use only A173552 suction fan, A184549 Spacer, correct mtg. hardware and they must install L129833 grille screen. Ref: installation diagram #L6836.

1шт.

18

A173332

SPACER

- fan, reversible - used on feedlot special

1шт.

19

L127752

FLANGE BOLT

BOLT - hex, special, reversible fan - used on feedlot

4шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm, Reversible fan - used on feedlot special

4шт.
